Alphacool Core Geforce RTX 5090 Suprim + Vanguard with Backplate - Pre-order

Pre-orders open for stock expected to arrive mid March

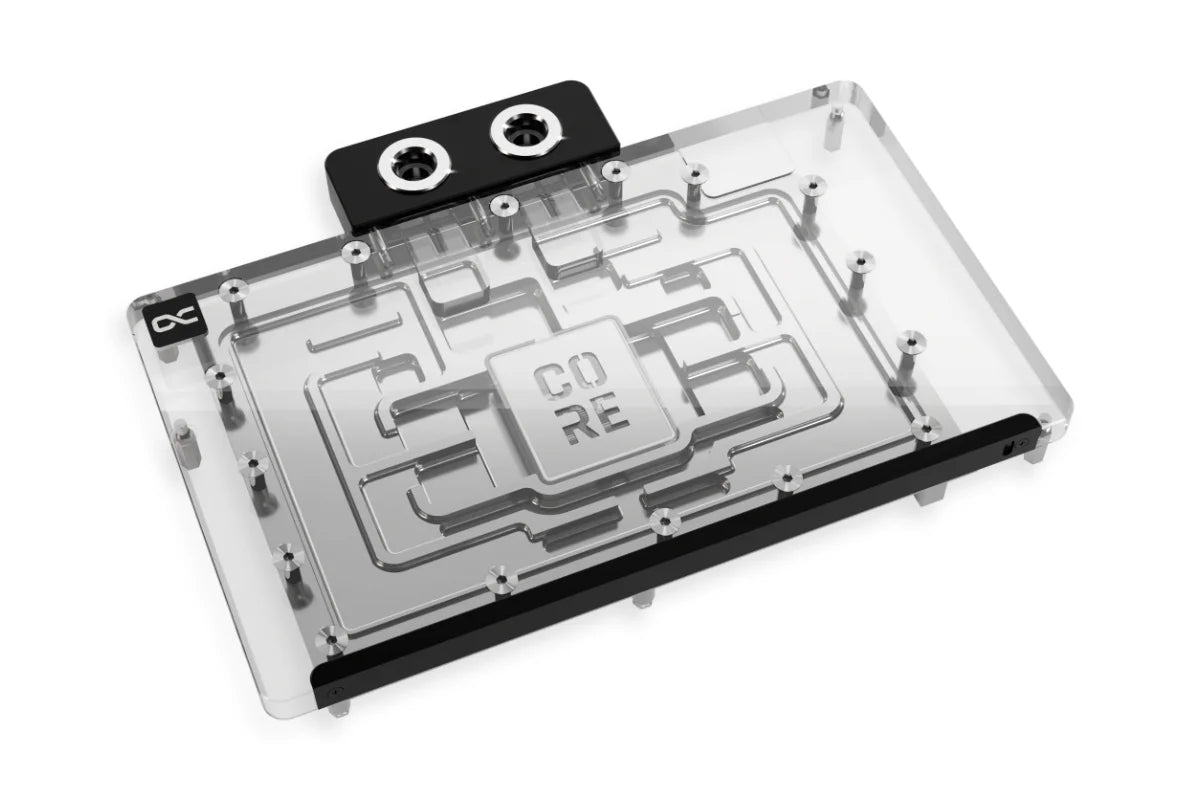

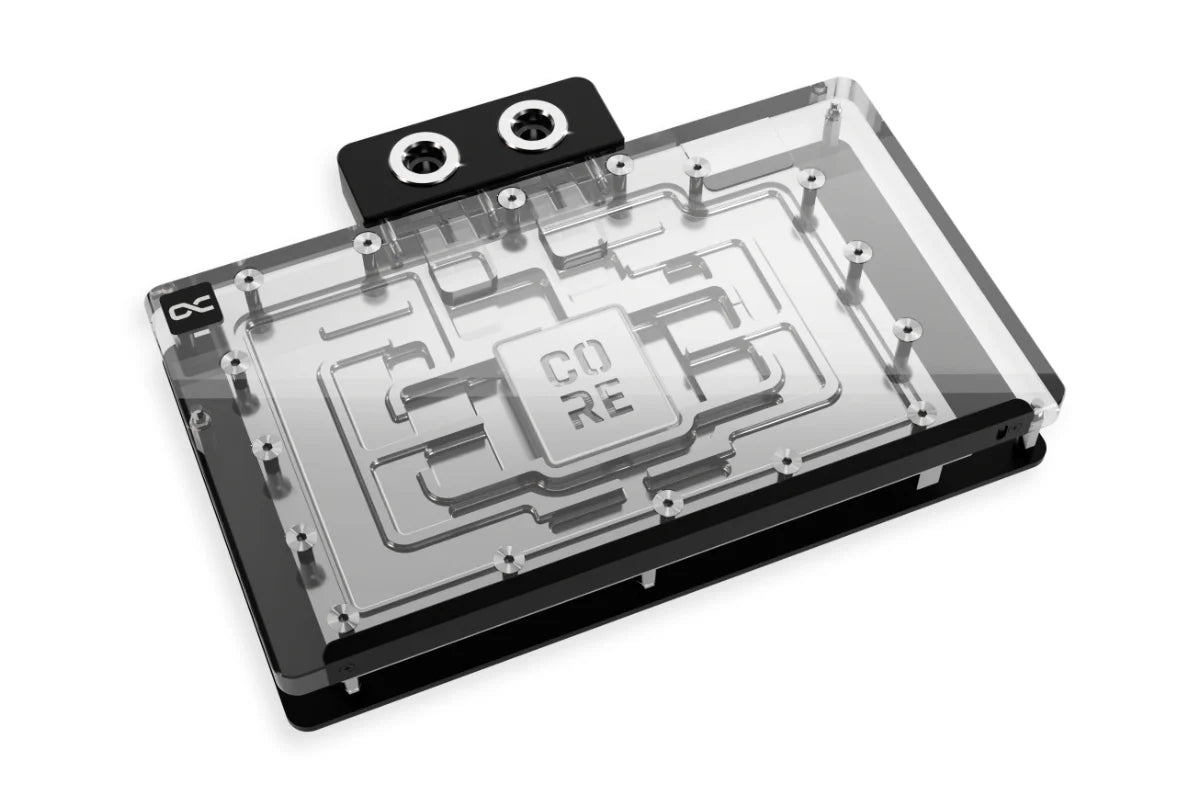

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.

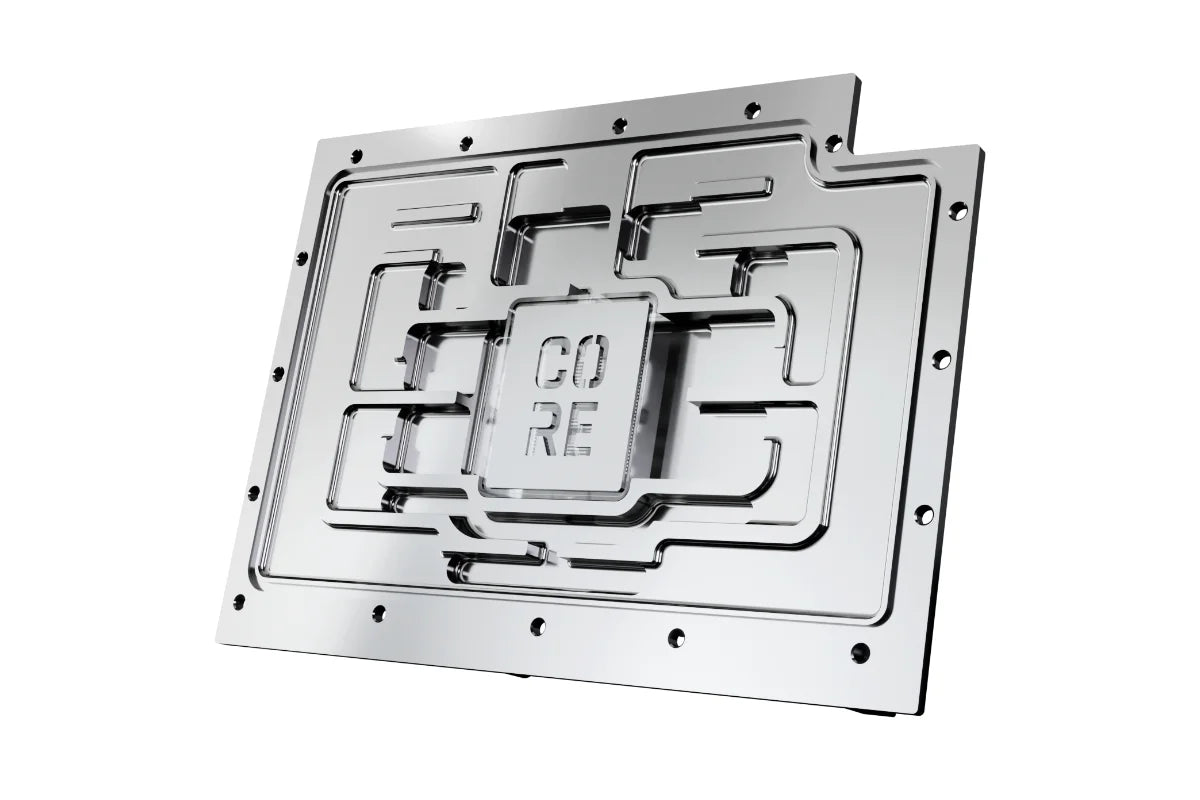

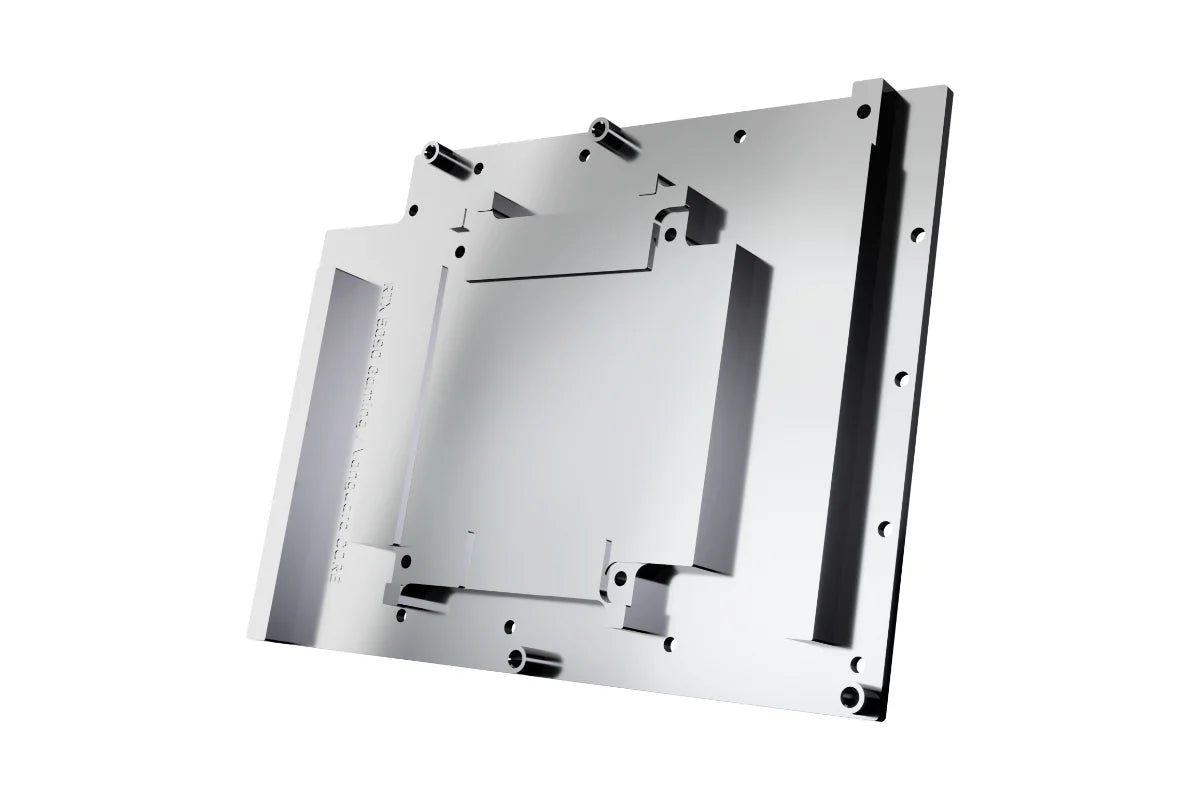

At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper cooler’s durability and provides a smoother, more radiant surface than traditional nickel plating.

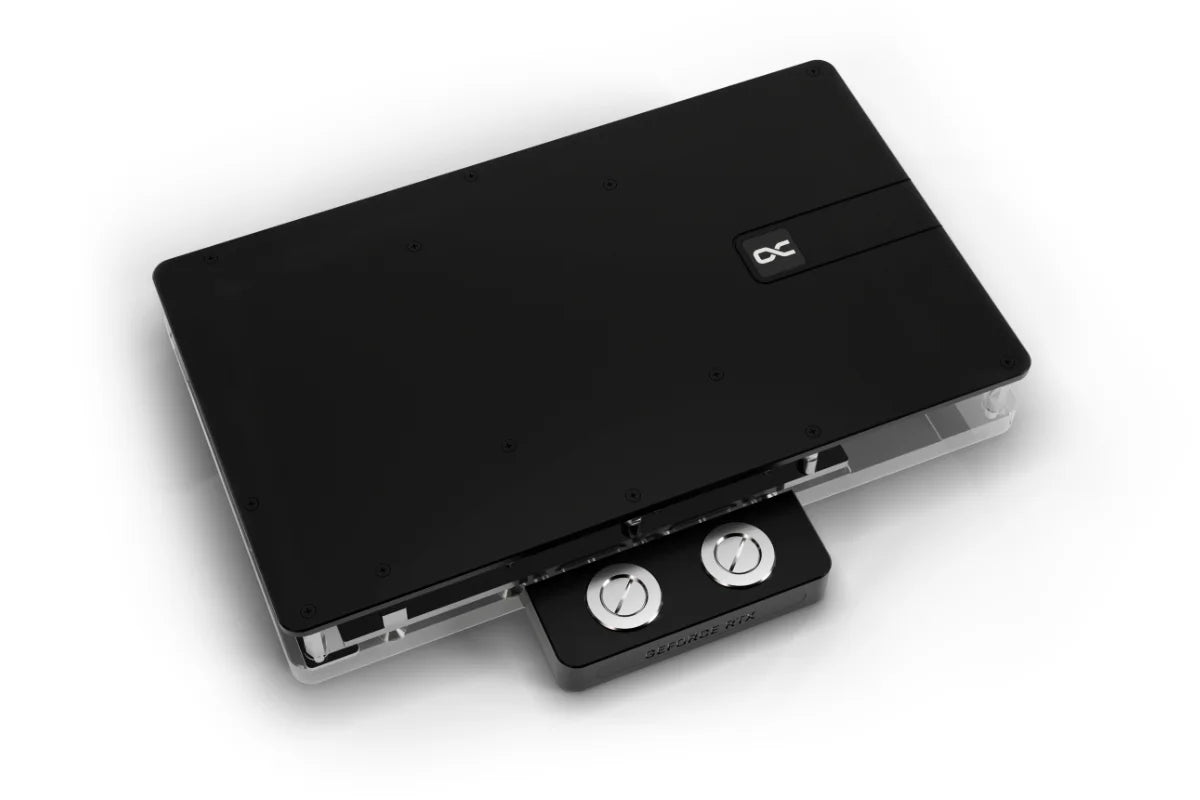

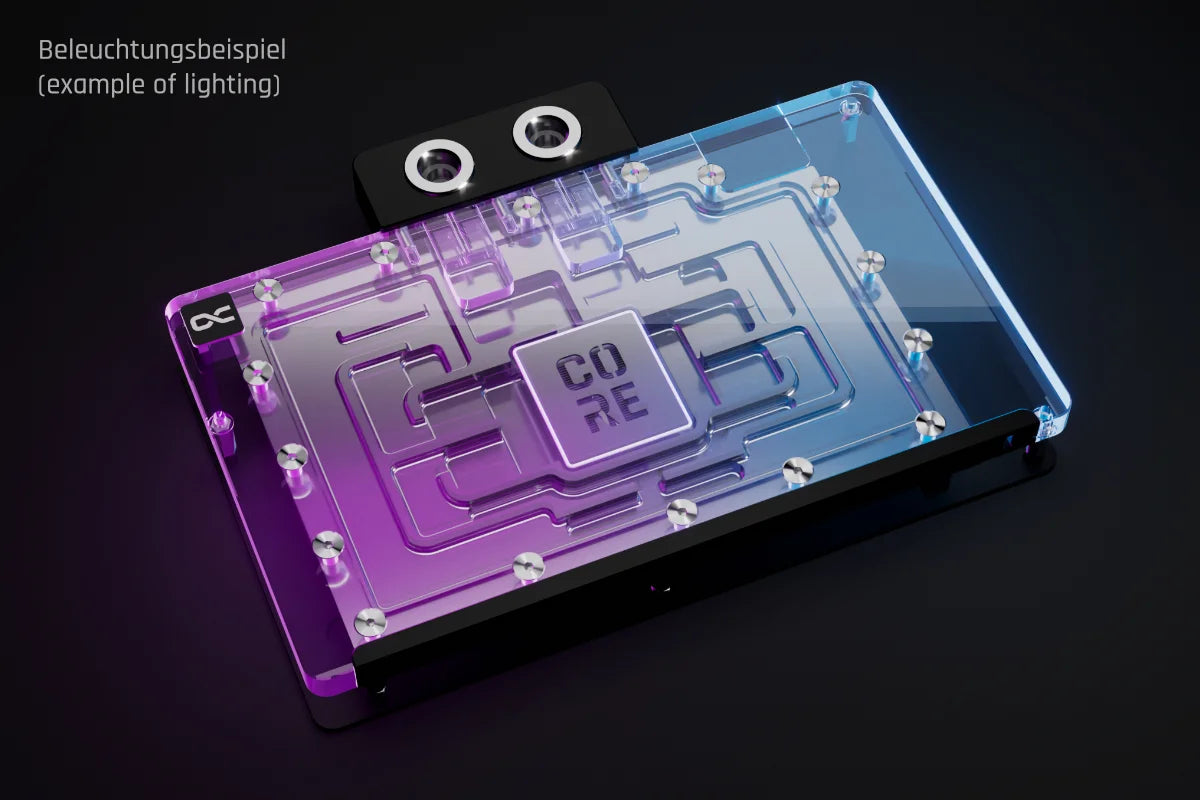

The visual design of the GPU water cooler has been slightly modified. A new highlight is the Core emblem placed above the jetplate, which emphasizes its affiliation with the Core series and visually enhances the design. The series continues to feature high-quality brass connectors that ensure optimal quality and safety. The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and uniform appearance. The acrylic, combined with aRGB lighting, allows for even and impressive illumination of the entire cooler.

The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.

Compatibility:
- MSI MSI GeForce RTX™ 5090 32G SUPRIM LIQUID SOC
- MSI MSI GeForce RTX™ 5090 32G SUPRIM SOC
- MSI MSI GeForce RTX™ 5090 32G Vanguard SOC
- MSI MSI GeForce RTX™ 5090 32G Vanguard SOC Launch Edition



Technical data cooler
Dimensions total (L x W x H)	222,40 x 160,81 x 34,12mm
Material cooler	chrome-plated copper
Material cooler top	Acrylic
Material terminal	Nylon
Material Connection thread	Brass
Max working temperature	60°C
Pressure tested	0,8 bar
Threads	4 x G1/4"
Thickness cooler bottom	3,25mm
Thickness cooling fins	0,4mm
Distance cooling fins	0,4mm
Illumination	digital aRGB LEDs
Power connector digital aRGB LEDs	3-Pin JST
Power digital aRGB LEDs	5V
Number of digital aRGB LEDs	10
Color	transparent

Technical data backplate
Dimensions (L x W x H)	222,40 x 160,81 x 6mm
Thick backplate without spacers	3mm
Material	Aluminium

Warranty: 3 years
