Alphacool HF 38 PCI slot pass through
Alphacool HF 38 PCI slot pass through
Couldn't load pickup availability
Elegantly and easily connect you external watercooling components to your internal components without having to compromise flow or cooling performance.
The Panama HF38 allows the use of G3/8" inner threads and a features a special inner geometry which sustains the full inner diameter which is usually not possible. This slot cover is extremely flexible and truly upgrades your case and cooling system!

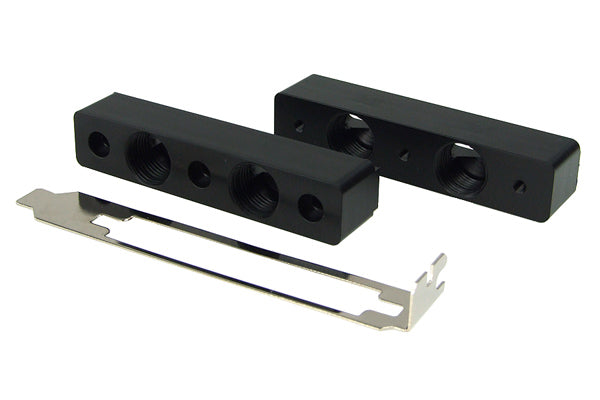

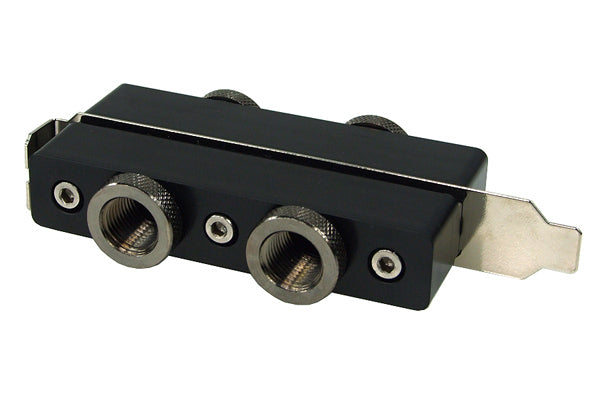

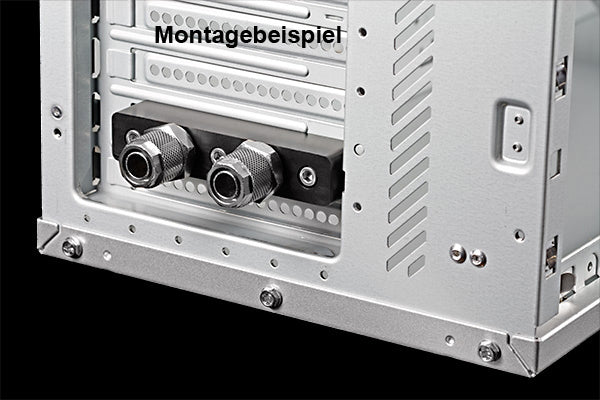

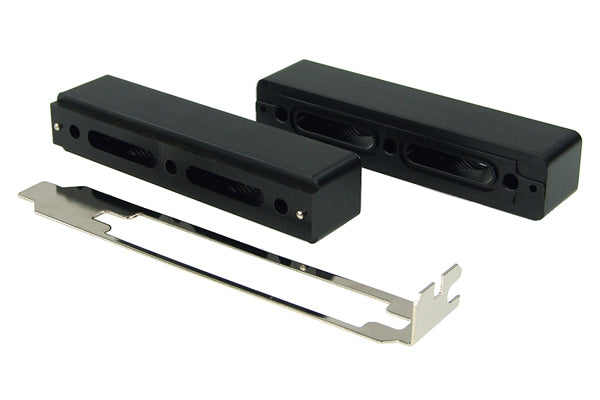

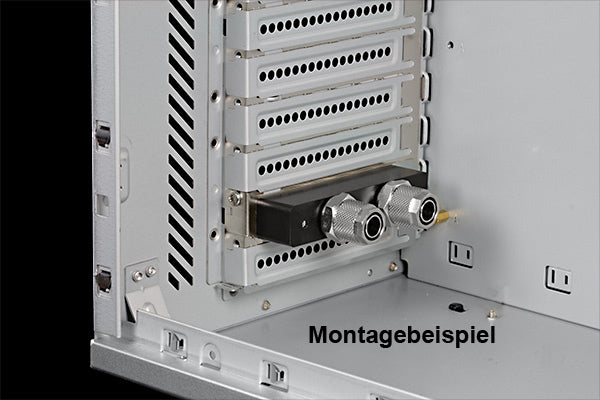

The Panama HF38 consists of three components and can be installed tool-free. Simply fixate the slot cover like and other. The inner part is then connected to the outer part and screwed together. They seal safely with two O-ring seals. Use G3/8" fittings of your choice. The neighboring slots are not obstructed by this slot cover! We recommend using the lowest free slot for easy tubing management.

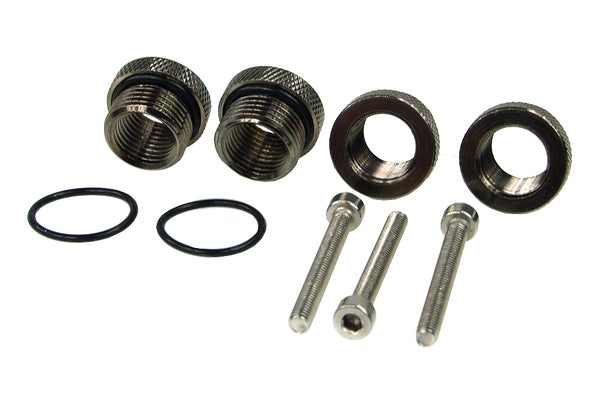

Should you not be using 3/8" connectors, low-profile adaptor pieces are included to allow use of this slot cover with G1/4" fittings.
Feature overview:
-
Maximum inner diameter: 18mm without congestions!
-
4x G3/8" inner threads
-
3-part product made from black POM and zinc-coated steel
Technical specifications:
Connection thread: 4x G 3/8" inner thread
Adaptor: 4x G 3/8" outer thread to G1/4" inner thread
Extent of delivery:
Blister- Retail- packaging, mounting material
4x G3/8" to G1/4" adaptor
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
