Alphacool

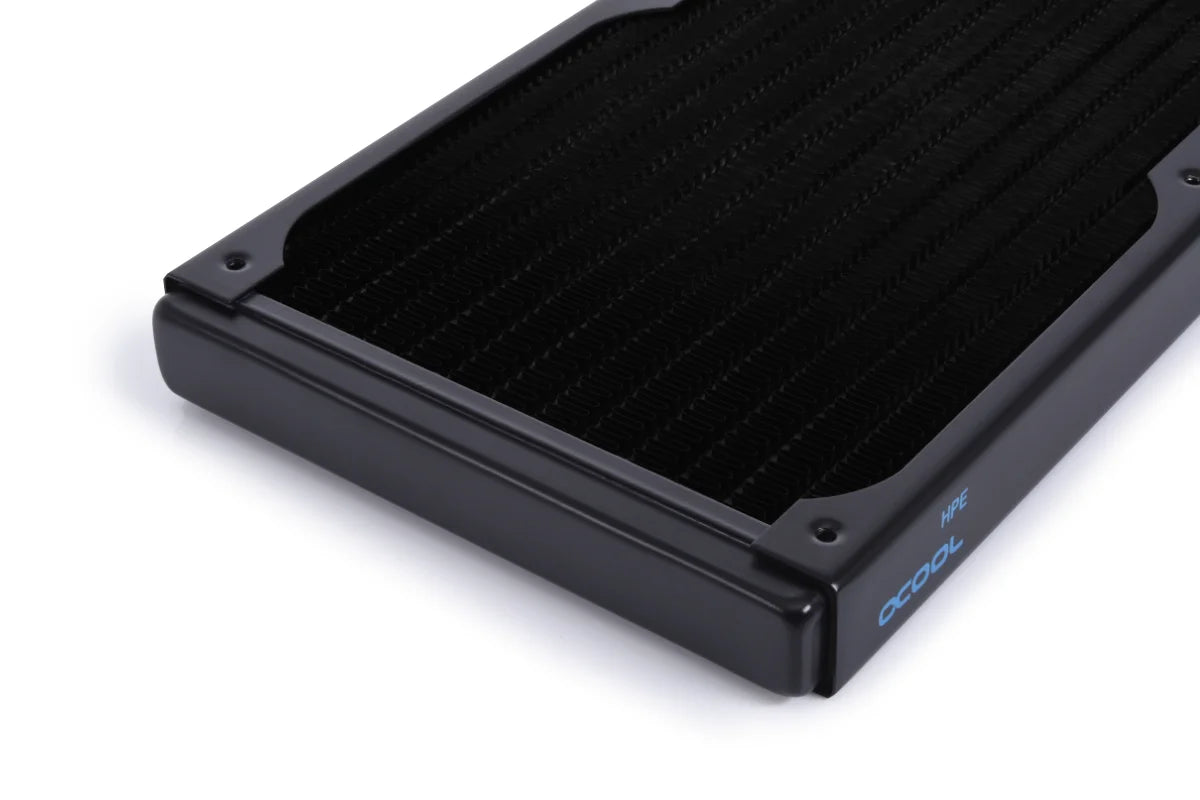

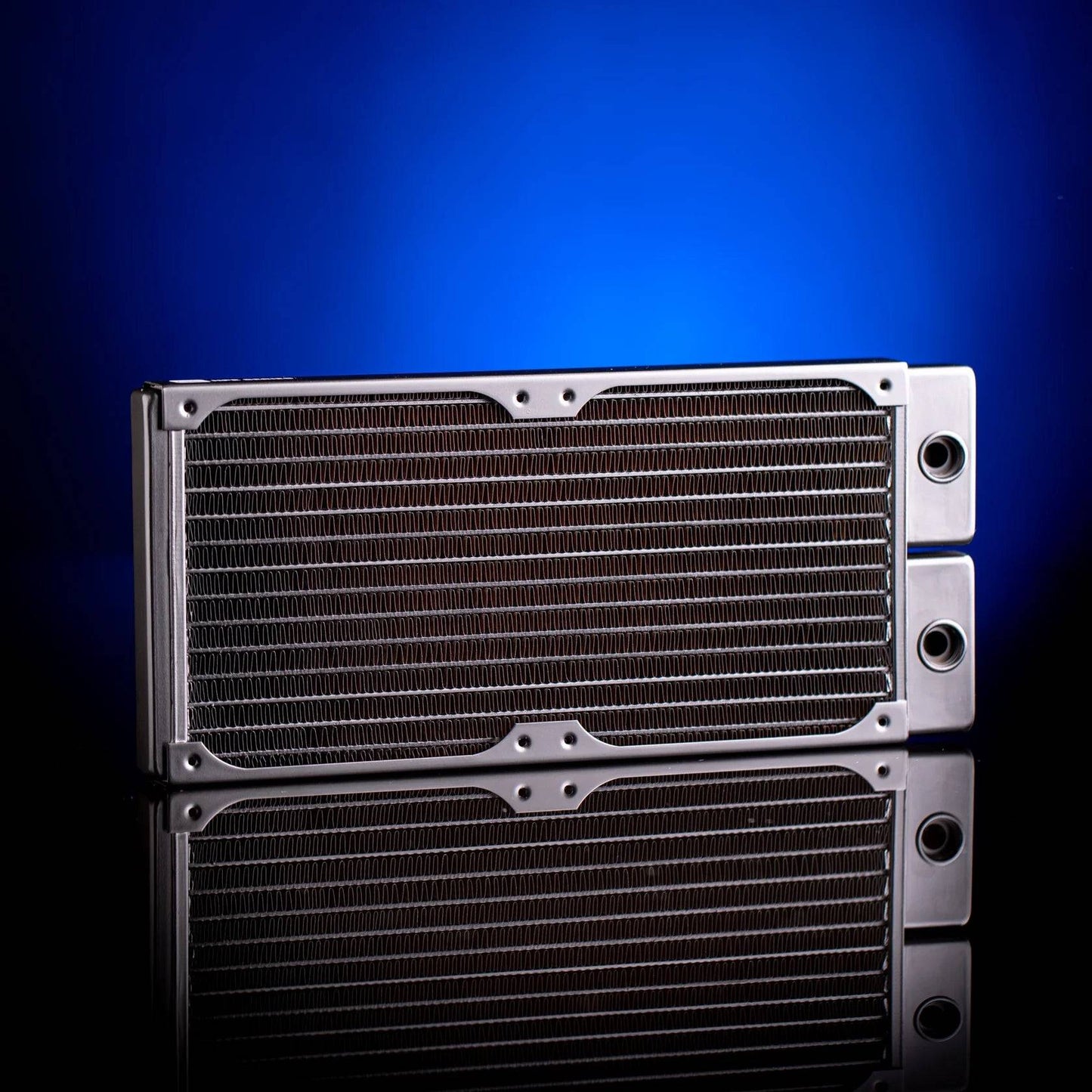

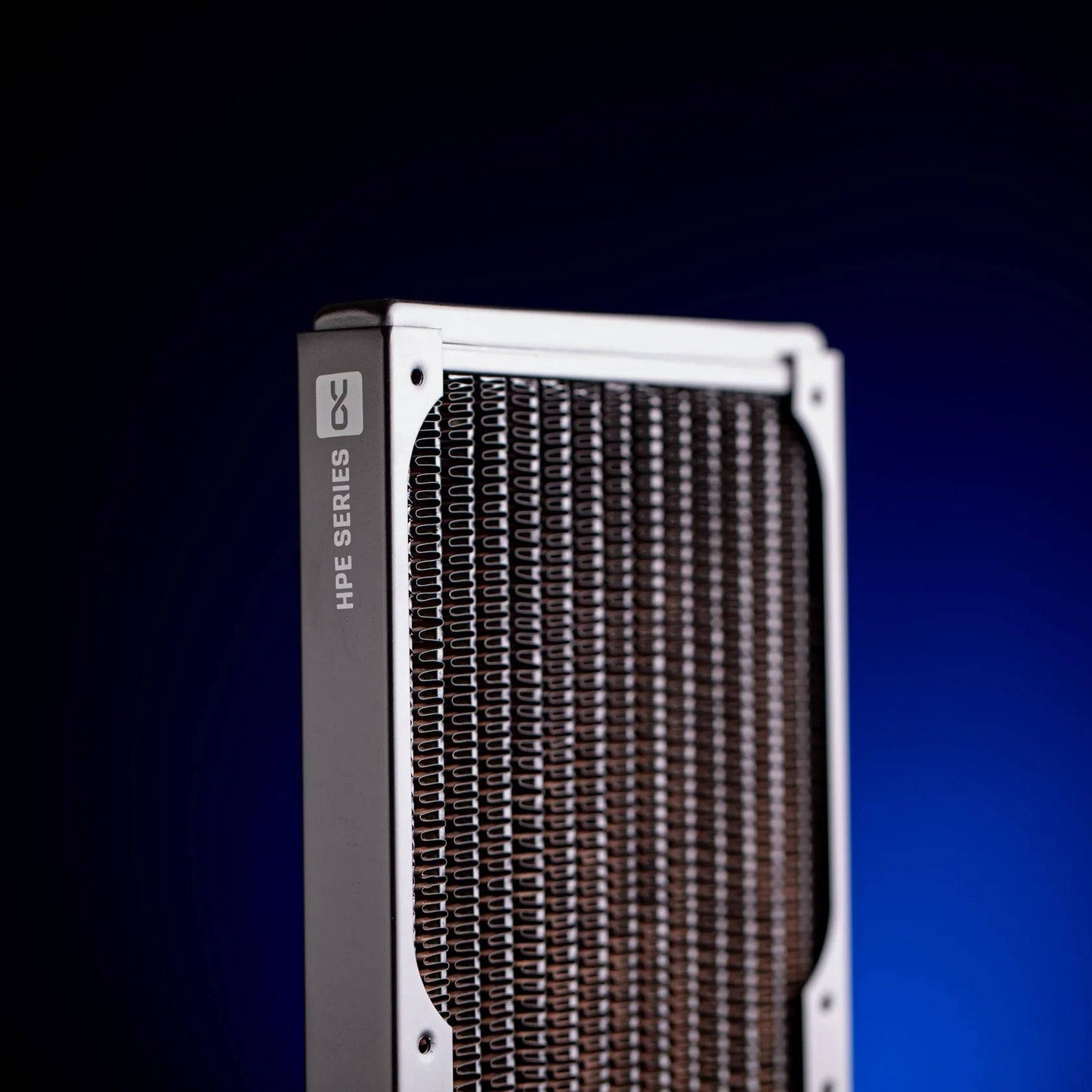

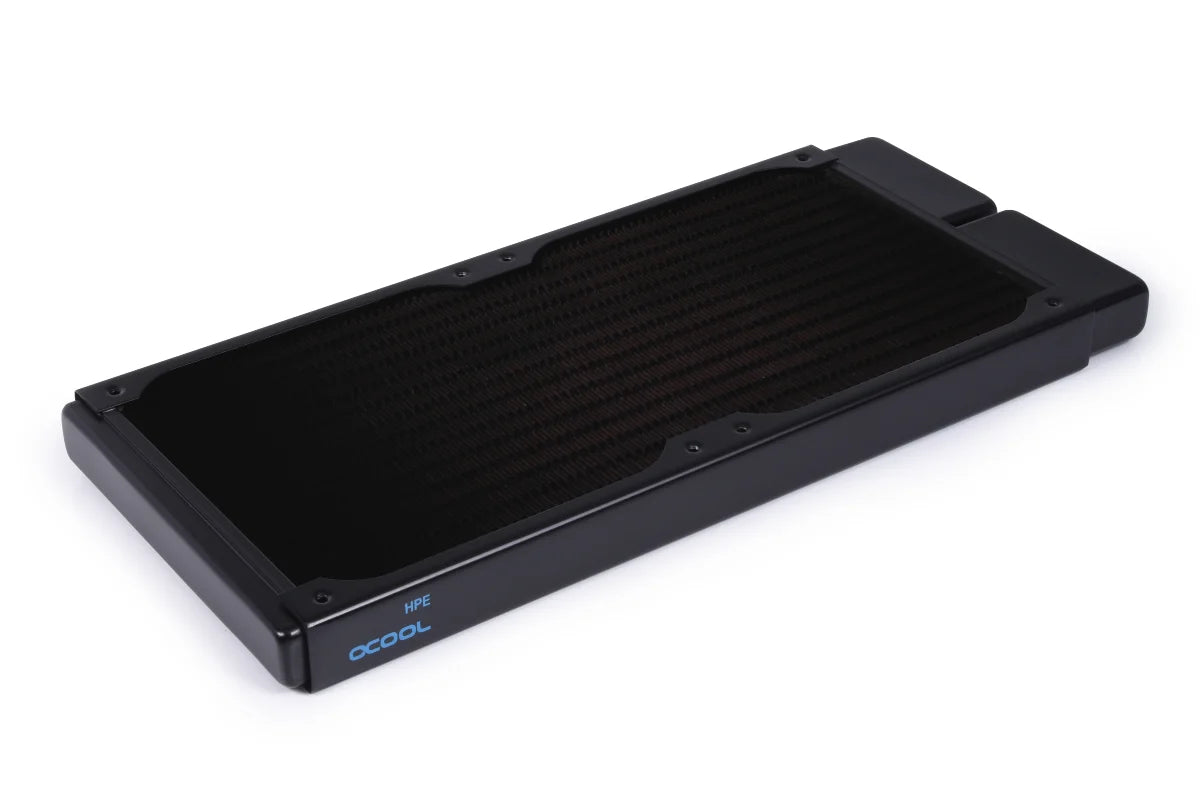

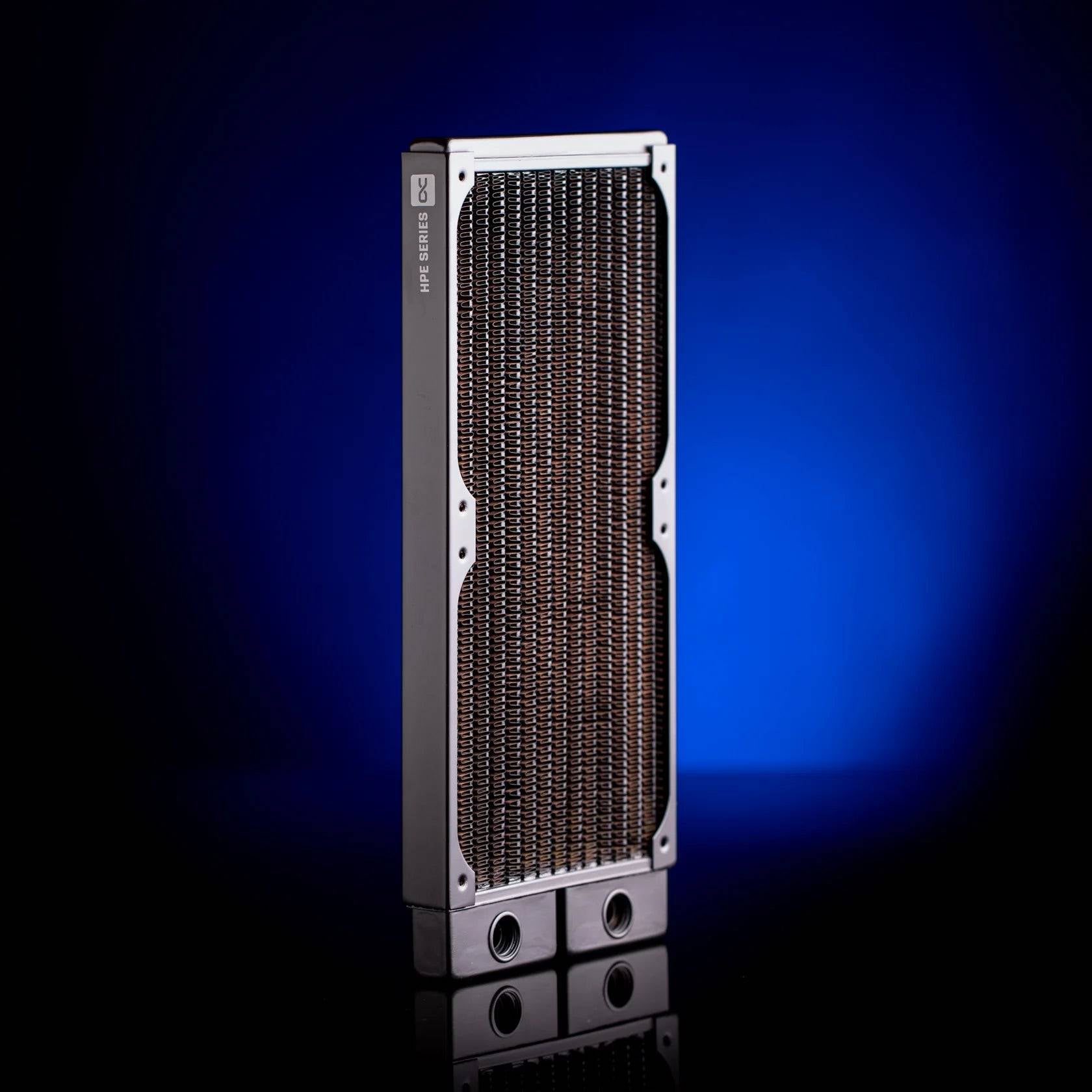

Alphacool NexXxoS ST20 HPE-20 Full Copper 240mm Radiator

Alphacool NexXxoS ST20 HPE-20 Full Copper 240mm Radiator

Regular price $150.00 AUD
Regular price Sale price $150.00 AUD
Sale Coming Soon!
GST included. Shipping calculated at checkout.
Product information

For more than a decade, Alphacool has dominated the market with the NexXxoS Full Copper radiator series. Our extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which allows us to produce all water-carrying parts and the cooling fins out of pure copper. As a result, the NexXxoS series offers the highest thermal conductivity of any radiator on the market. Thanks to their exceptional performance, the radiators can easily dissipate even extremely high waste heat and have become essential in many areas of the cooling industry.

The next step in evolution: NexXxoS HPE Full Copper Radiator!
The NexXxos Full Copper HPE Radiator uses the same materials as previous NexXxos models, but takes it a step further technically. Due to the condensed internal structure, the number of water channels and copper fins could be increased. Thus, a larger volume of water is in direct contact with the cooling fins and the heat transfer is enormously improved. The higher number of fin rows and their shortening also makes much more efficient use of the cooling surface. Comparison tests with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator. At higher ambient temperatures and higher fan speeds, the performance gap with the normal NexXxoS radiators even increases progressively, reaching a possible performance increase of up to 6K.

Space-saving & flexible to use
The compact slim radiators can be mounted very flexibly in even the tightest cases thanks to their low overall height of only 20mm.

Connection options & mounting

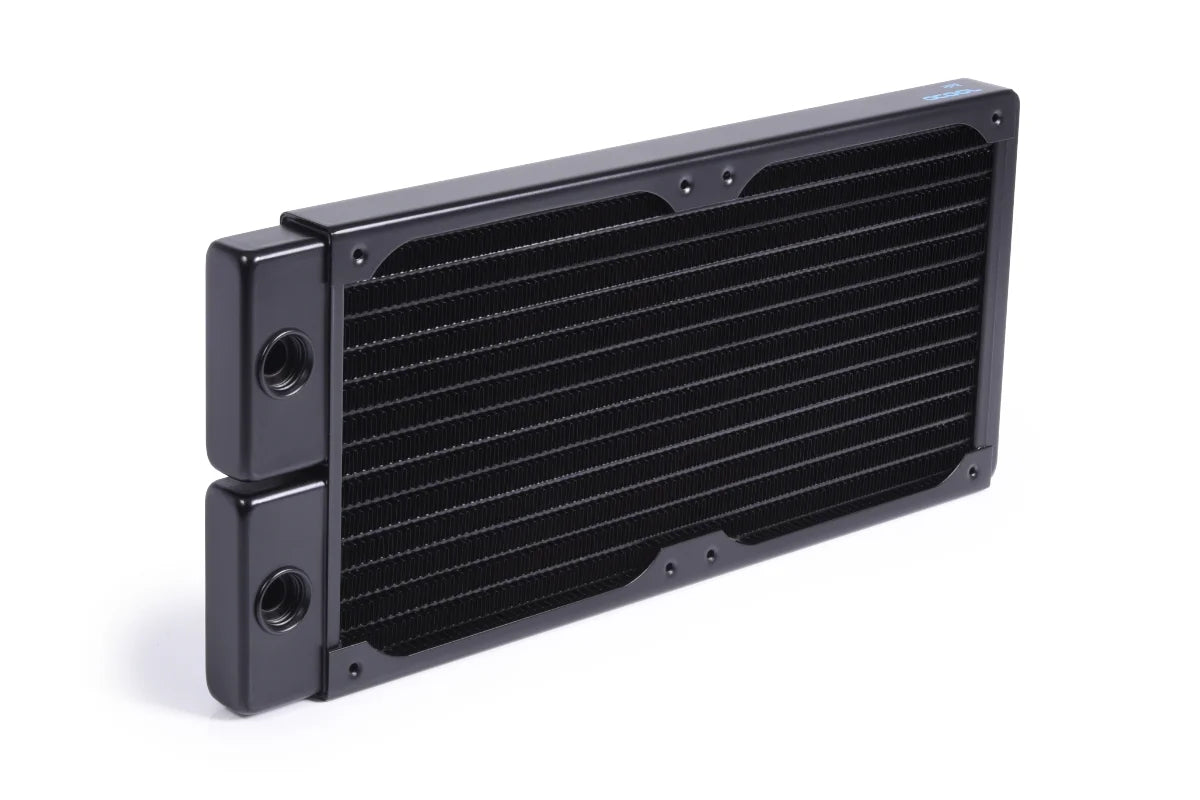

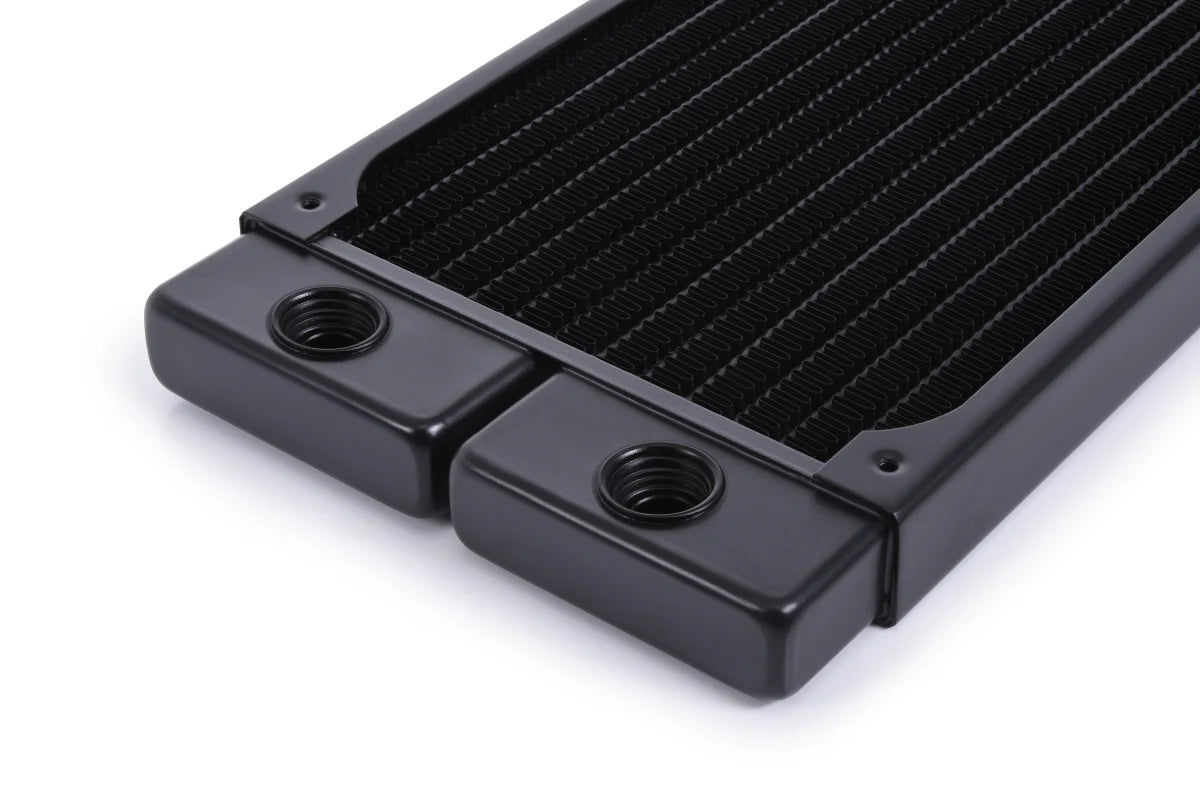

The NexXxoS HPE radiator has one IN and OUT connection with G1/4" threads in the pre-chamber area. All screws for mounting in the case and for mounting the fans are included with the radiator. Additional screws are not usually required.


Technical data radiator
L x W x H 270 x 120 x 20mm
Material cooling fins, pre-chambers & channels copper
Material threads brass
Material outer housing stainless steel
Threads 2x G1/4" IN/OUT (max. 5mm thread length)
Possible fan size 120mm
Possible fan assembly 2x one-sided / 4x both-sided

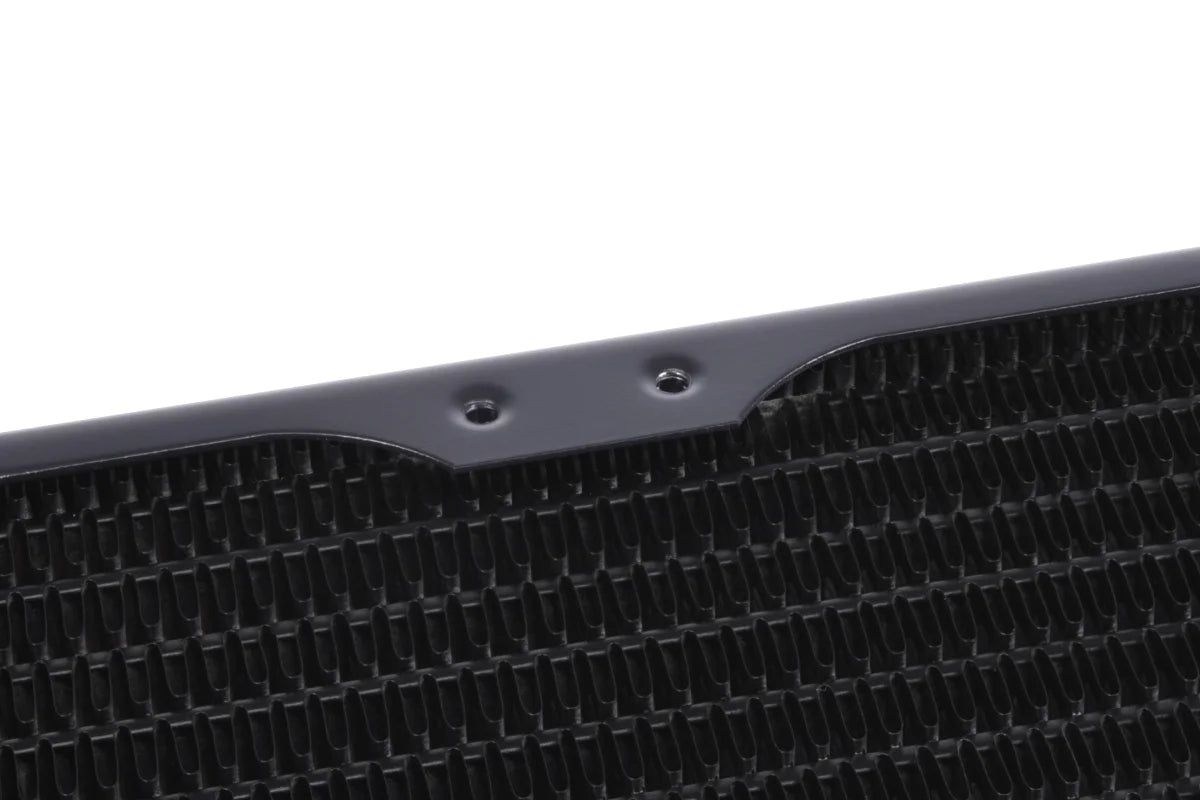

Thread size fan mounting M3
Pressure tested 0,8 Bar
Maximum working temperature 60°C
Fin density 19 FPI
Weight 454g
Color black

Warranty: 10 years
🔗 Warranty Terms



Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
