Alphacool Rise Flat Reservoir D5
Alphacool Rise Flat Reservoir D5
Couldn't load pickup availability

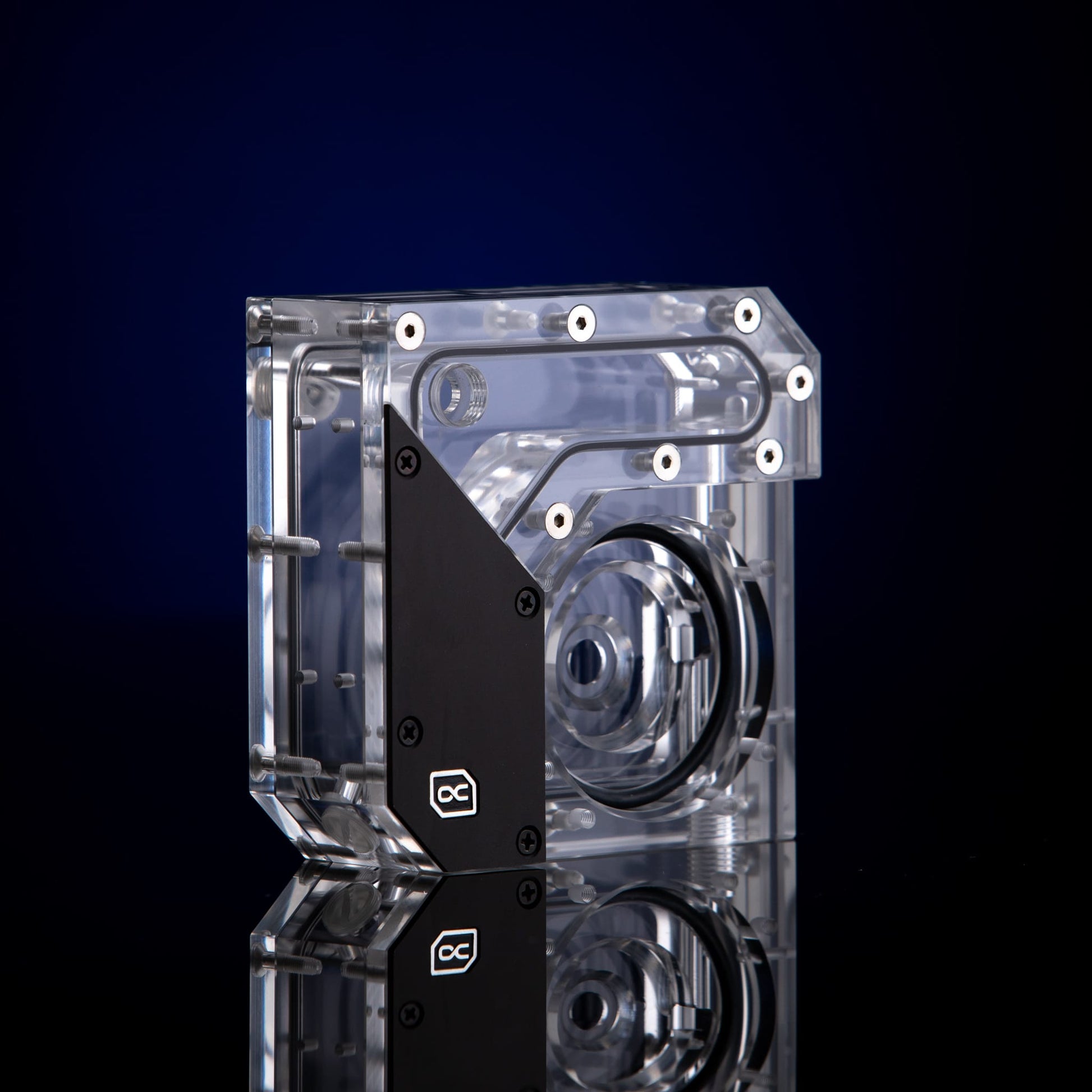

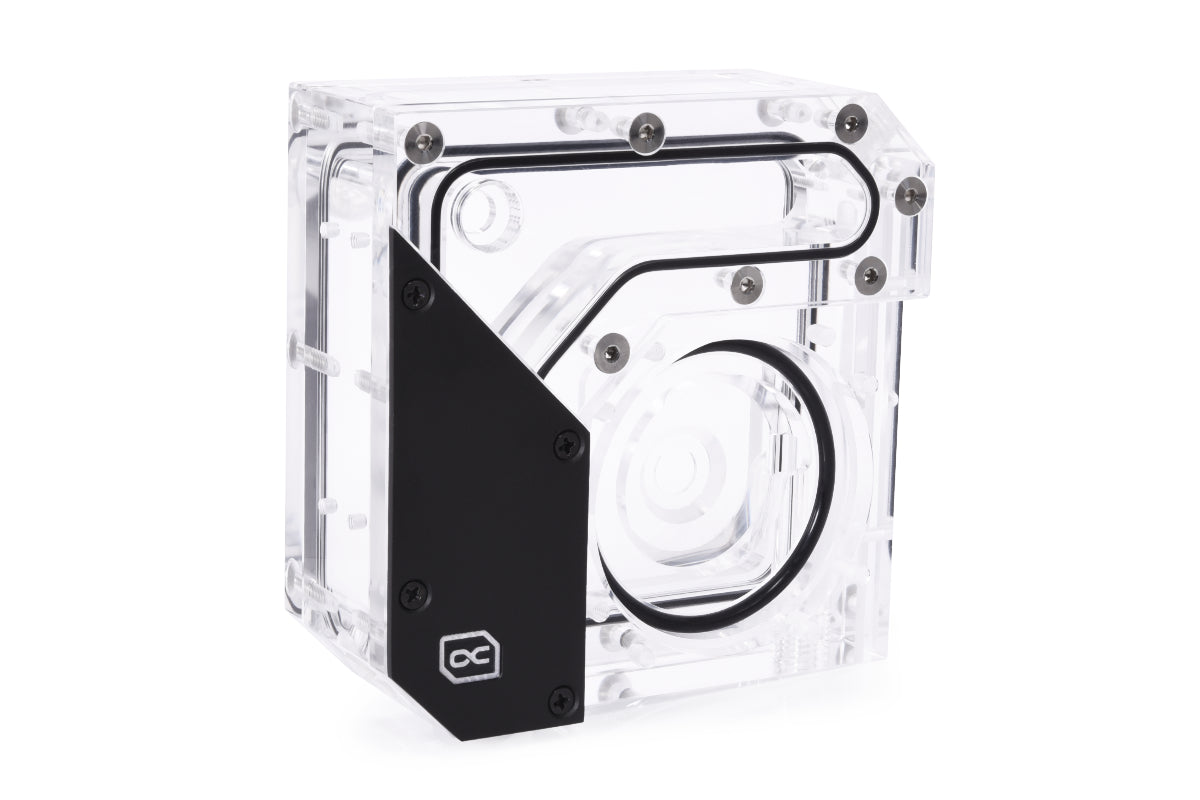

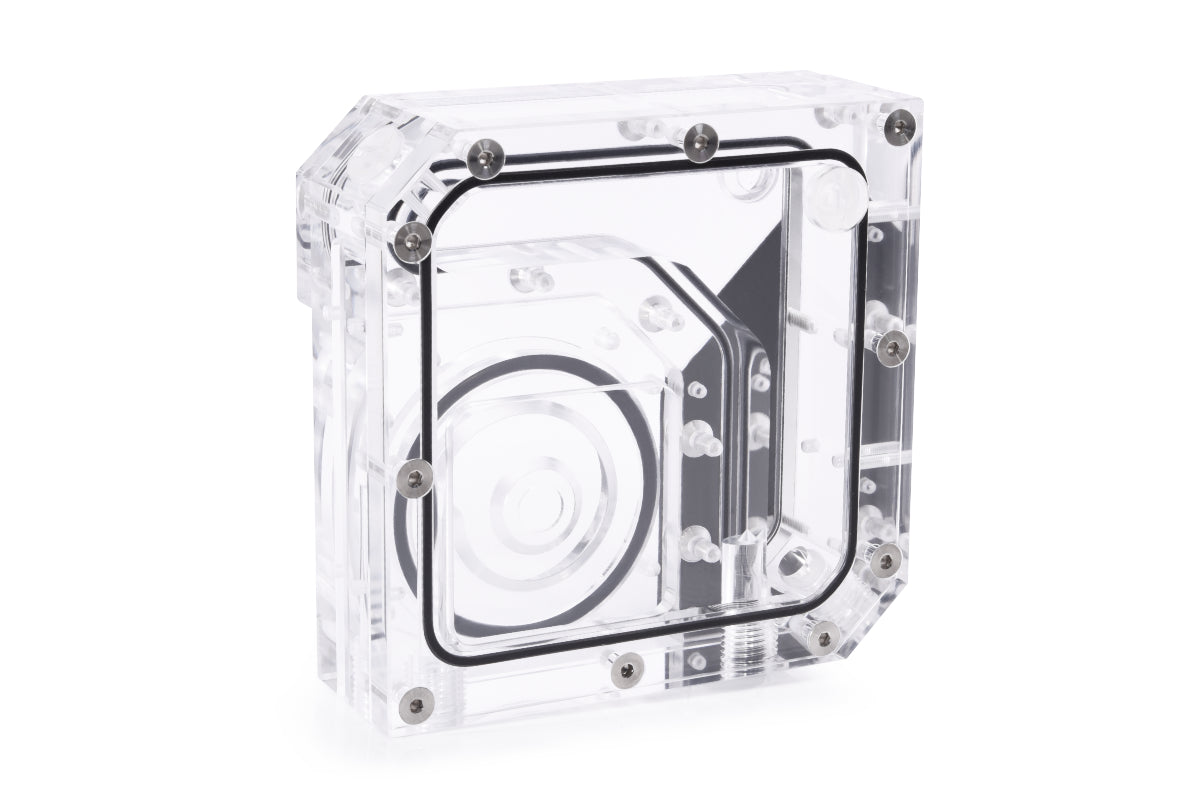

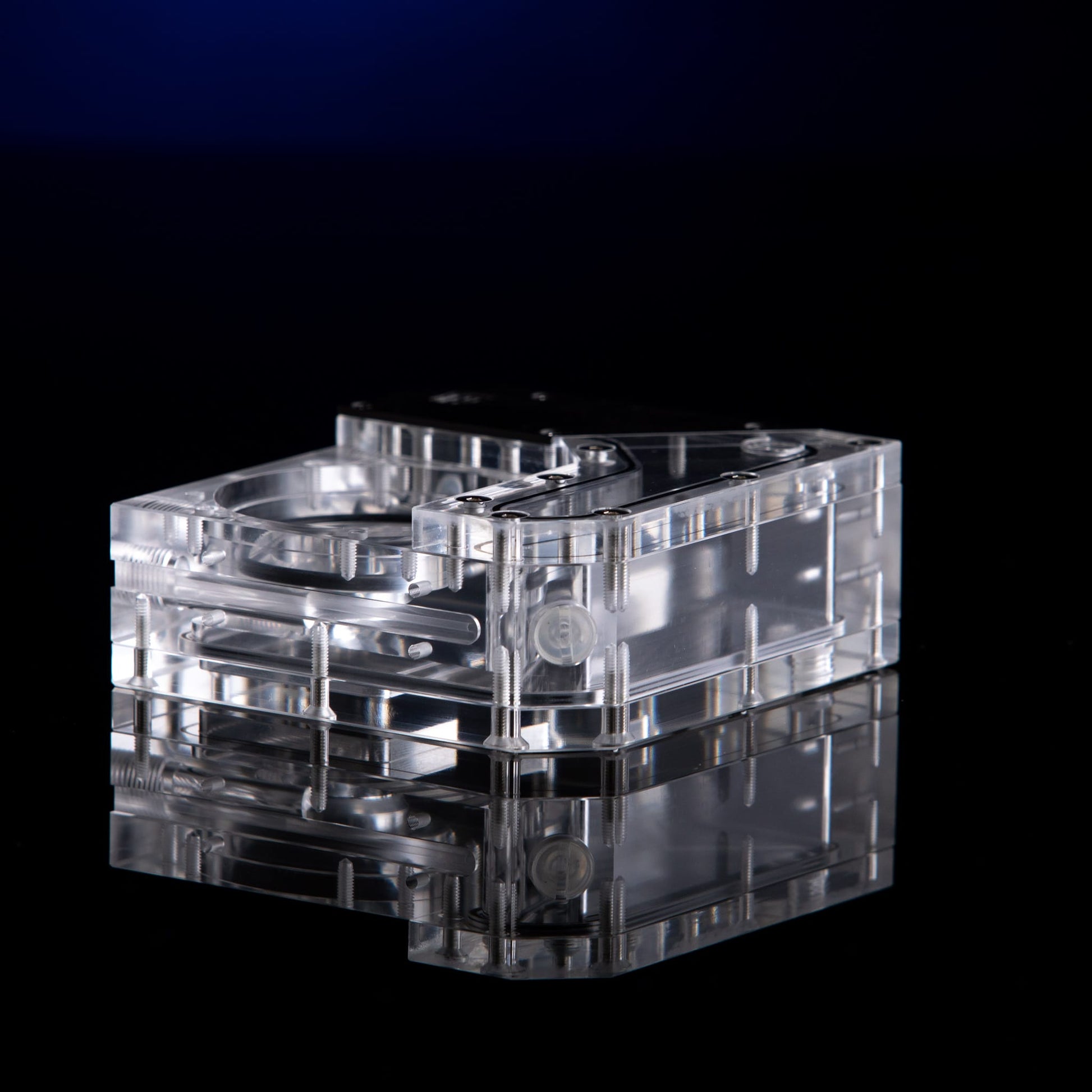

The Alphacool Rise Flat expansion tank has an integrated pump top for powerful D5 pumps. The combination of pump top and expansion tank is made entirely of acrylic. This makes maintenance and control of the water circuit much easier and gives the expansion tank a unique design. In addition, Alphacool's Rise Flat has 5 individually controllable 5V aRGB LEDs that create unique lighting effects. Thanks to the flat design, the reservoir can fit into even the tightest case.

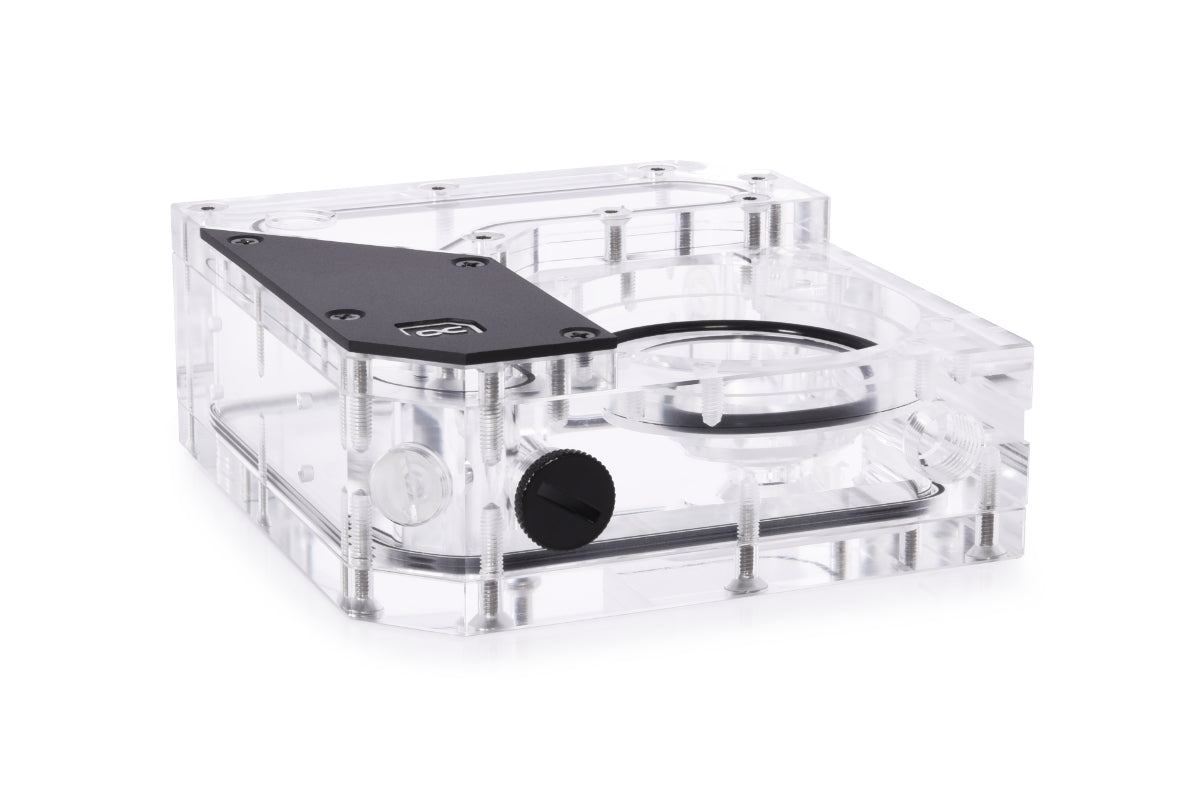

Compact design, flexible use

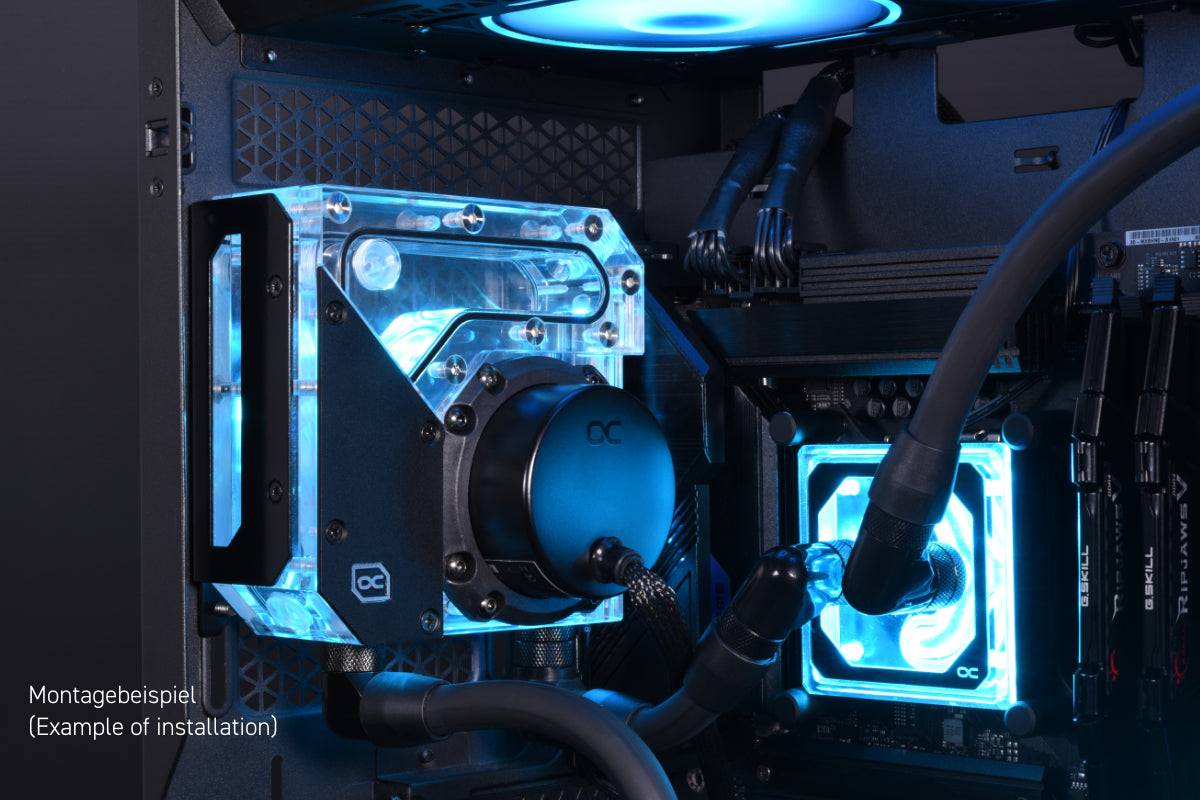

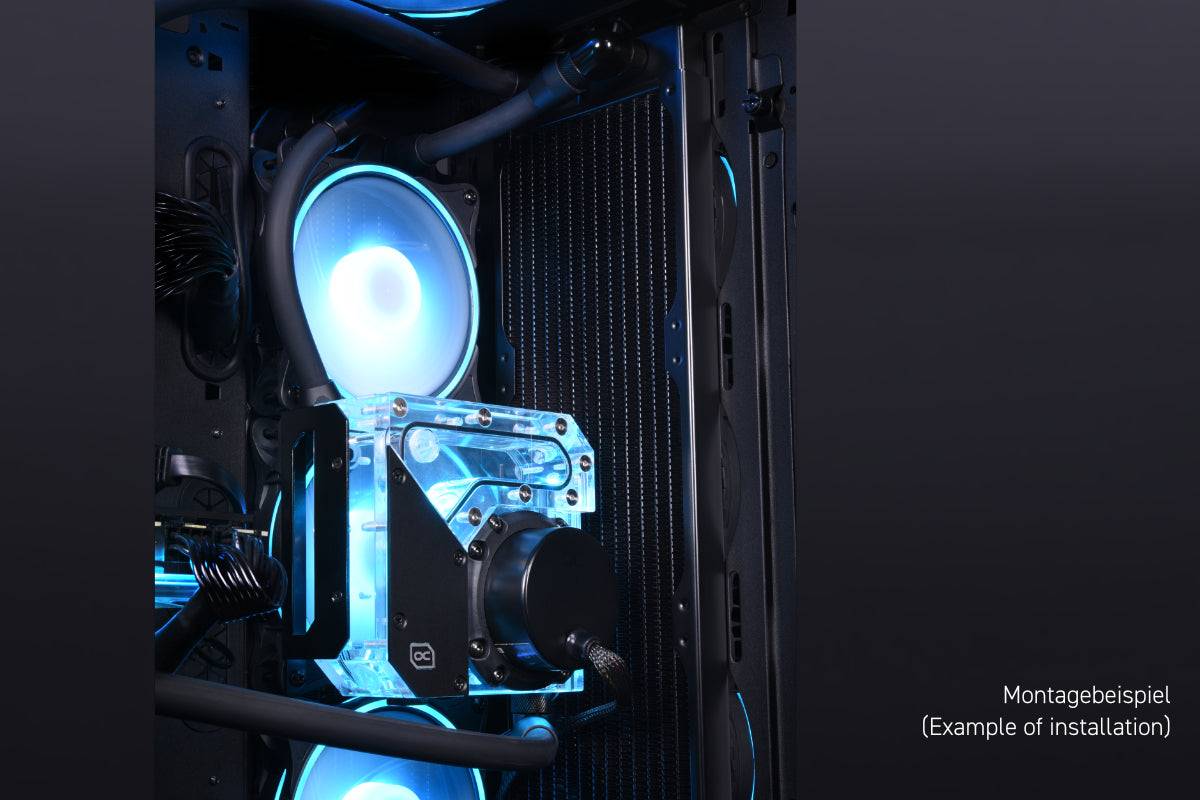

Due to the flat, compact design and the high number of connections, the Rise Flat reservoir can be used flexibly and can also be installed in the tightest of spaces. With the help of the mounting kit included in the scope of delivery, the reservoir can be mounted free-standing in the case, on a radiator or at free fan positions (see mounting example).

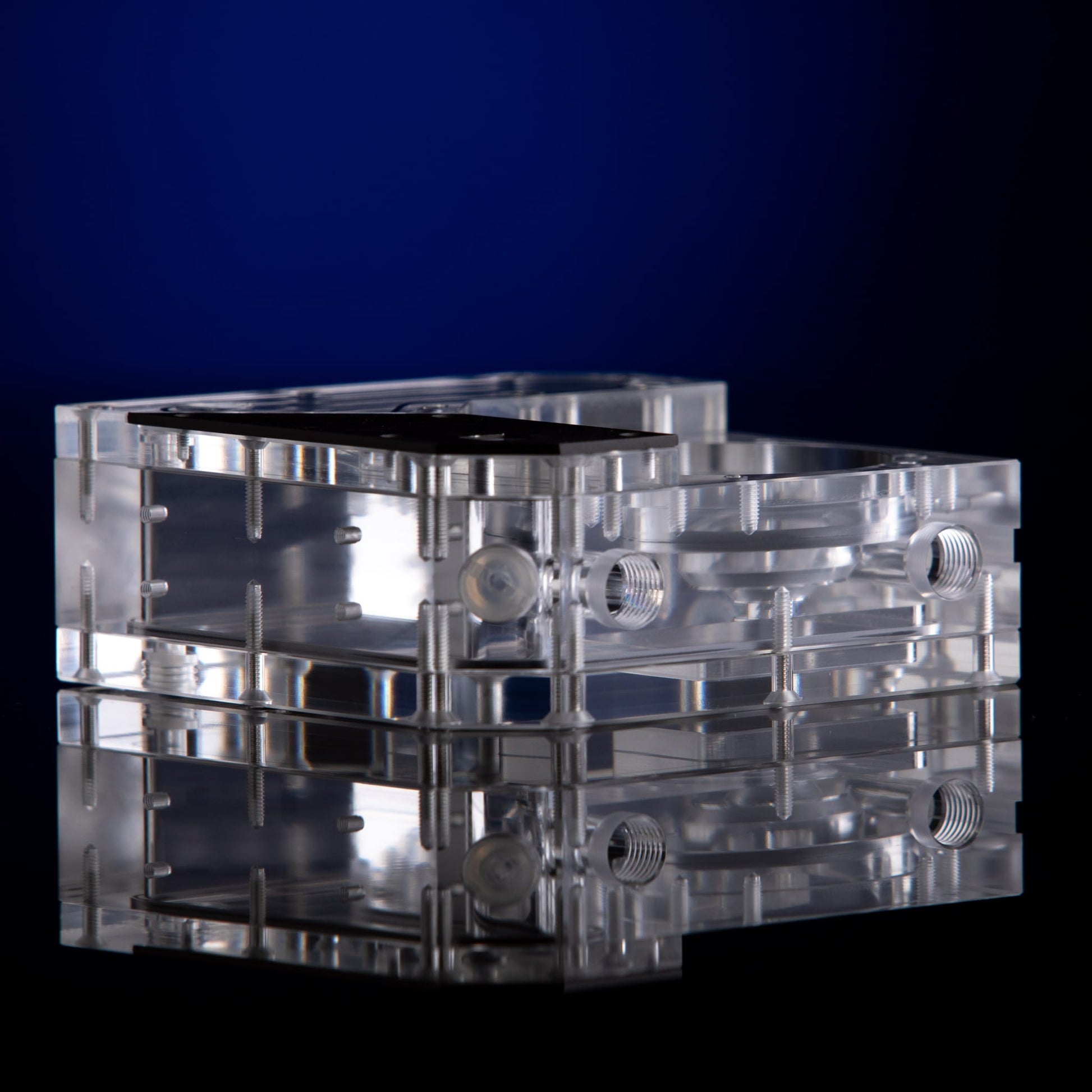

Connection options
The Rise Flat expansion tank has a total of 5 inputs and one output. All connections use a G1/4" thread. The 5 inlets are perfectly placed over the entire expansion tank. This allows for easy filling and draining and facilitates maintenance of the entire water circuit.

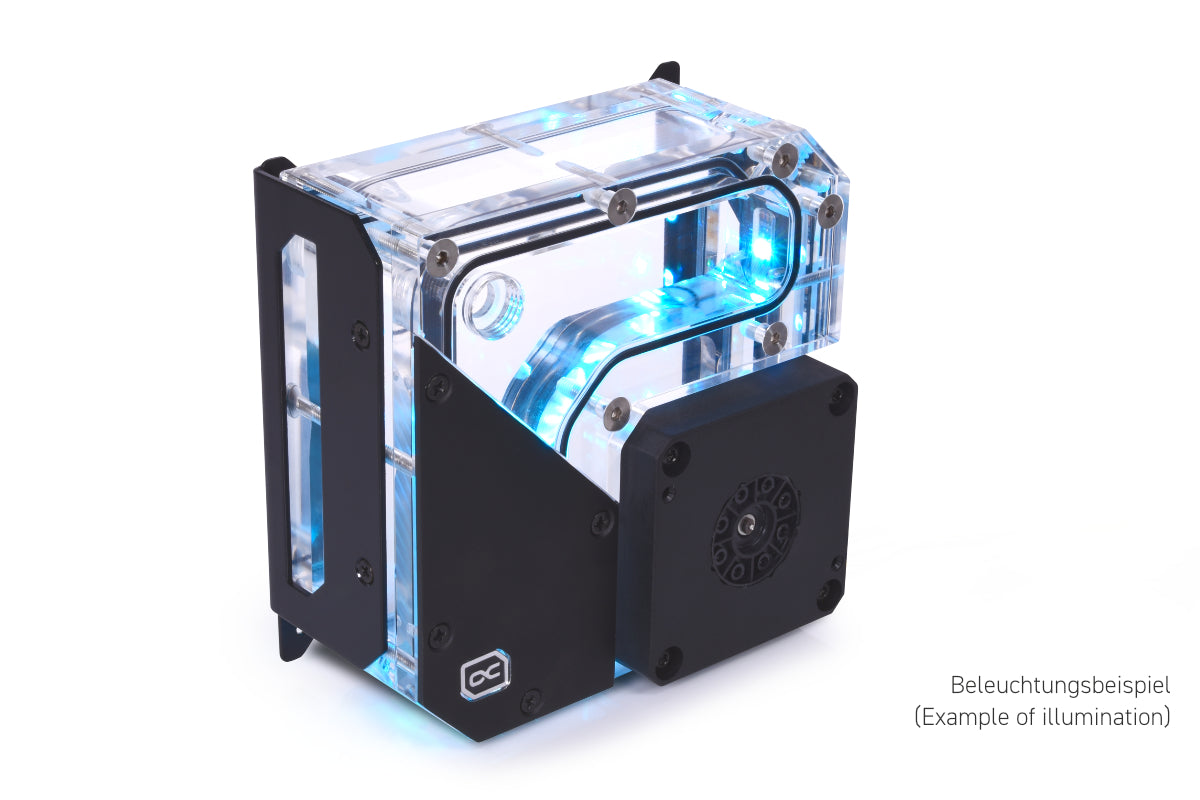

Brilliant lighting
On the side of the expansion tank, 5 digitally addressable 5V RGB LEDs can be installed, which create a unique, very noble-looking illumination. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.
Maintenance
The acrylic reservoir allows visual control of the water cooling level. A total of 5 G1/4" inlets allow easy filling, draining and venting of the water circuit.
Compatibility

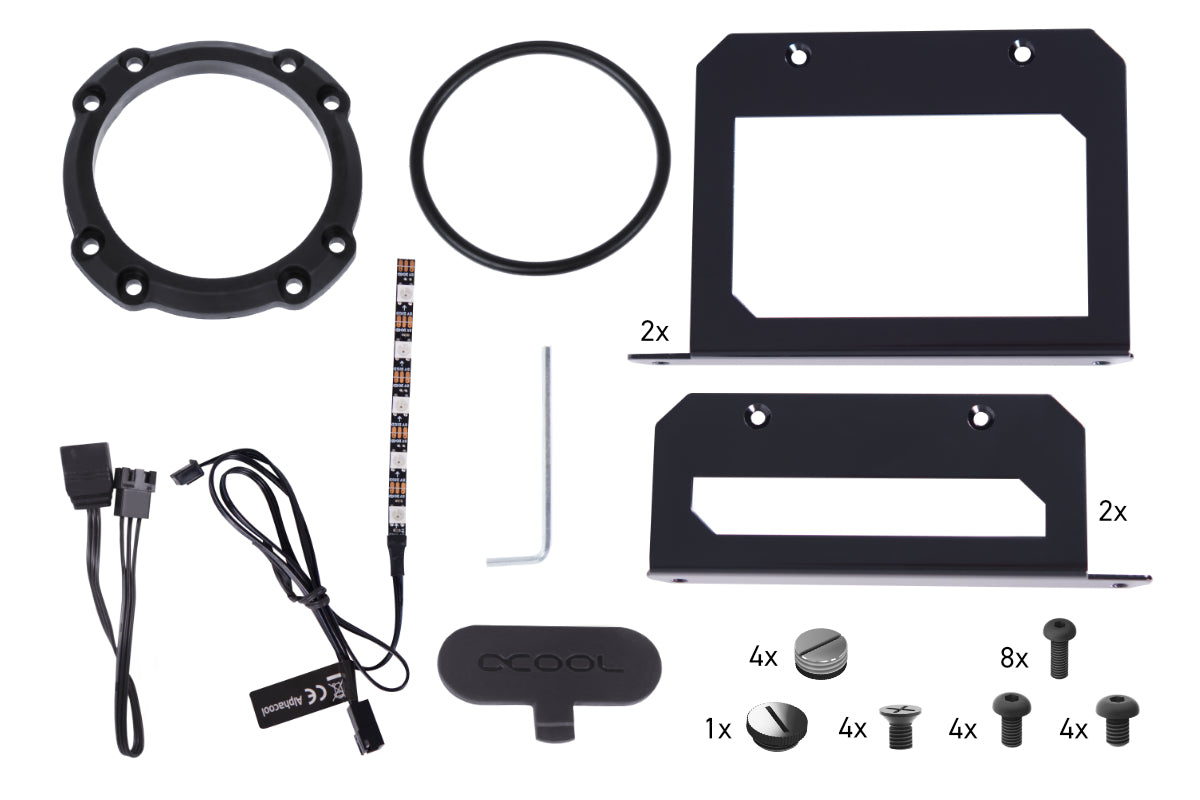

The Rise Flat AGB has an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps. The pump retaining ring, a pump O-ring and all screws are included in the scope of delivery.
(Note: The pump shown in the installation example is not included in the scope of delivery! The reservoir can only be used in combination with a compatible D5/VPP pump.)
Technical data | |
L x W x H | 120 x 120 x 50 mm |
Pump compatibility | D5 |
Capacity | 200ml |
Material Pump top | acrylic |
Material reservoir | acrylic |
Connection | 6x G1/4“ internal thread |
Maximum working temperature | 60 °C |
Pressure tested | 0,8 Bar |
Quantity of digital aRGB LEDs | 5 |
Power digital aRGB LEDs | 5V |
Power connector digital aRGB LEDs | 3-pin JST (male & female switch) |
Weight | 565 g |
Color | clear |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
