Simple elegance meets technical grandeur

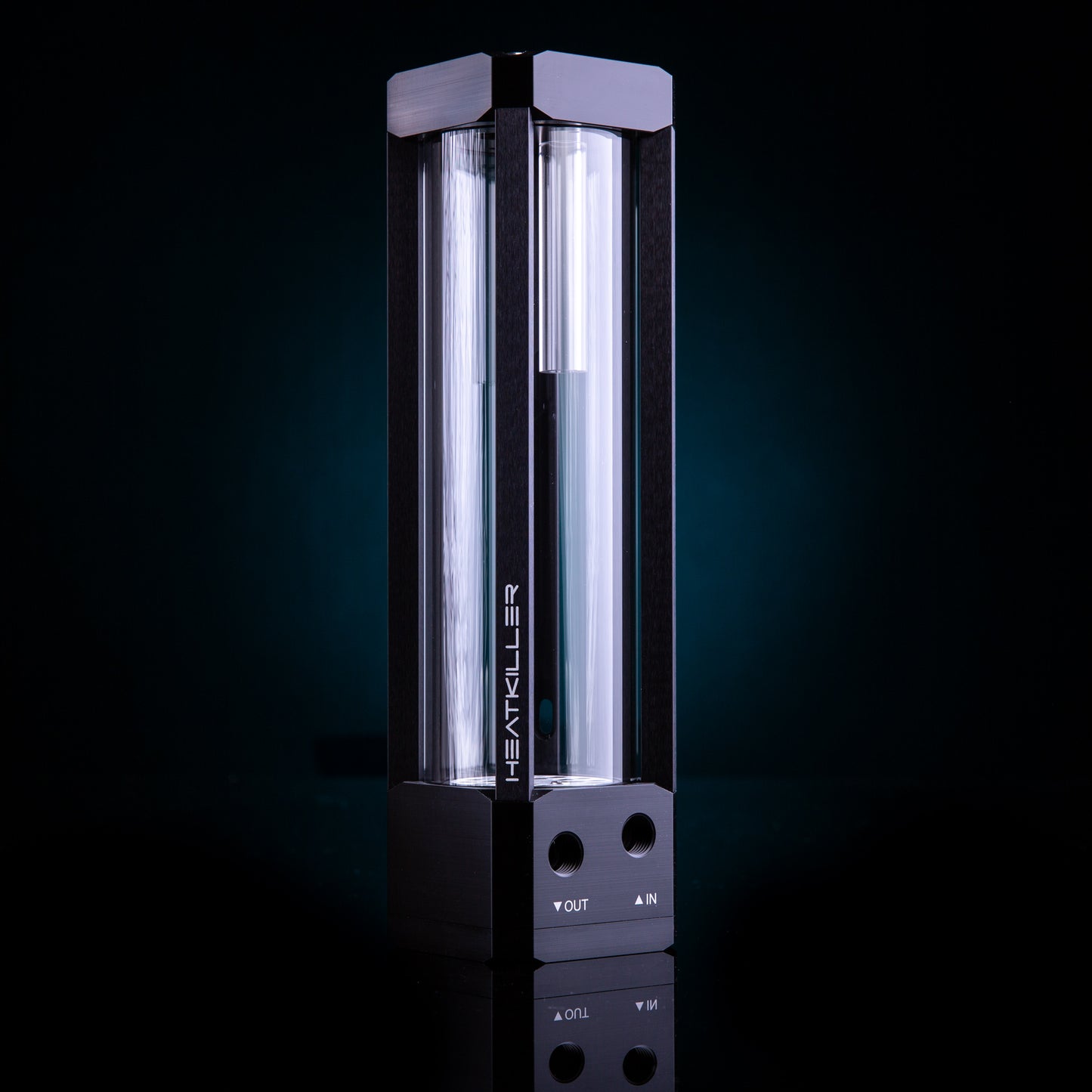

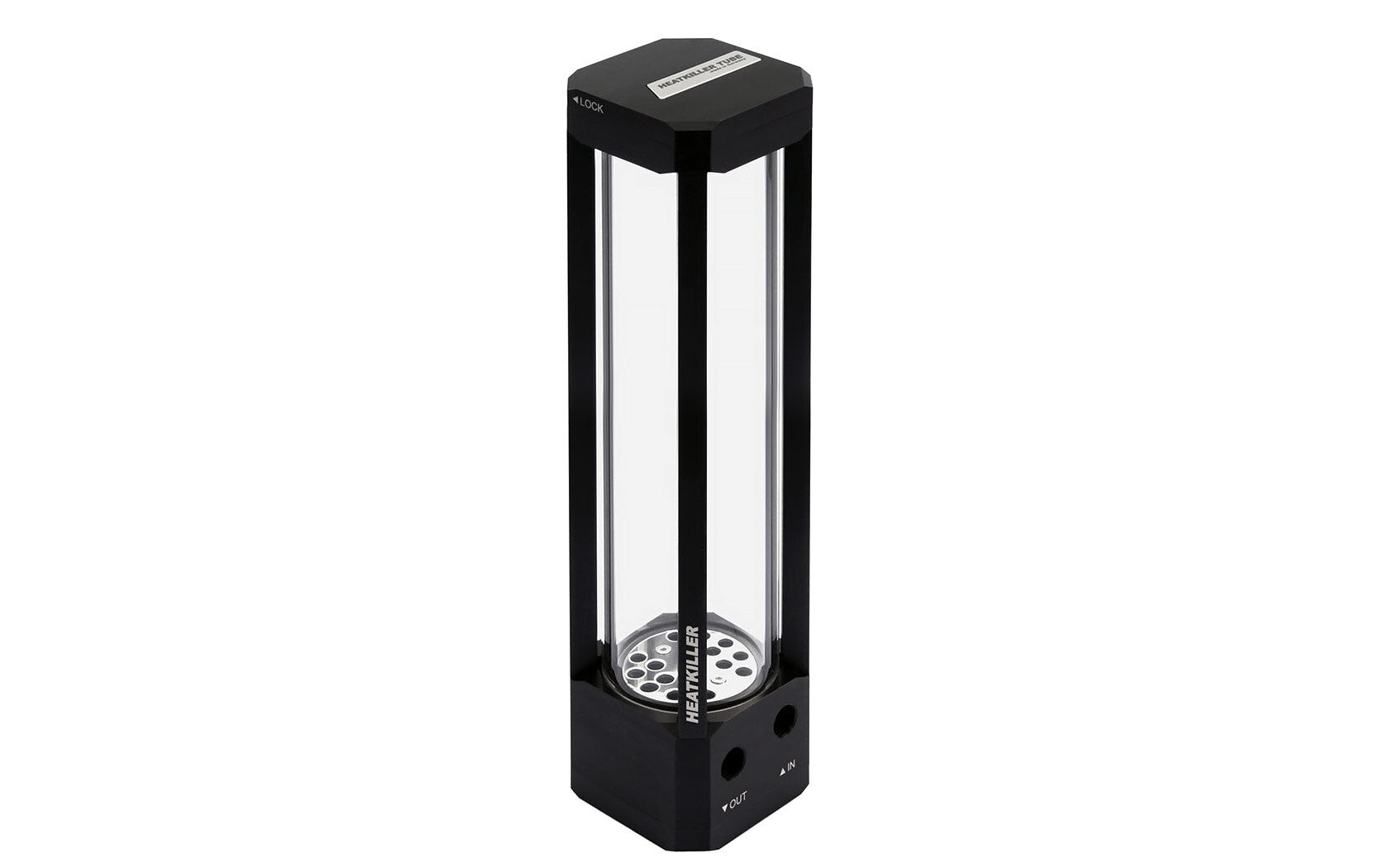

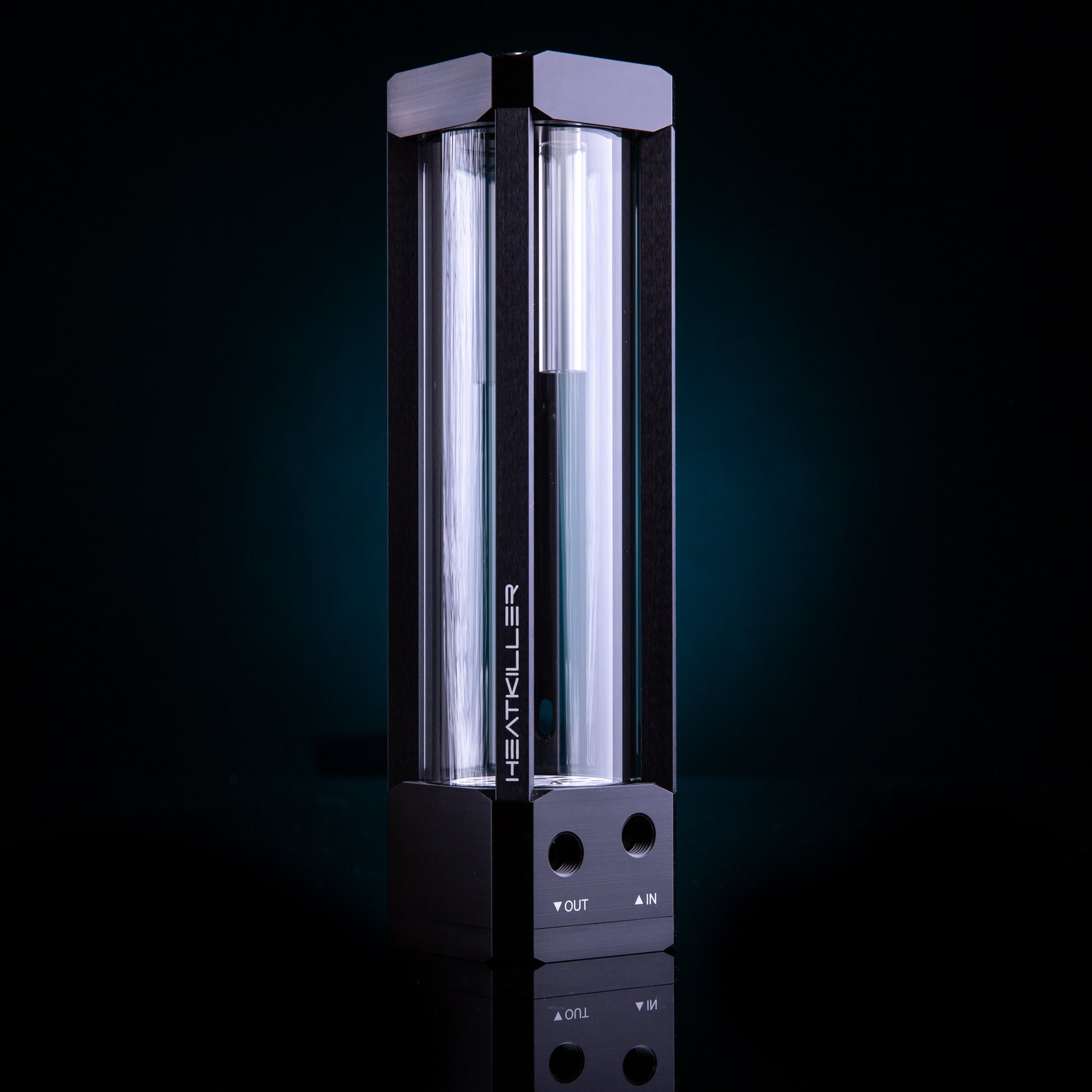

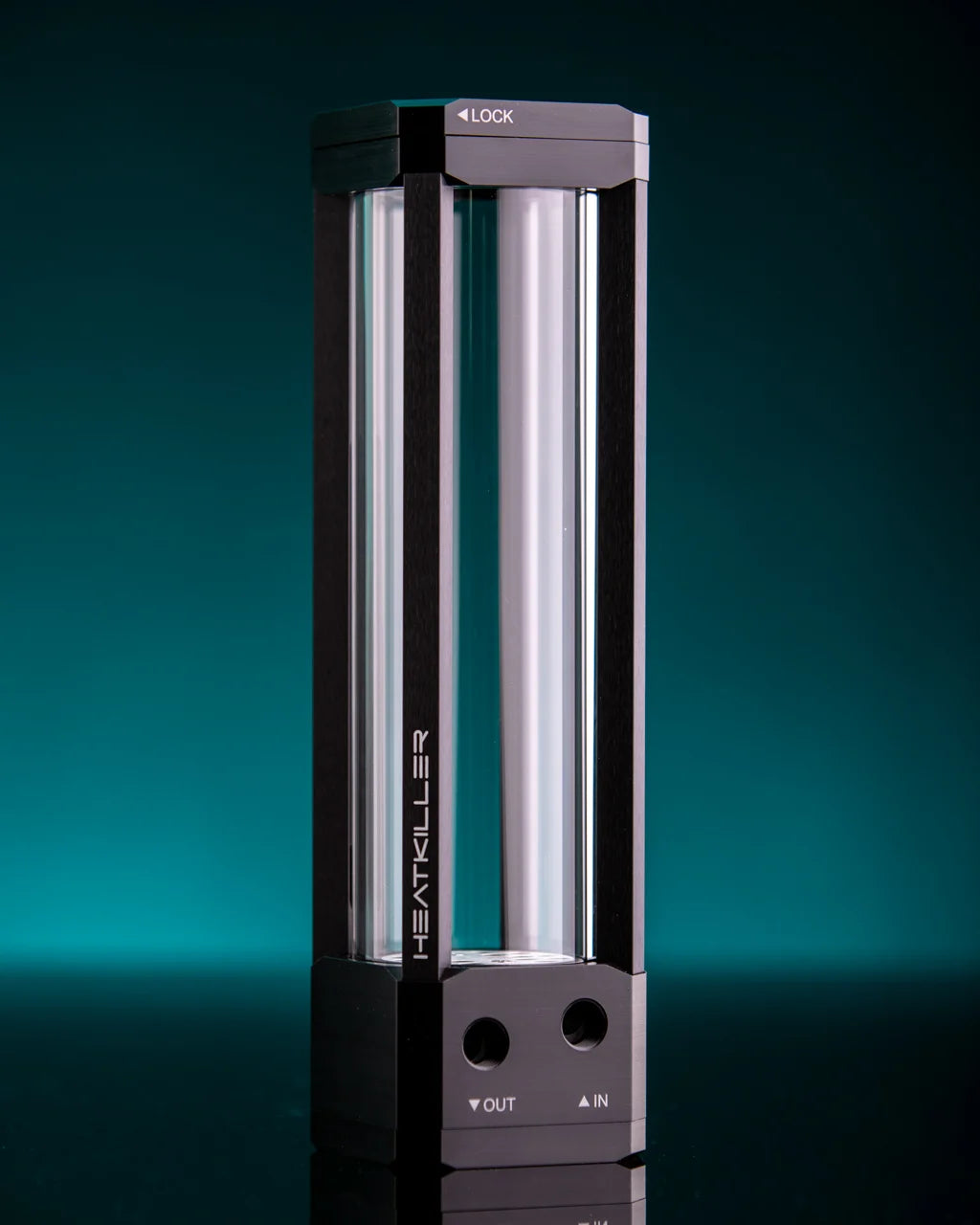

The HEATKILLER® Tube series is a modular collection of high-quality reservoirs with a borosilicate glass tube. It has many outstanding features, which are listed below.

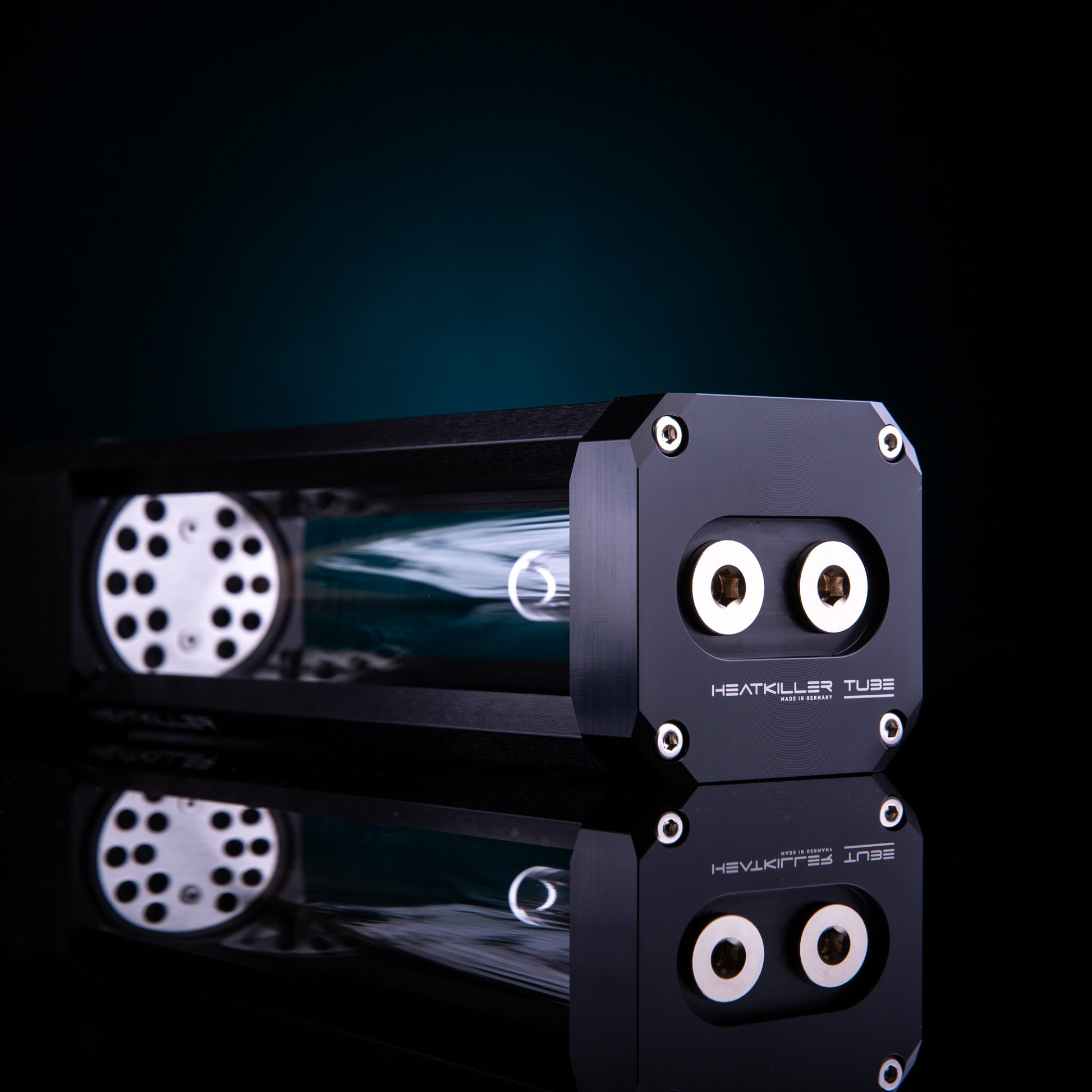

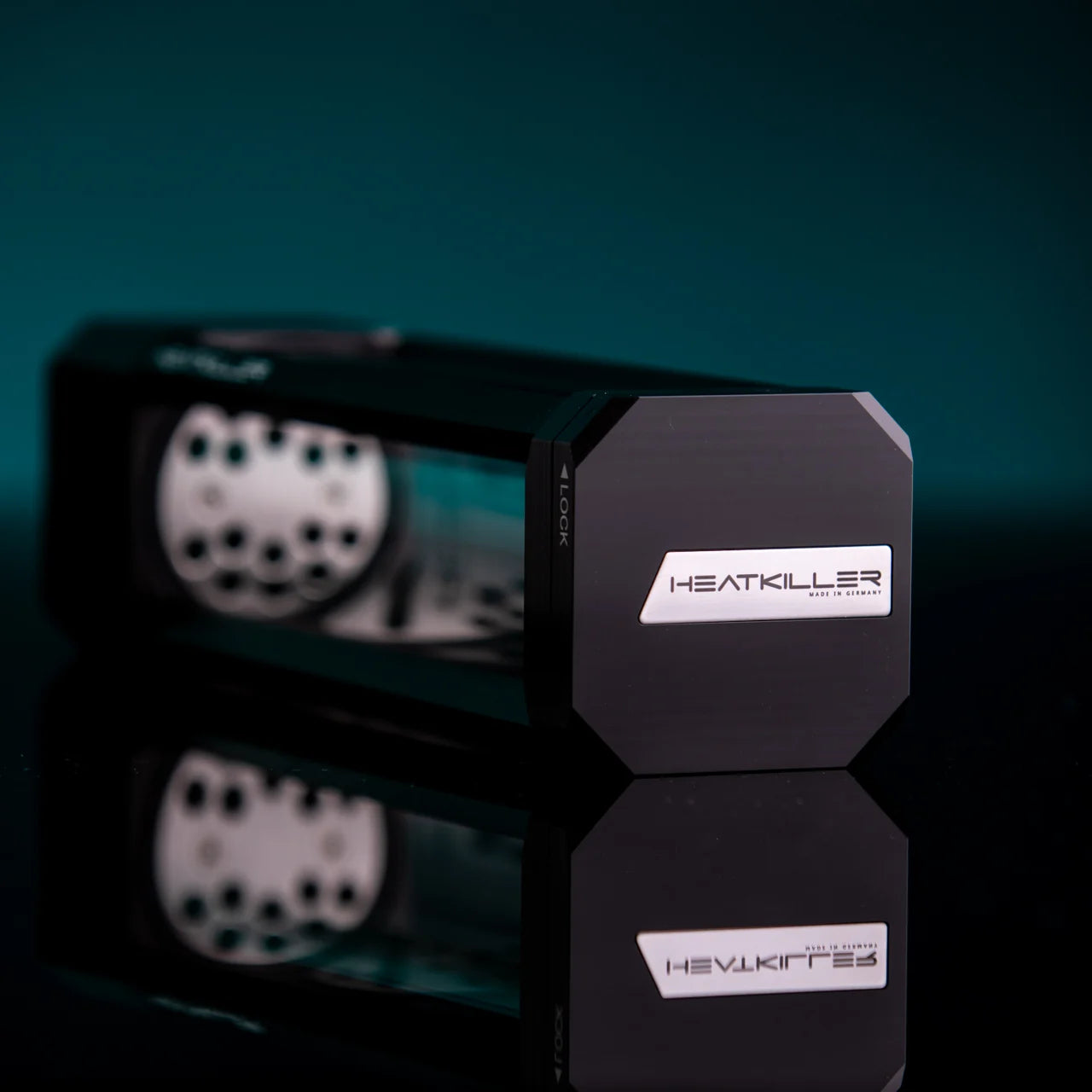

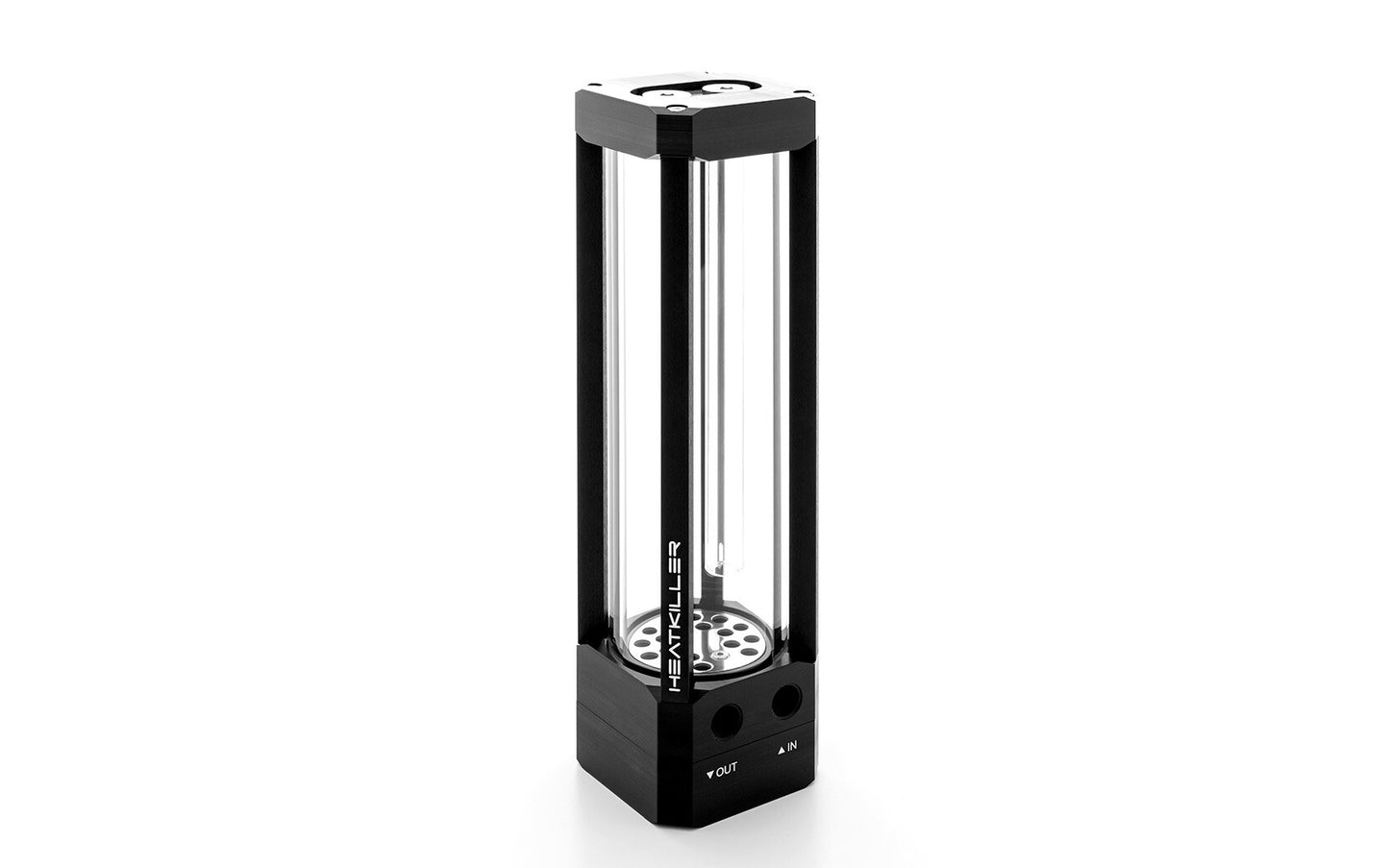

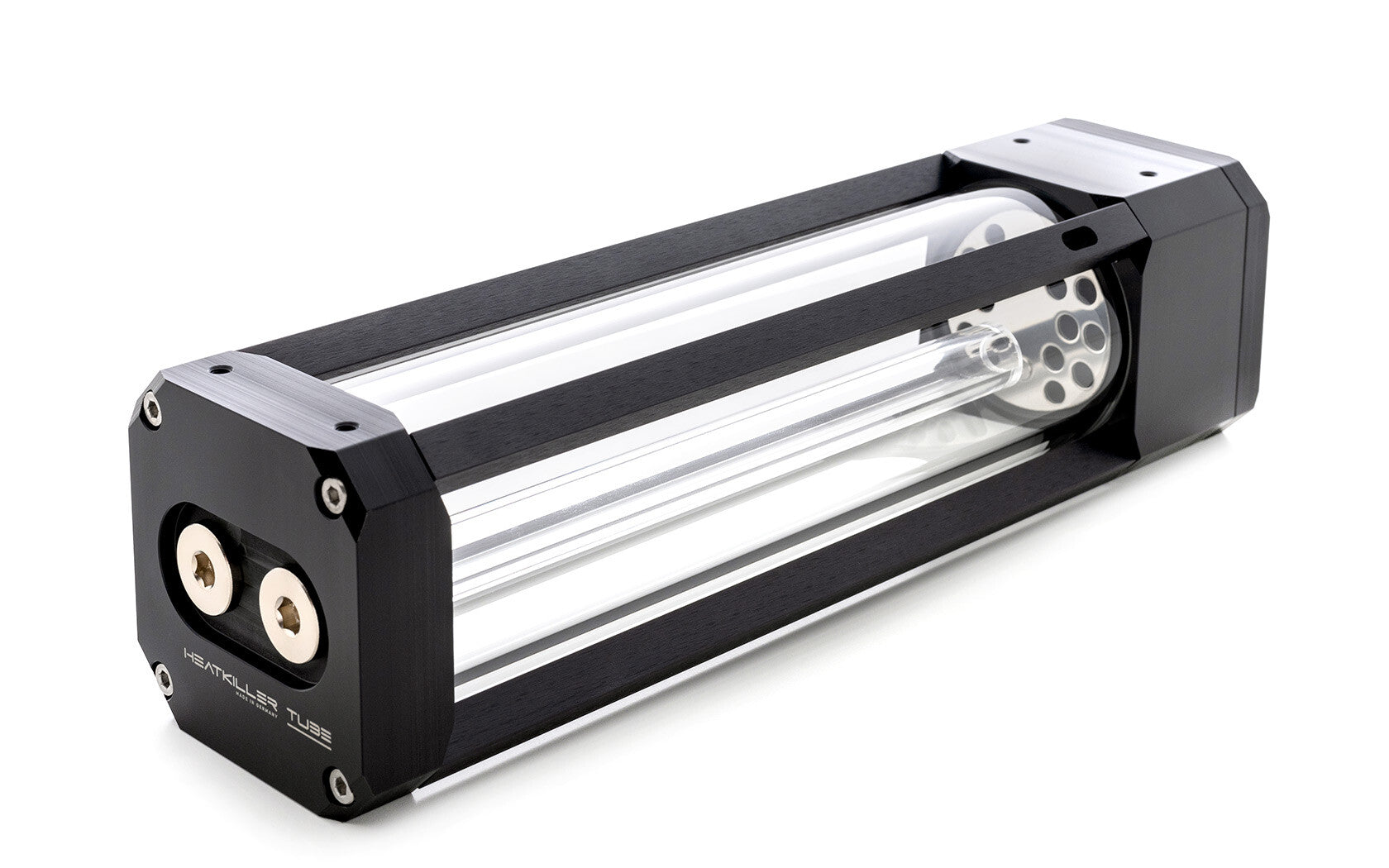

Now available in standard and multiport tops. The multi port top features two G1/4 ports on the top of the lid, whilst the standard version has a large lidded opening at the top for easy filling.
Borosilicate glass tube
With borosilicate glass, Watercool rely on the best material currently available for the construction of expansion tanks. It offers high chemical and thermal resistance, low thermal expansion and scratch-resistant properties.
Different filling volumes and flow-optimized D5 and DDC versions
Watercool have manufactured Heatkiller® Tube in different sizes. This offers the possibility of being visually perfectly staged for all applications. The sizes 100mm, 150mm and 200mm cover everything from mini-ITX to the towering rigs.

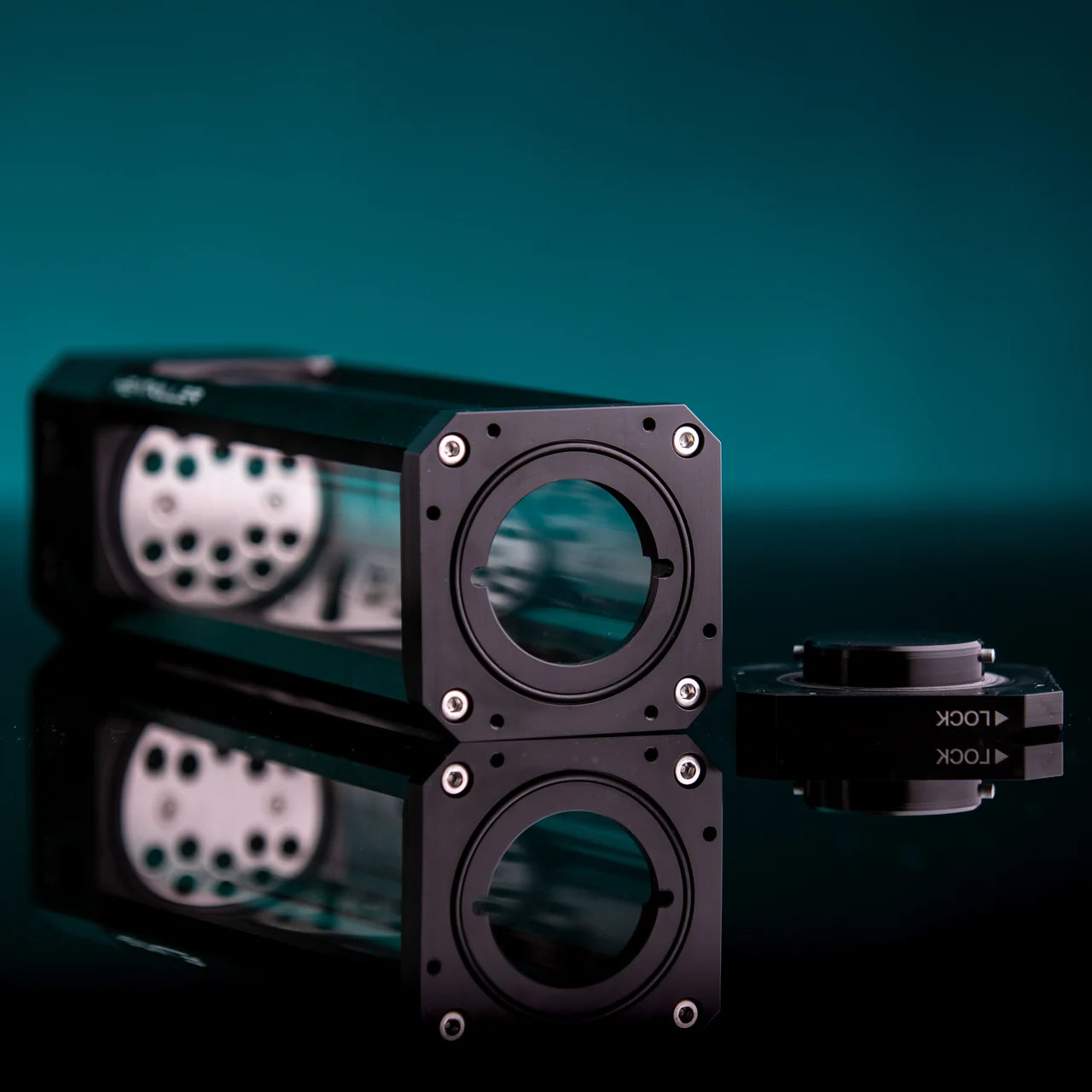

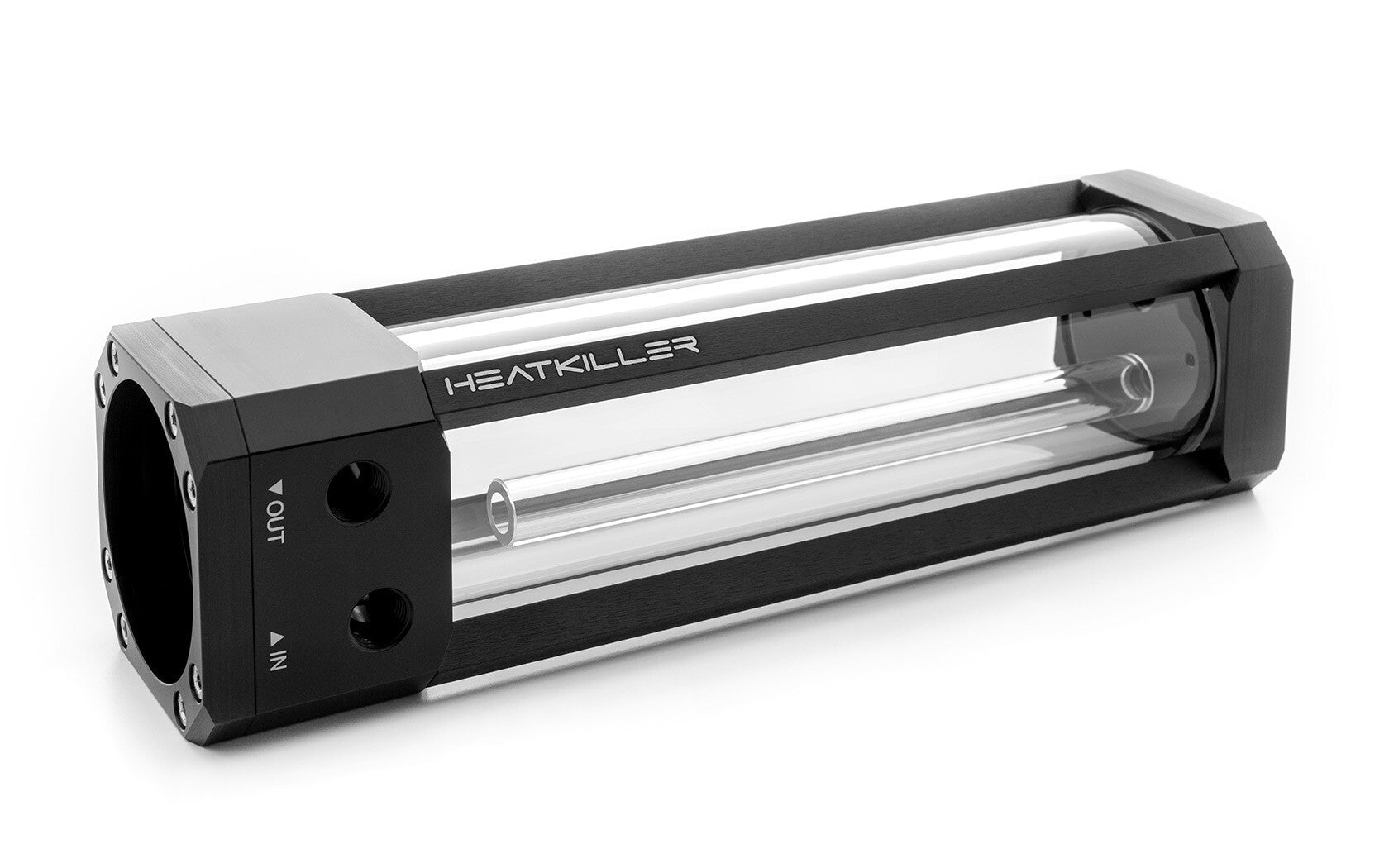

As these Heatkiller Tubes are optimized versions for the popular D5 pumps from Xylem or Laing, you can attach your favourite D5 pump directly to these reservoirs. The pump is then able to draw water directly out of the expansion tank, which ensures higher flow rates and less noise thanks to the flow-optimized design.
Anti-cyclone effect

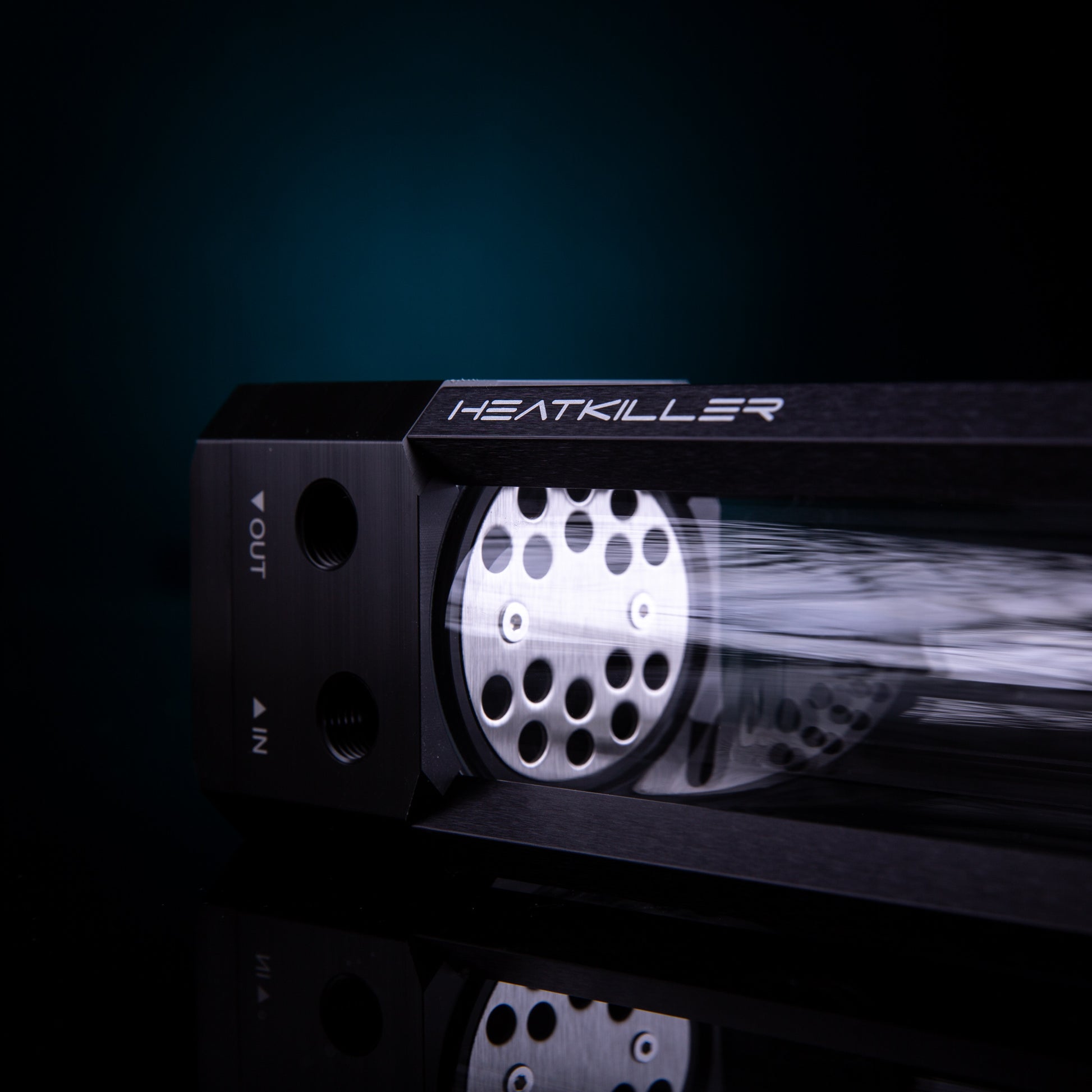

With Watercool's newly developed inlay, the anti-cyclone effect has been eliminated. In other reservoirs, a "whirlpool" is sometimes created which can reduce the performance of your cooling loop and increase noise.
Made in Germany
The production takes place with the greatest care on Watercool's ultra-modern CNC machine park in Waren-Müritz. Many work steps are carried out by hand and each product is brought to perfection according to the four-eyes principle. Made in Germany as you would imagine.
Technical data:
Material upper part: POM
Material struts: aluminum - black anodized
Material tube: borosilicate glass
Material lower part: POM
Material inlay; Stainless steel

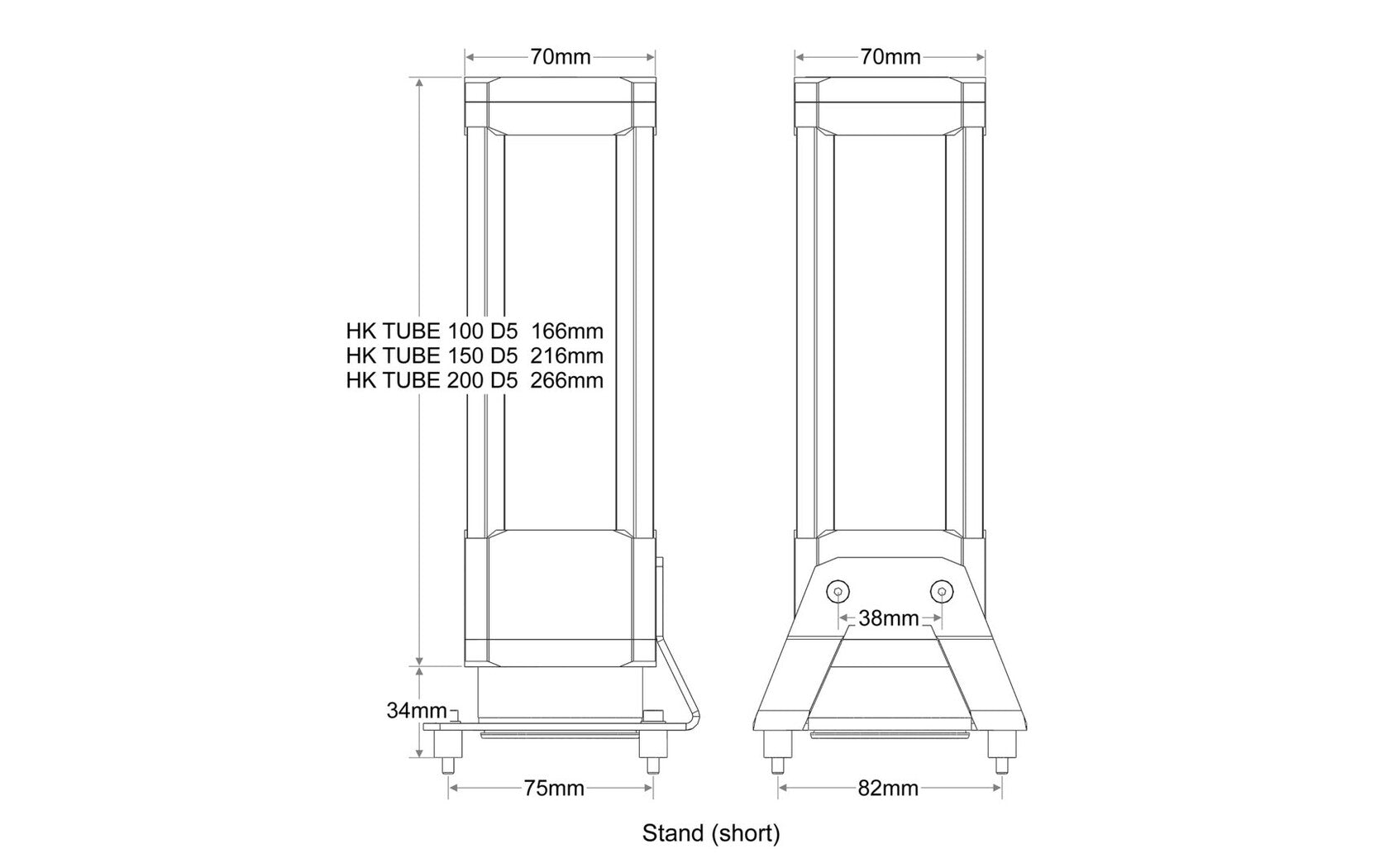

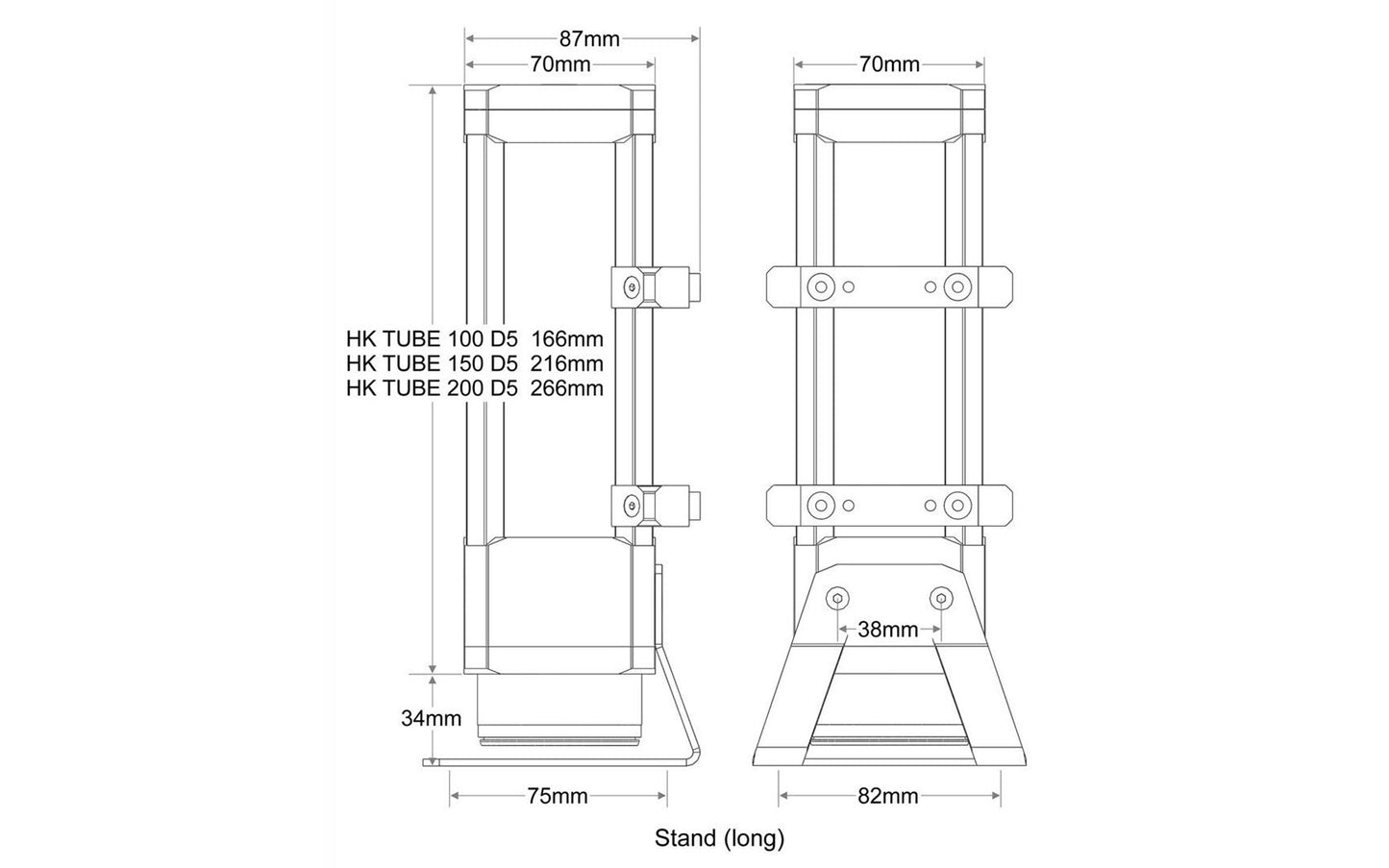

Dimensions (L x W x H): 70 x 70 x 293 mm (incl. pump)
Tube length: 200 mm
Tube diameter: 65 mm
Capacity: approx. 500 ml
Weight: approx. 960 g
Seals: NBR, VMQ
Connection thread: 4x G ¼ inch (DIN ISO 228-1)
Scope of delivery:
HEATKILLER® Tube 200 D5
assembly instructions

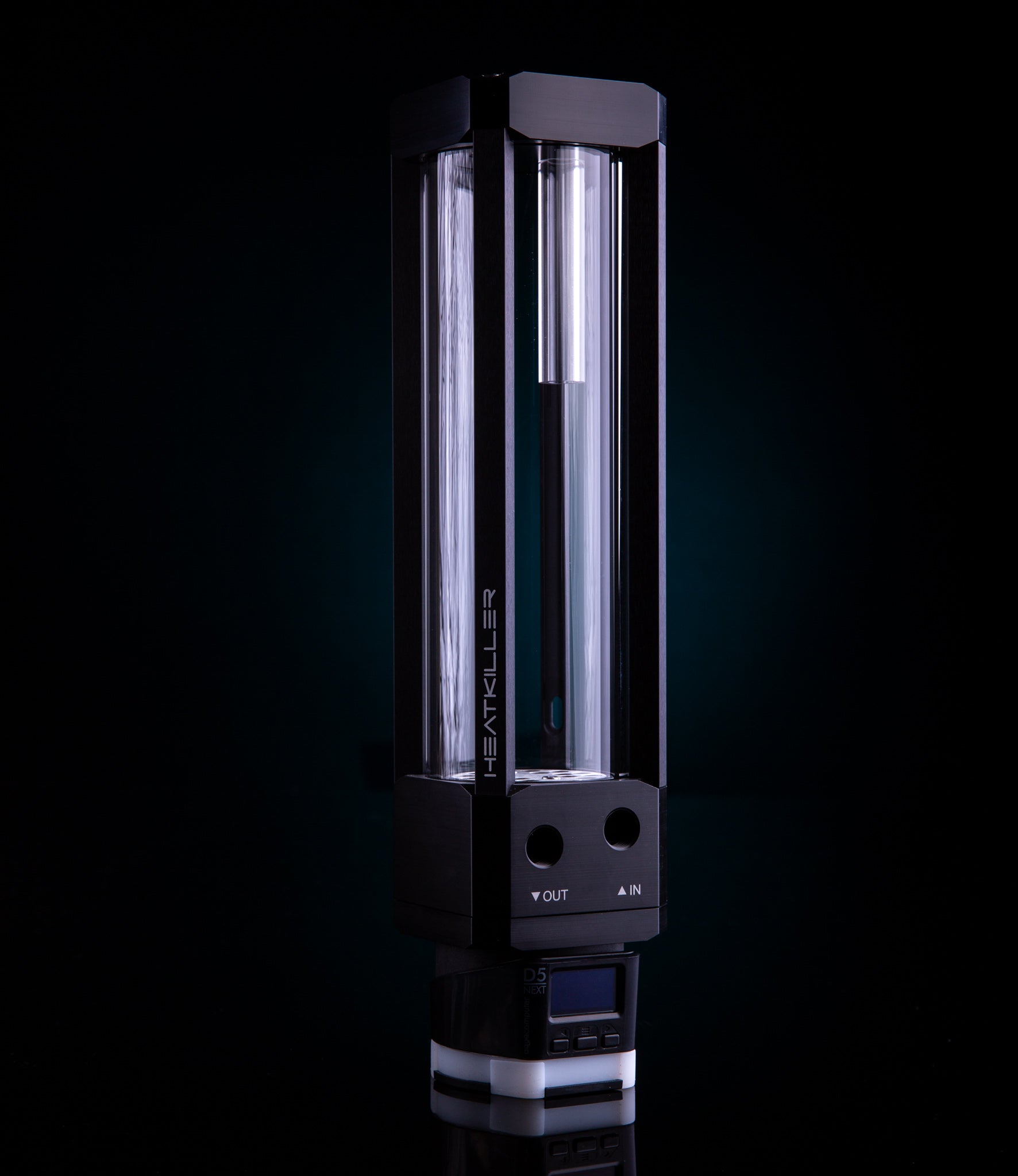

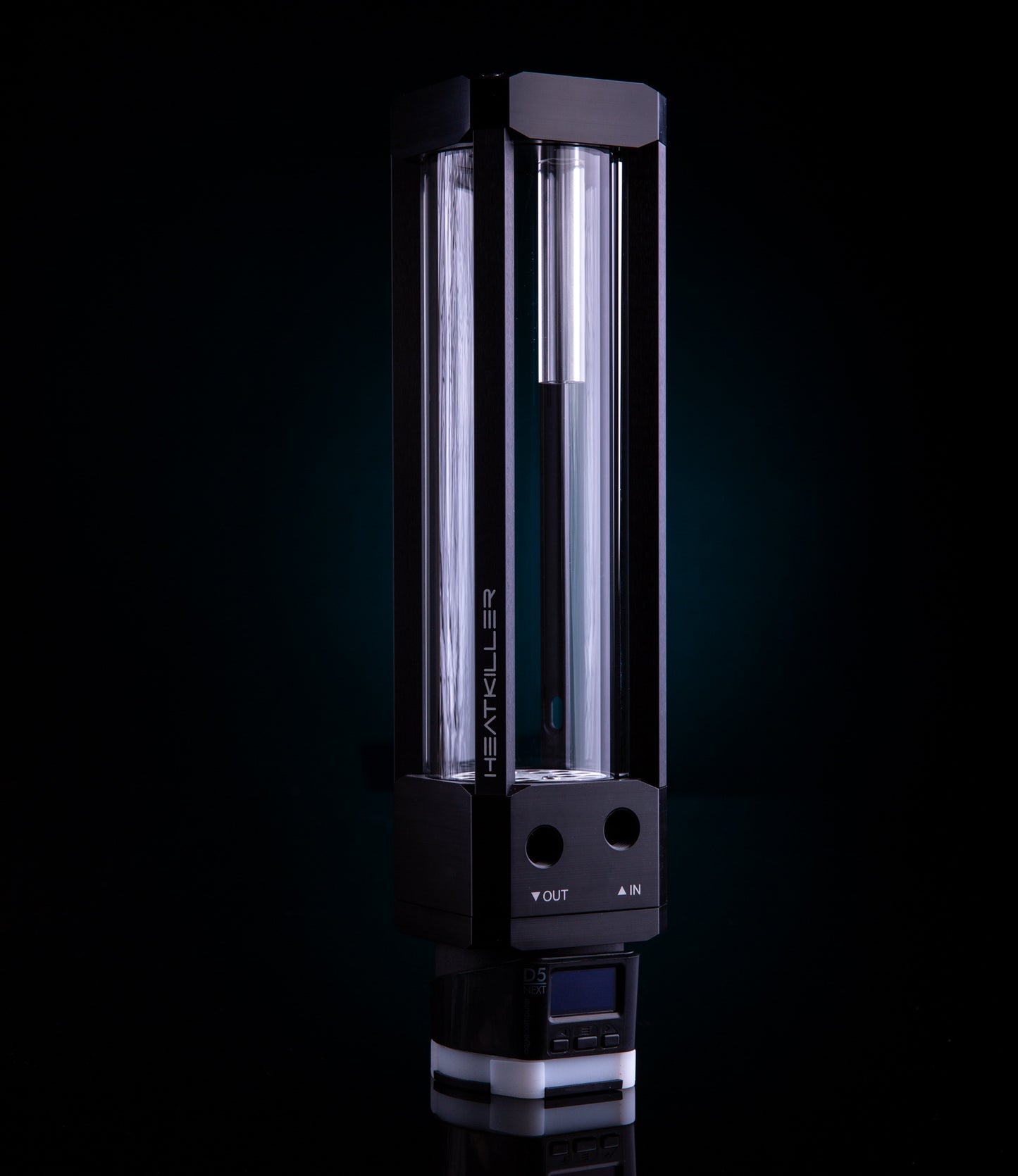

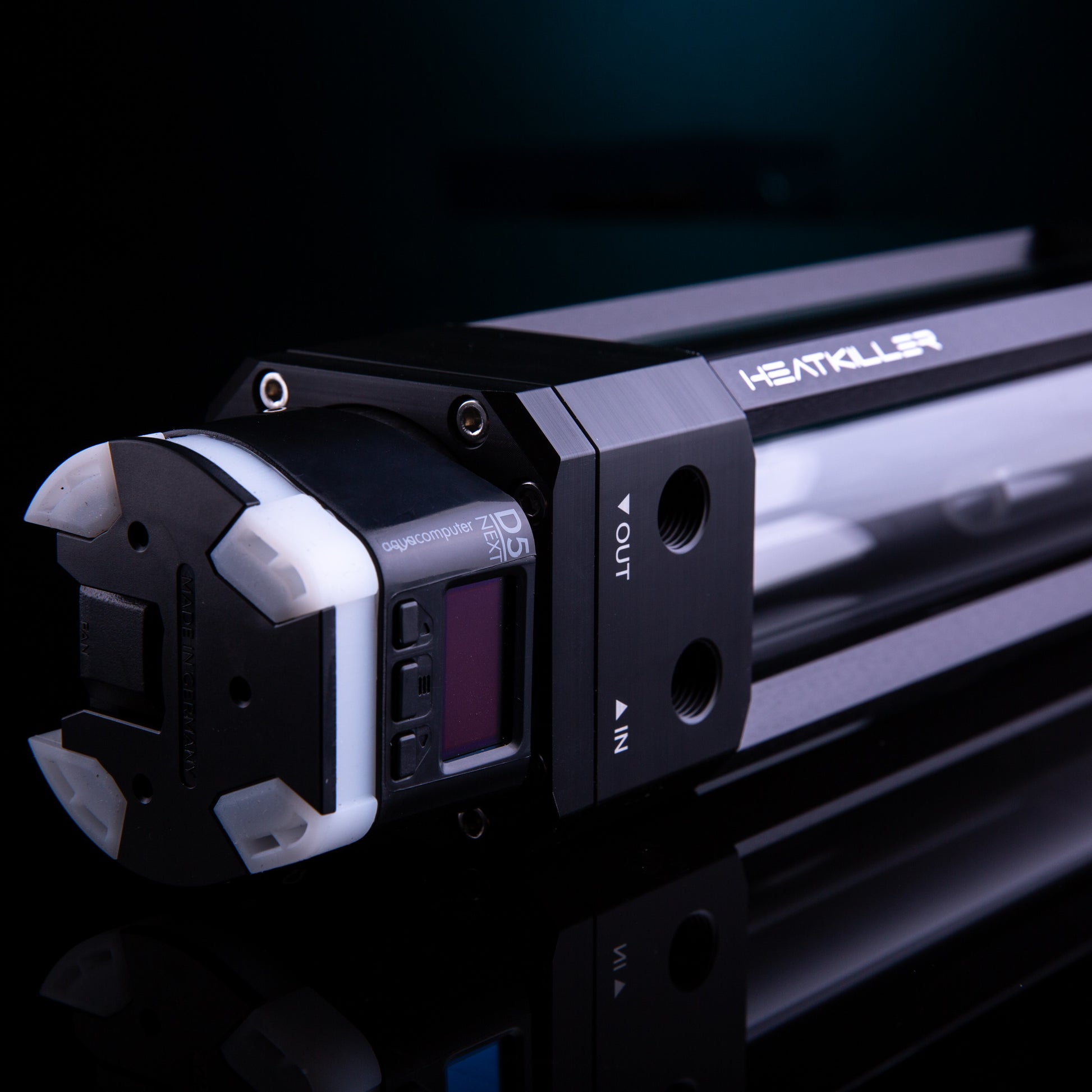

Note: Aquacomputer D5 Next pump not included, images only show assembly as an example
