Simple elegance meets technical grandeur
The HEATKILLER® Tube series is a modular collection of high-quality reservoirs with a borosilicate glass tube. It has many outstanding features, which are listed below.
Borosilicate glass tube
With borosilicate glass, Watercool rely on the best material currently available for the construction of expansion tanks. It offers high chemical and thermal resistance, low thermal expansion and scratch-resistant properties.
Different sizes for different builds
Watercool have manufactured Heatkiller® Tube in different sizes. This offers the possibility of being visually perfectly staged for all applications. The sizes 100mm, 150mm and 200mm cover everything from mini-ITX to the towering rigs.

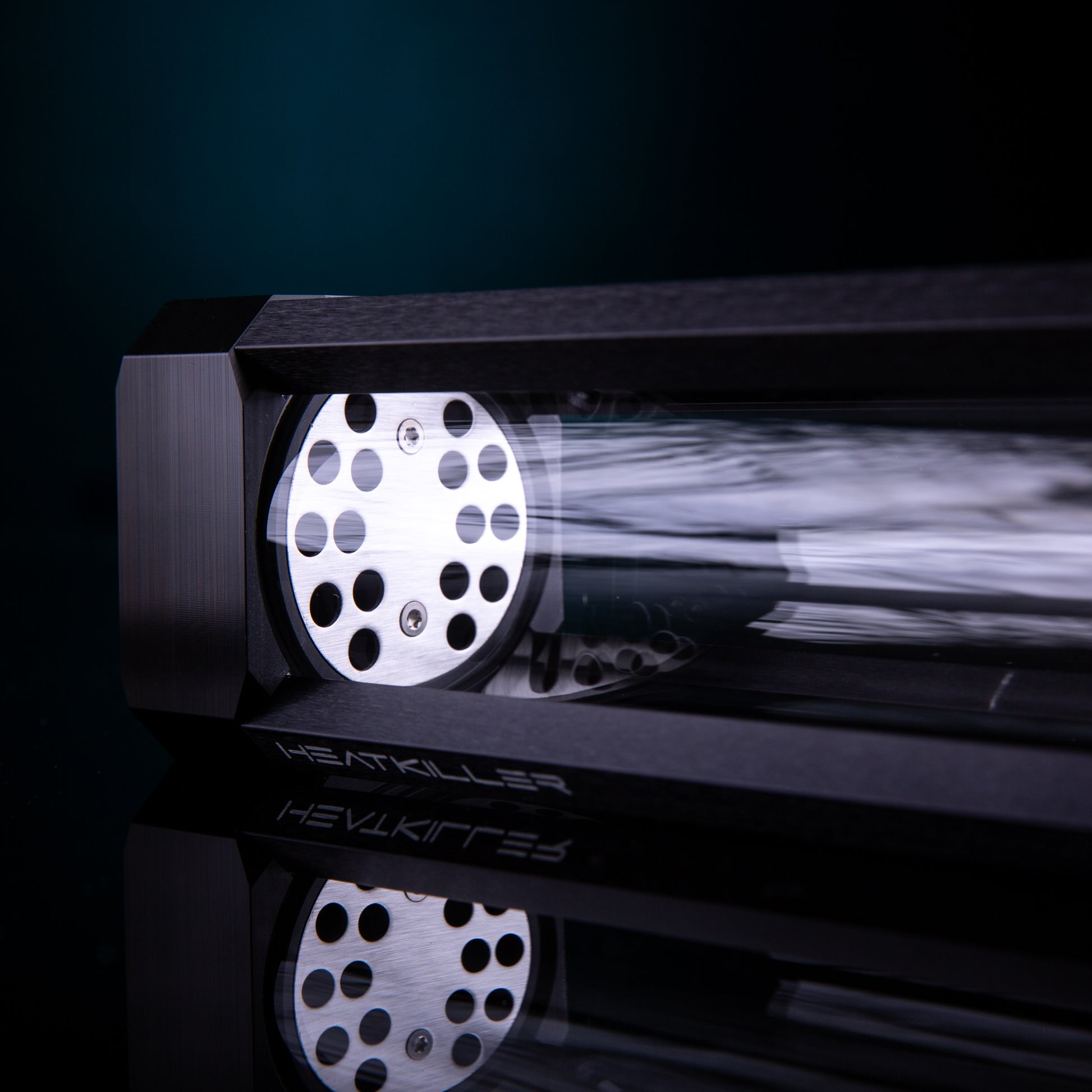

Anti-cyclone effect
With Watercool's newly developed inlay, the anti-cyclone effect has been eliminated. In other reservoirs, a "whirlpool" is sometimes created which can reduce the performance of your cooling loop and increase noise.
Available with a Standard large opening lid or a Multiport top
Made in Germany
The production takes place with the greatest care on Watercool's ultra-modern CNC machine park in Waren-Müritz. Many work steps are carried out by hand and each product is brought to perfection according to the four-eyes principle. Made in Germany as you would imagine.
Technical data:
Material upper part: POM
Material struts: aluminum - black anodized
Material tube: borosilicate glass
Material lower part: POM
Material inlay; Stainless steel

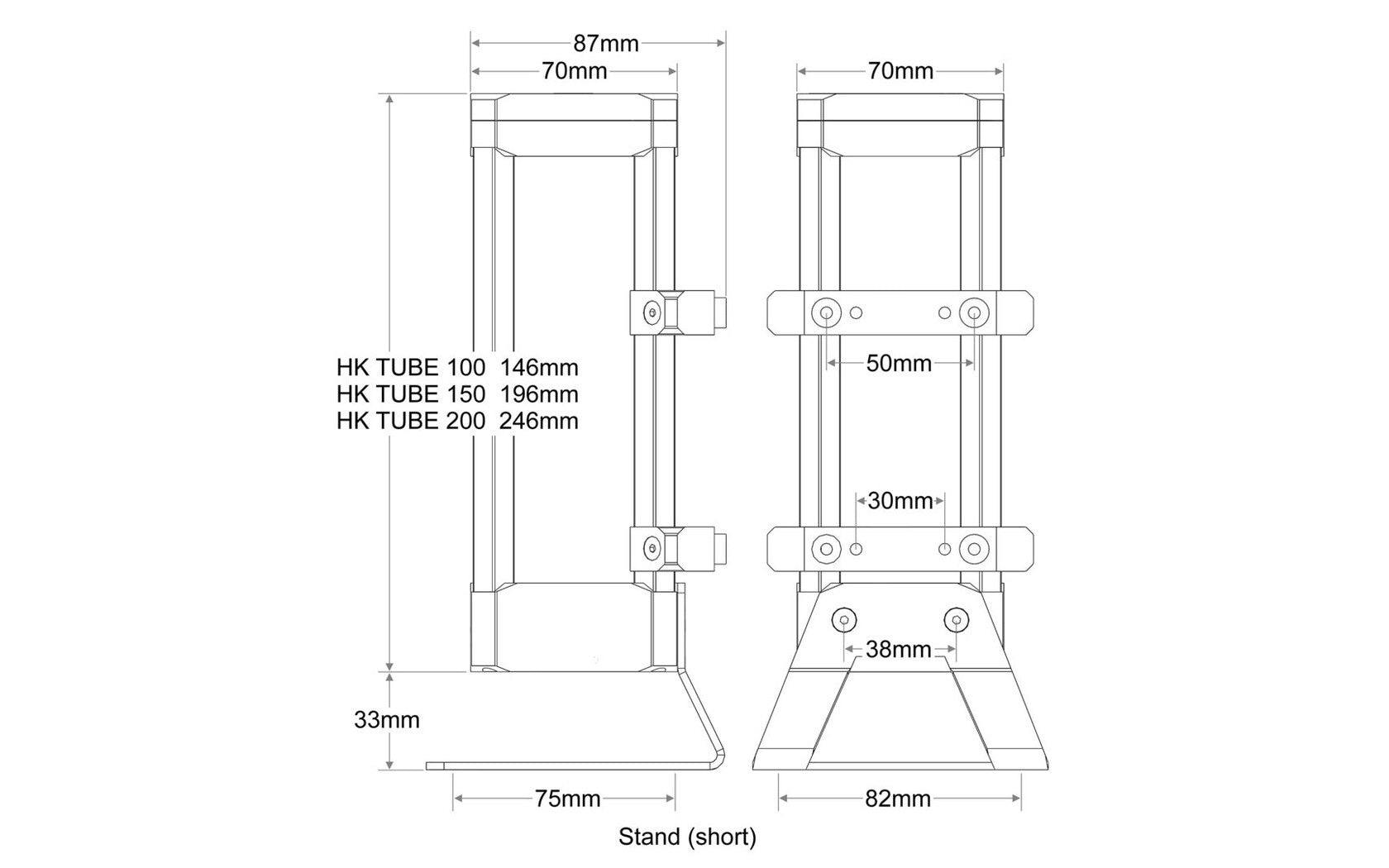

Dimensions (L x W x H): 70 x 70 x 246 mm
Tube length: 200 mm
Tube diameter: 65 mm
Capacity: approx. 500 ml
Weight: approx. 950 g
Seals: NBR, VMQ
Connection thread: 4x G ¼ inch ( DIN ISO 228-1)
Scope of delivery:
HEATKILLER® Tube 200
assembly instructions
