Koolance QD3 Female Quick Disconnect No-Spill Coupling, Threaded G 1/4 BSPP - Chrome
Koolance QD3 Female Quick Disconnect No-Spill Coupling, Threaded G 1/4 BSPP - Chrome
Regular price
$45.00 AUD
Regular price
Sale price
$45.00 AUD
Unit price
per
GST included.
Shipping calculated at checkout.
Couldn't load pickup availability

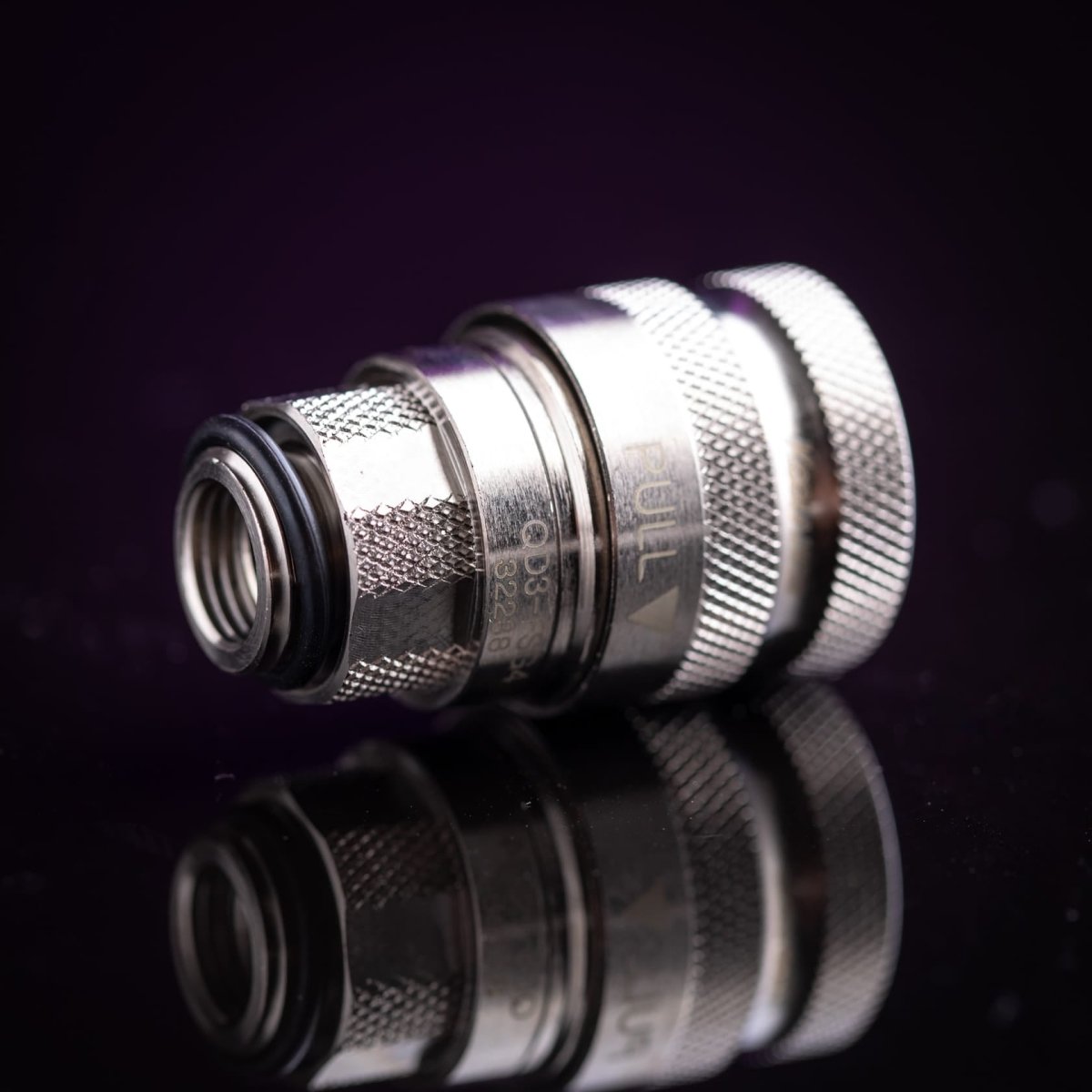

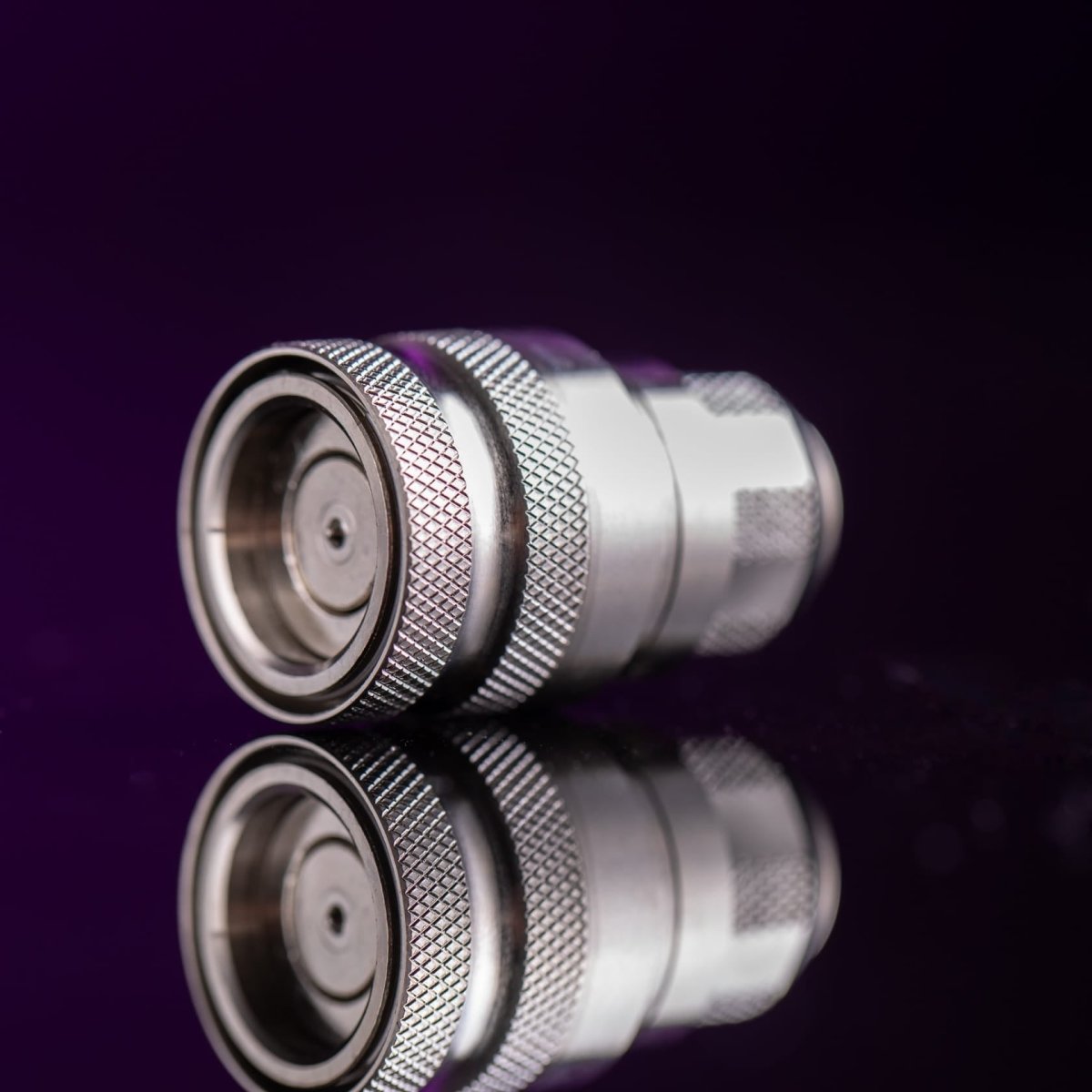

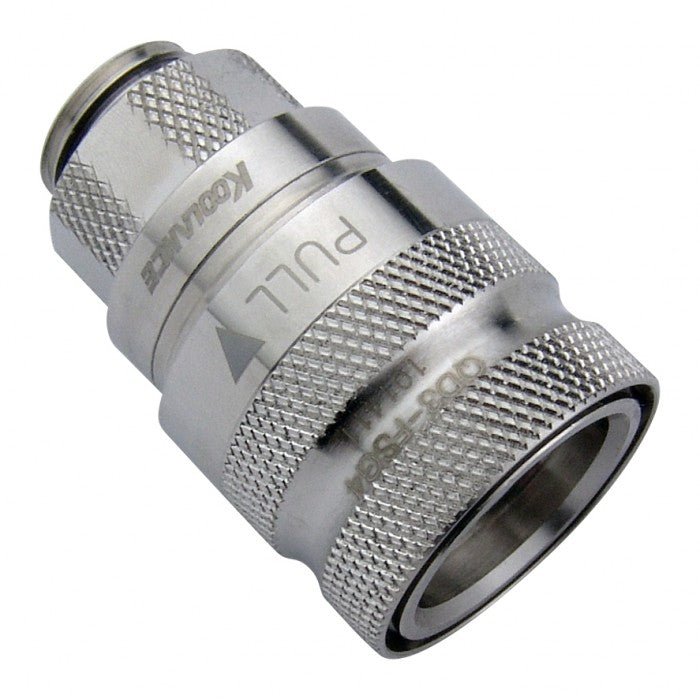

Koolance patented quick disconnect no-spill coupling with automatic shutoff. 10mm (3/8in) ID, 16mm (5/8in) OD female straight connection with BSPP G1/4 male fitting. It will only fit a Koolance QD3 male quick disconnect.
After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 0.5kgf/cm2 (7psi).
| eneral | |
| Weight | 0.17 lb (0.08 kg) |
| Fitting Thread | G 1/4 BSPP |
| Max No-Spill Pressure | 0.5kgf/cm2 (7psi) |
| Max Pressure Tolerance @ 25°C | 8kgf/cm2 (113.8psi) |
| Max Temperature Tolerance | 80°C (176°F) |
| Min Pressure Tolerance @ 25°C | -1.0kgf/cm2 (-14psi) |
| Min Storage Temperature (*No Freezing) | -20ºC (-4ºF) |
| Seal Material | EPDM (Water/Glycol Liquids) |
| Wetted Materials | Brass, Nickel Plating, Stainless Steel, EPDM |
