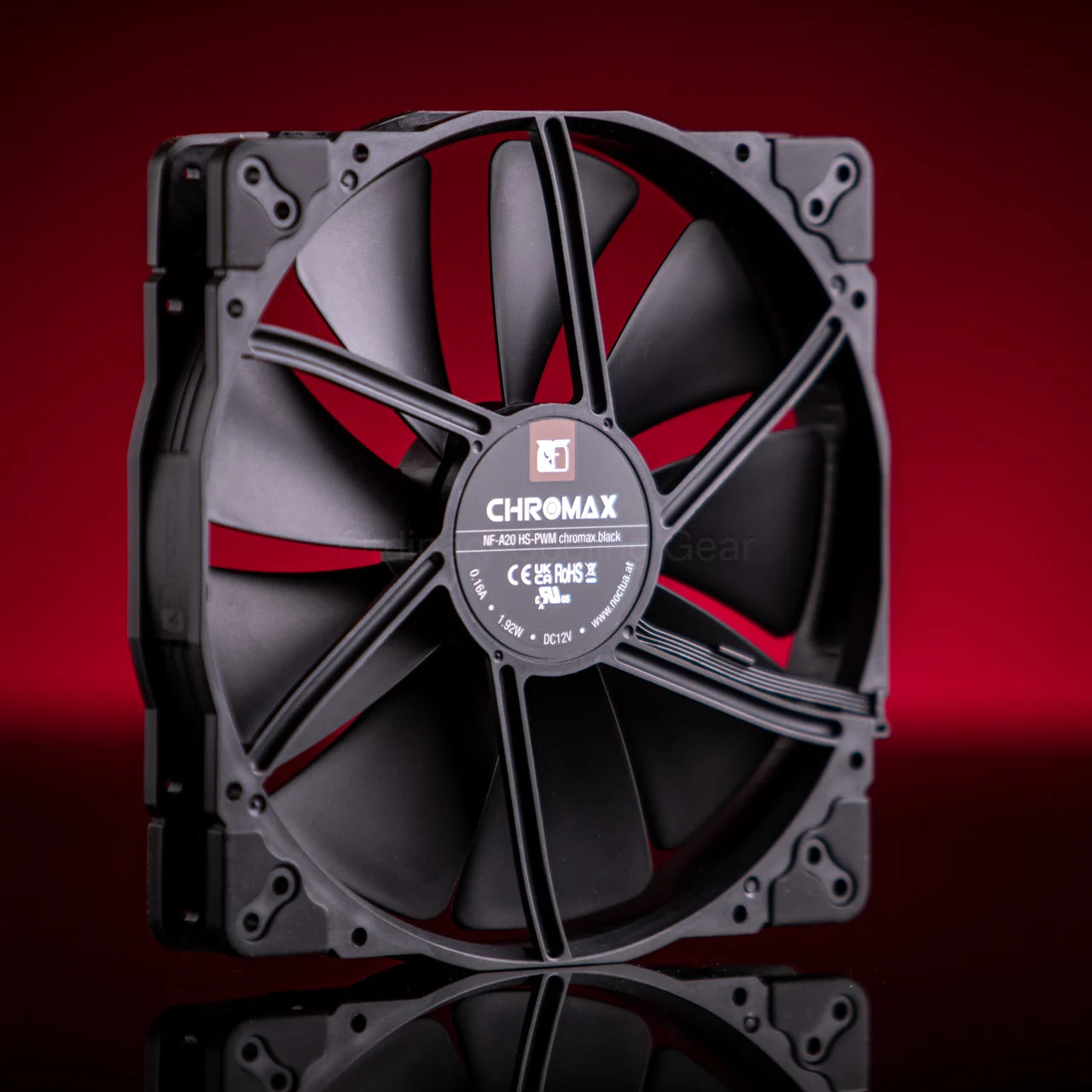

Noctua NF A20 HS-PWM Chromax Black High Speed (1200rpm)

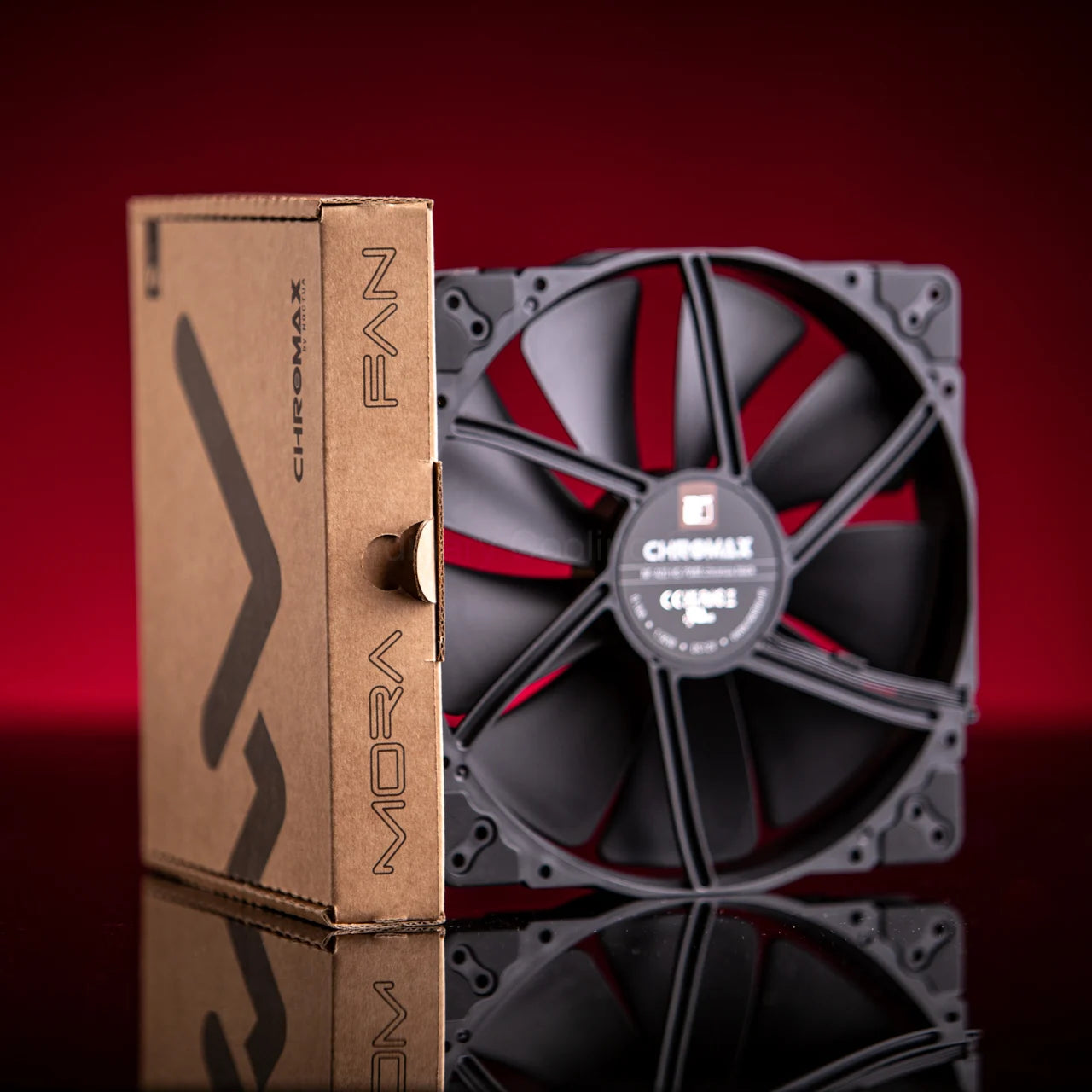

The "MO-RA FAN"

Noctua's NF-A20 has received numerous awards and recommendations from international hardware websites and magazines and has established itself as the reference for premium quality 200mm fans. The HS-PWM (High-Speed-PWM) version, available exclusively in Australia at OC Gear, offers an increased speed of 1200rpm in addition to the attractive all-black chromax.black design, achieving an over 40% increased airflow and more than 90% higher static pressure compared to the regular PWM version at 800rpm.


Award-winning NF-A20 design

Having received dozens of recommendations from the international press, Noctua’s NF-A20 has become a proven premium choice for 200mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.

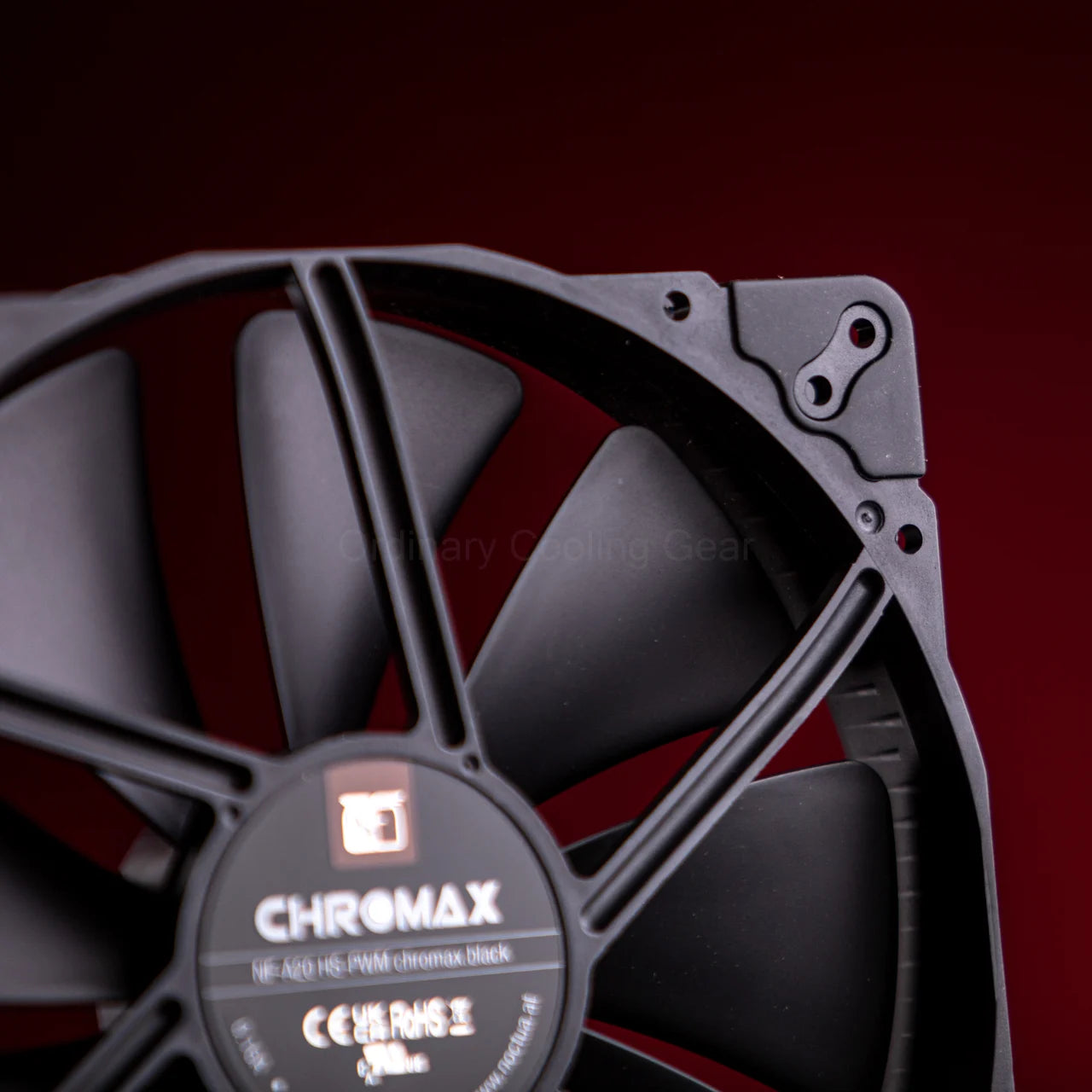

154mm, 110x180mm and 170mm hole spacing

In order to ensure broad compatibility with today’s PC cases, the NF-A20 features three sets of mounting holes: While the 154x154mm and 110x180mm spacing allow it to replace most 200mm fans, the 170x170mm spacing is used by many 230 and 250mm fans, which can thus also be replaced by the NF-A20.

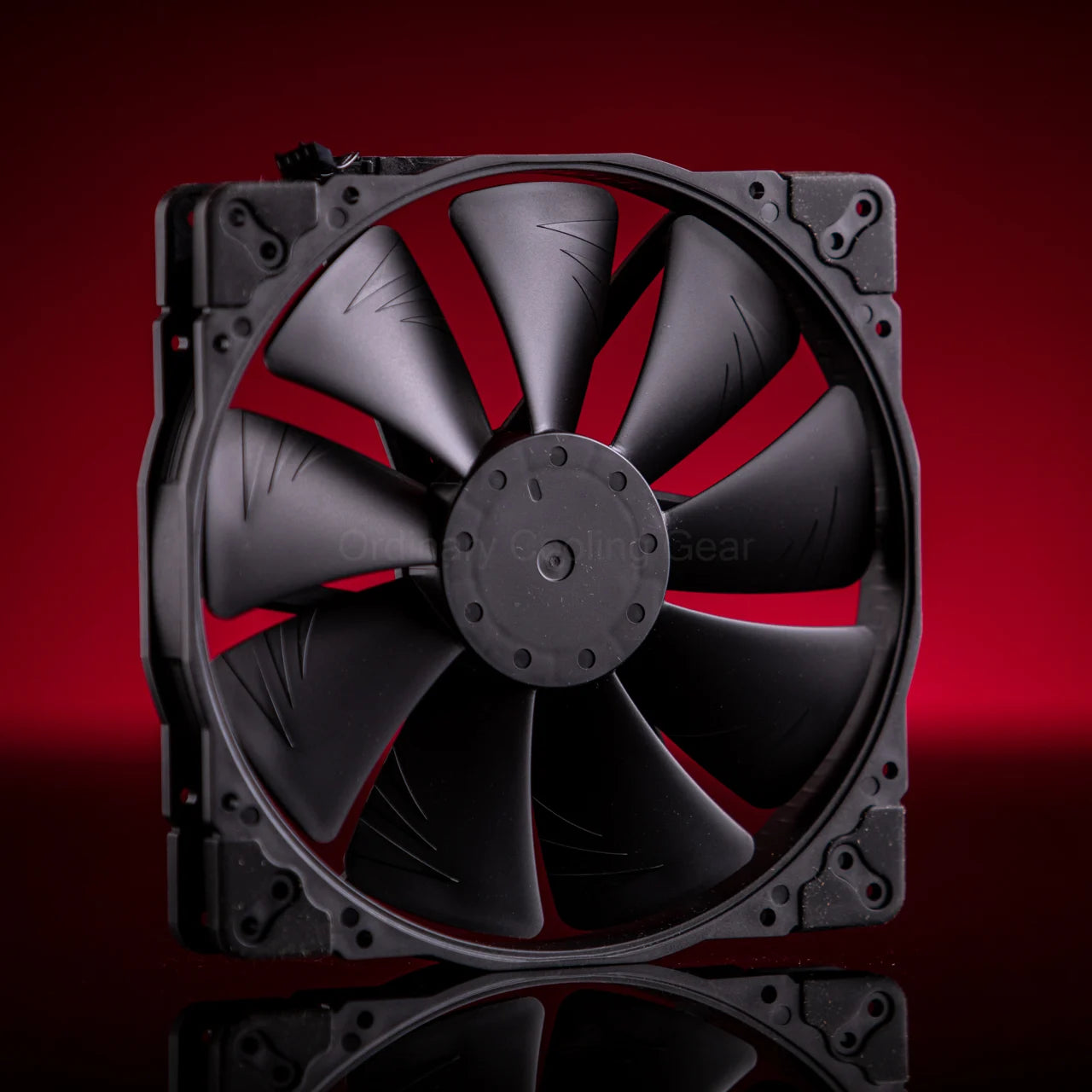

Flow Acceleration Channels

The NF-A20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.


AAO Frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise Efficiency.


Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted Environments.


Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure Efficiency.


SSO2 bearing

The NF-A20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.


Metal bearing Shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the chromax edition fans sport a CNC milled bearing shell made entirely from brass.


Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low Speeds.


6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A20 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.


Technical data:
Dimensions: 200 x 200 x 30 mm (W x H x D)
Material: plastic, black
Acoustical noise: ~10.7 - 31.6 depending on speed
Speed: ~500 -1200 rpm
Airflow : approx. 212.3 m³/h
Air pressure: 2,07 mmH2O
Voltage: 12 V

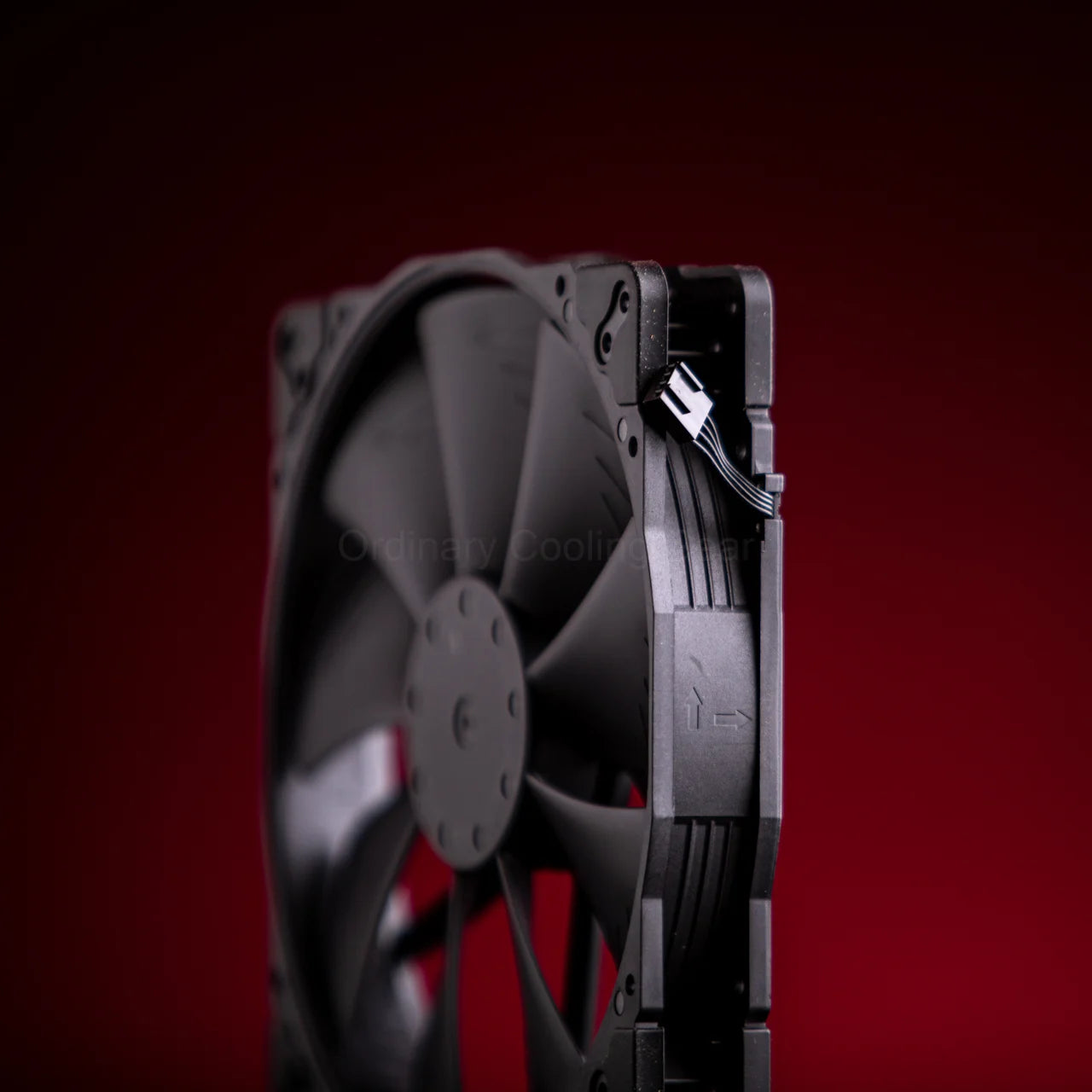

Connector: 4-pin PWM
Life expectancy : 150,000 h
Power consumption: 1.92W
Warranty: 6 years

*As there is no fixed industry standard for the size or hole spacing of 200mm, 220mm, 230mm or 250mm fans, please see the case compatibility list and carefully check both the hole setup of your chassis and the available space (the NF-A20 is 30mm thick whereas some other 200mm fans are only 20mm!) in order to verify that the NF-A20 is compatible with your chassis. In case of doubt, please contact your chassis manufacturer.
