Ordinary Cooling Gear
Raijintek Antila D5 EVO RBW Pump and Reservoir Combo - White
Raijintek Antila D5 EVO RBW Pump and Reservoir Combo - White
Regular price
$300.00 AUD
Regular price
Sale price
$300.00 AUD
Unit price
/
per
GST included.
Shipping calculated at checkout.
Couldn't load pickup availability

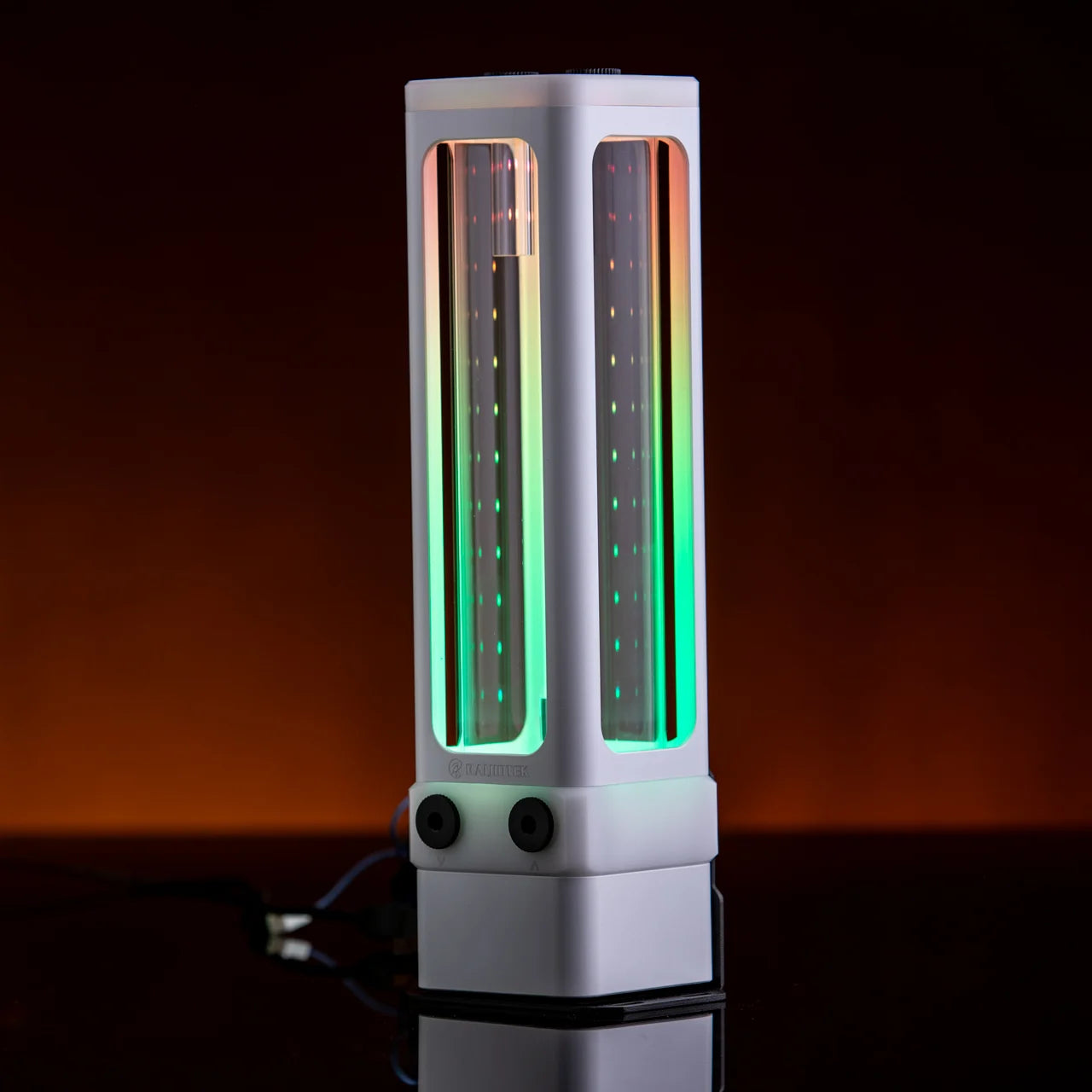

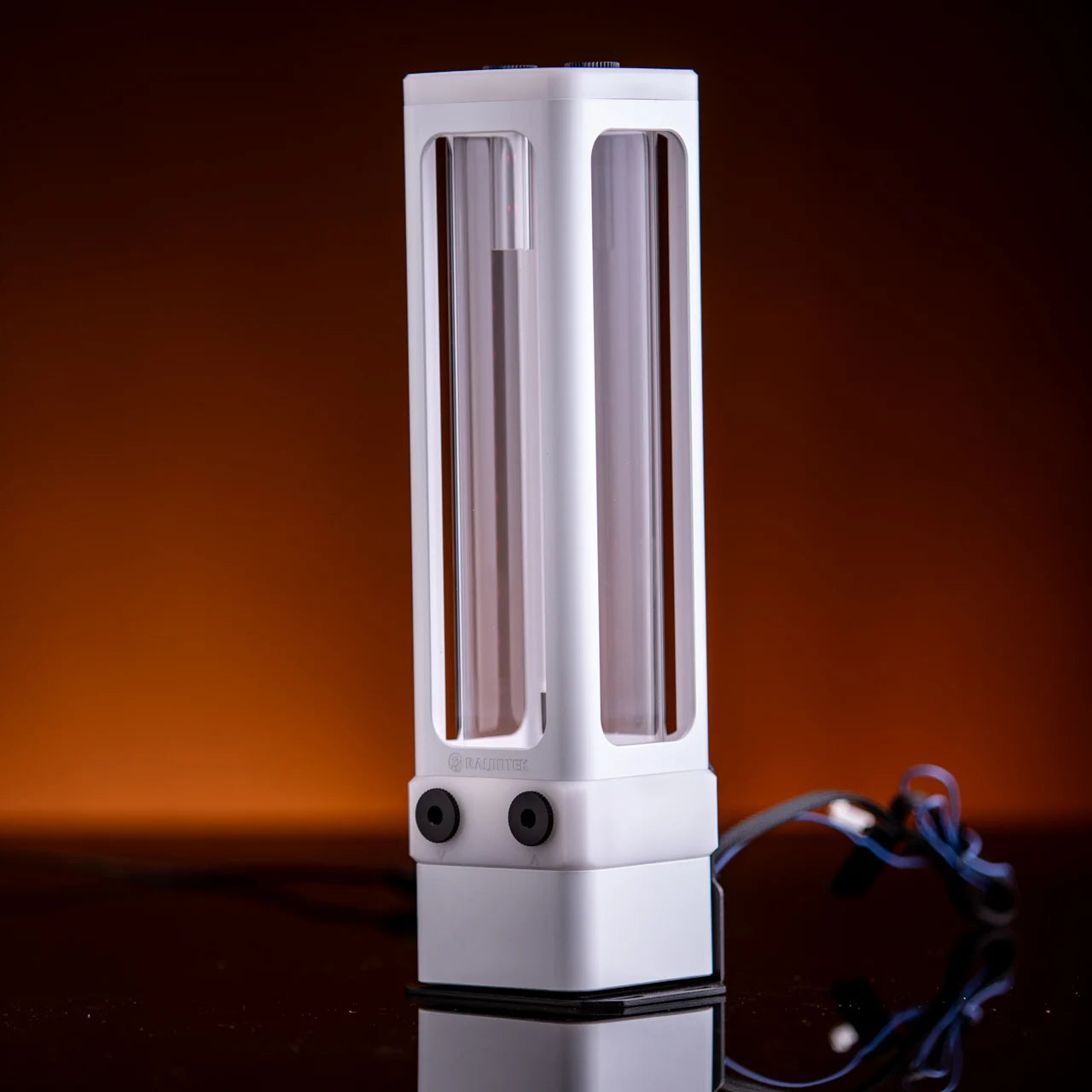

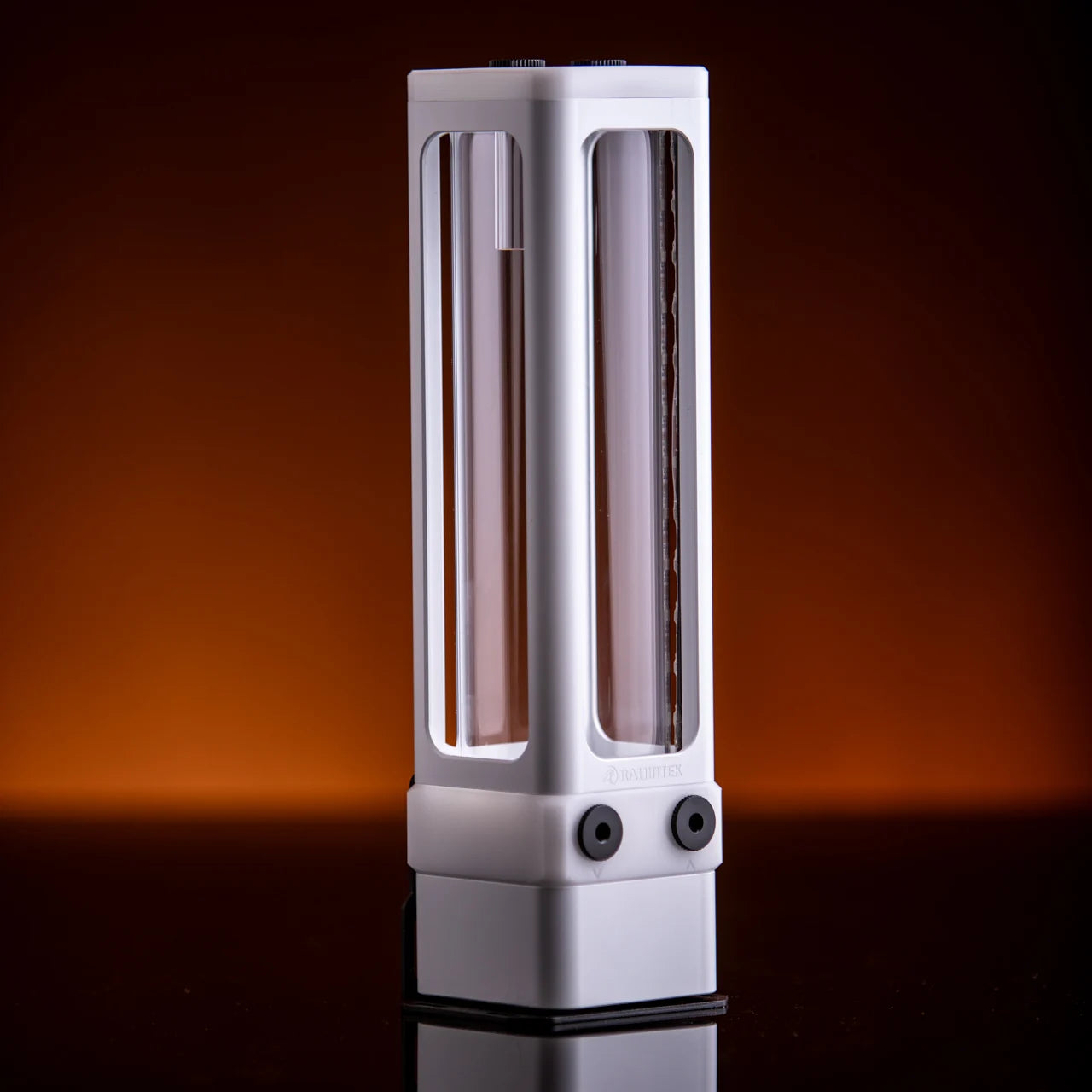

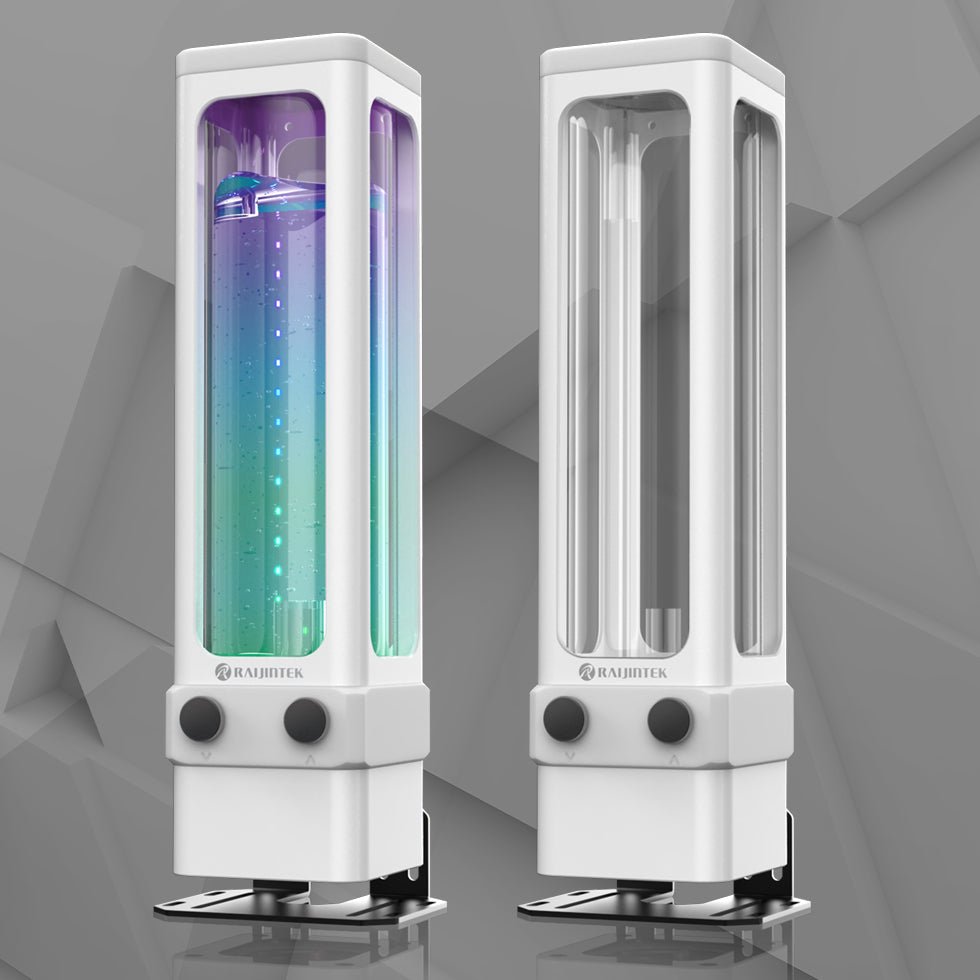

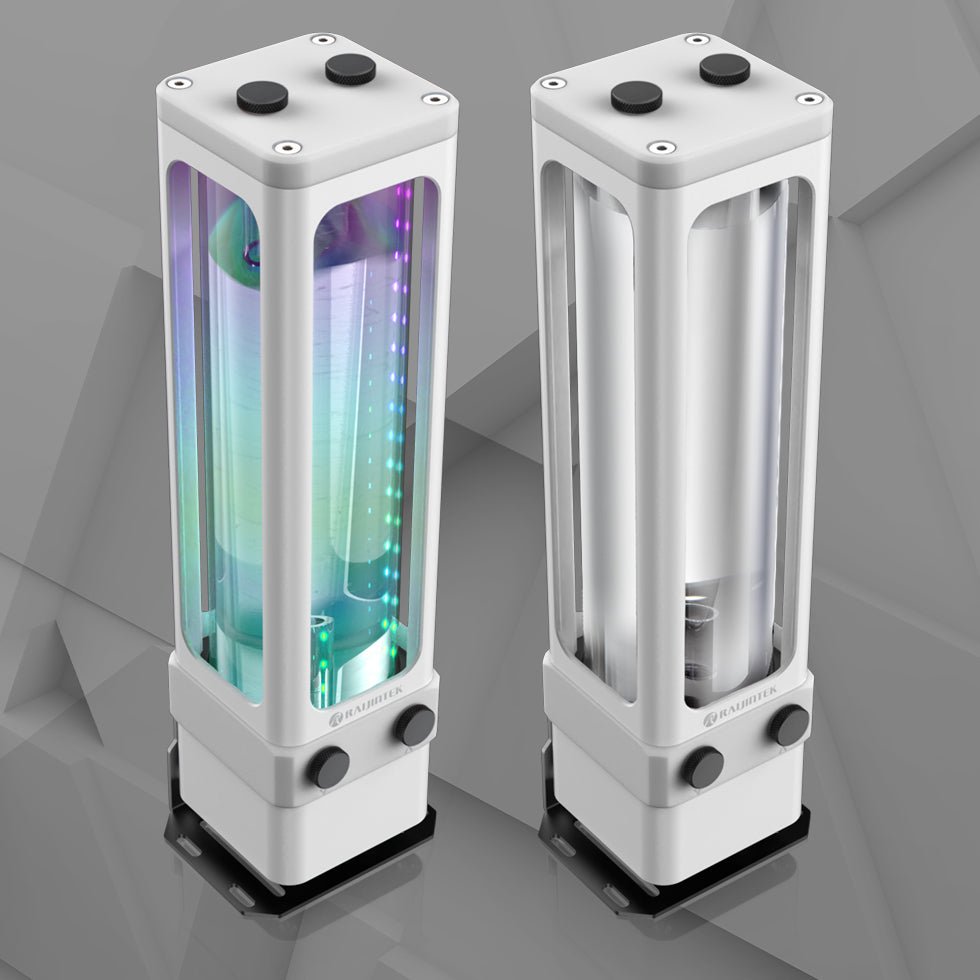

Raijintek’s ANTILA D5 EVO RBW pump and reservoir is a factastic for PC enthusiasts and custom PC Modder’s who after that full white build. The pump and reservoir unit also features a Lowara D5 Vario pump unit; these pumps are know for their legendary performance and reliability.

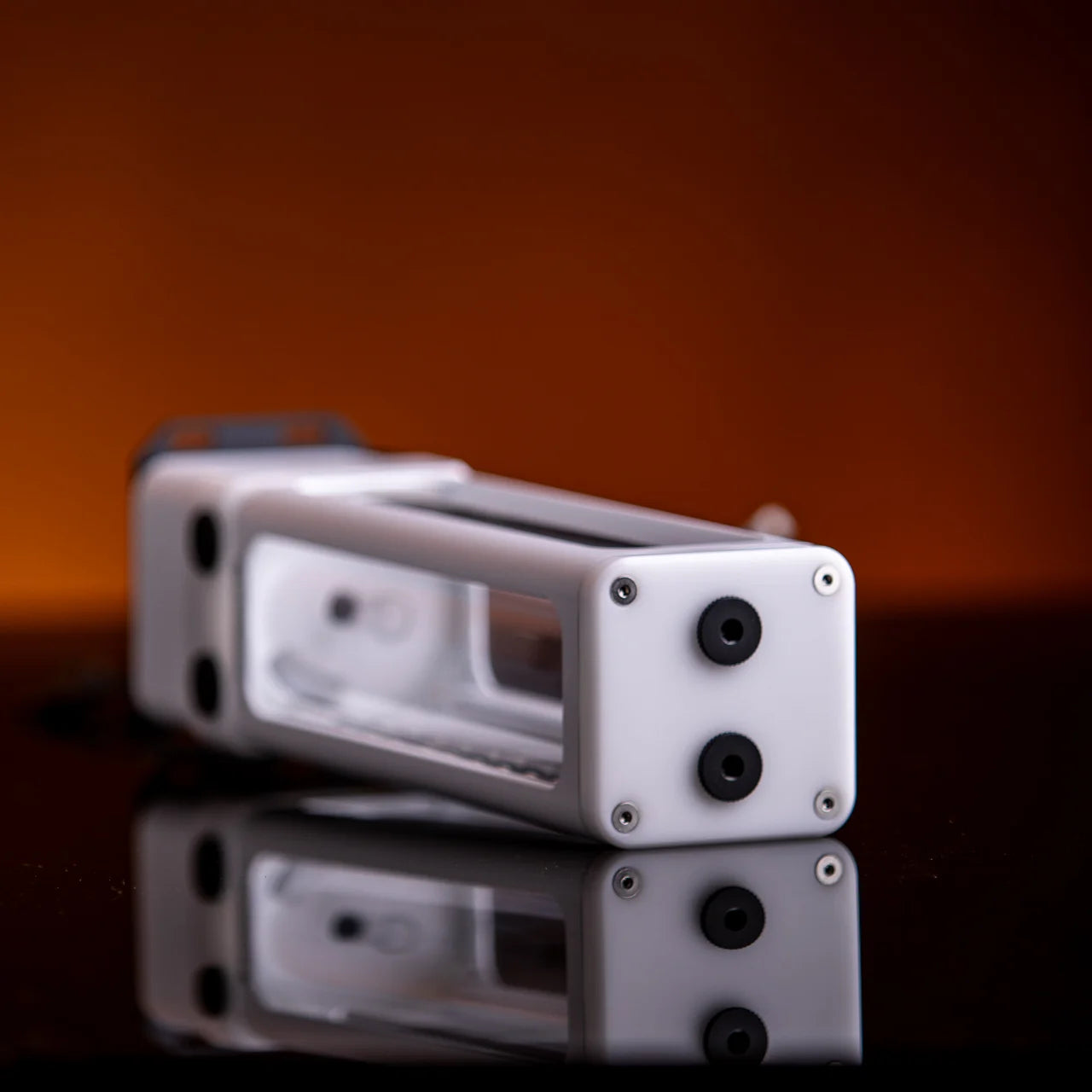

Constructed from an aluminium outer (not in contact with coolant), acetal bottom and top and a glass tube structure, this reservoir will provide all the aesthetics without compromising on durability and function.

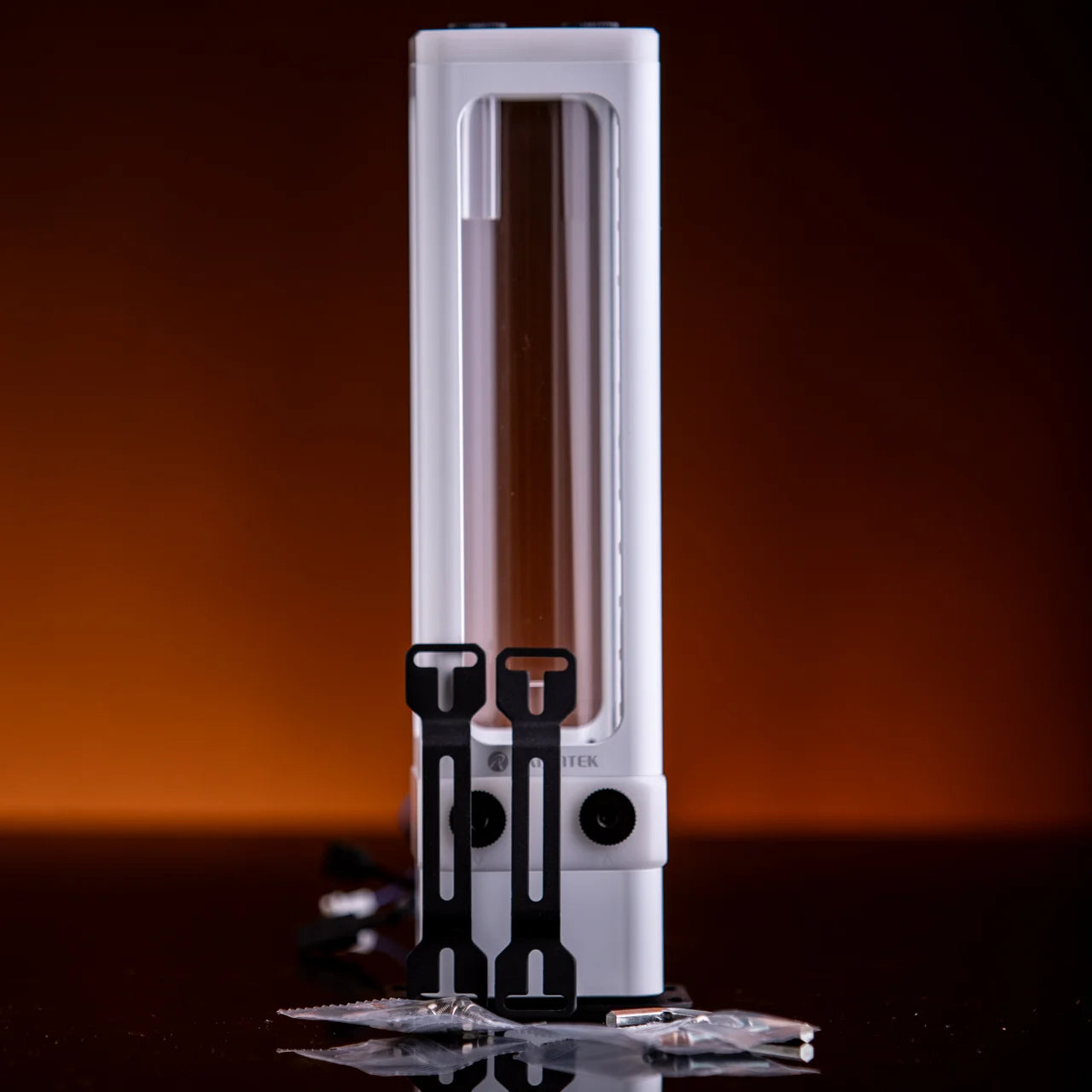

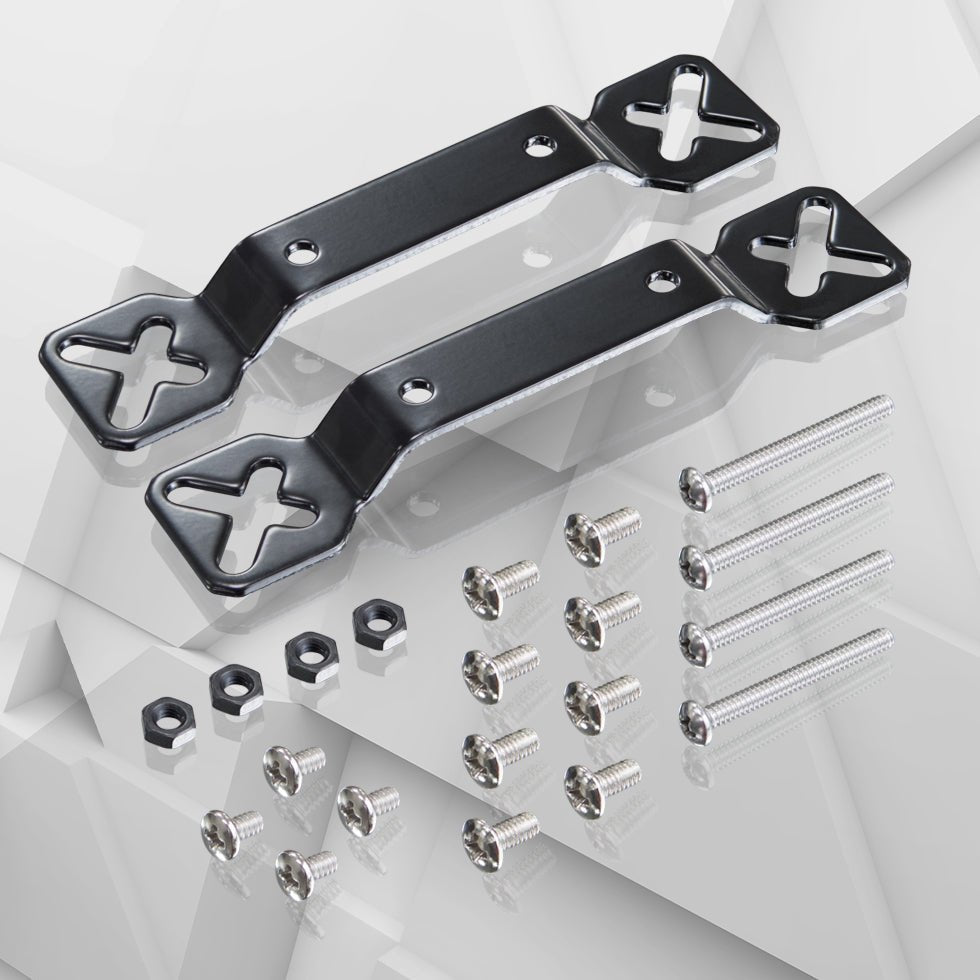

Bracket mounting options are also included with the unit to mount onto radiators
| SPECIFICATION | |
| Product Name | ANTILA D5 EVO RBW WHITE |
| Product Number | 0R40B00254 |
| Q'ty | 1 pcs |
| Dimension [W×D×H] | 80×95×305 mm [with Bracket] |
| Reservoir Dimension | 60×60×220 mm |
| Coolant Capacity | 750 ml |
| Material | POM + Glass + Aluminum + Steel |
| Weight | 1260 g |
| Screw Threads | G 1/4" |
| Bearing type | Ceramic Bearing |
| Maximum Head | 4 meter |
| Maximum Discharge | 1500 L/H |
| Maximum Pressure | 50 PSI |
| Life Expectance | 50,000 hrs |
| Noise Level | 40 dBA [Max.] |
| Speed Setttngs | P2 : 2,500 RPM |
| P3 : 3,300 RPM | |
| P4 : 4,000 RPM | |
| P5 : 4,800 RPM | |
| P2 : 2,500 RPM | |
| P3 : 3,300 RPM | |
| P4 : 4,000 RPM | |
| P5 : 4,800 RPM | |
| Voltage Rating | DC12V |
| Input Current | 2.5A ±10% |
| Connector | |
| 2510-3P [NA / NA / Fg ] | |
| 2510-3P [NA / NA / Fg ] | |

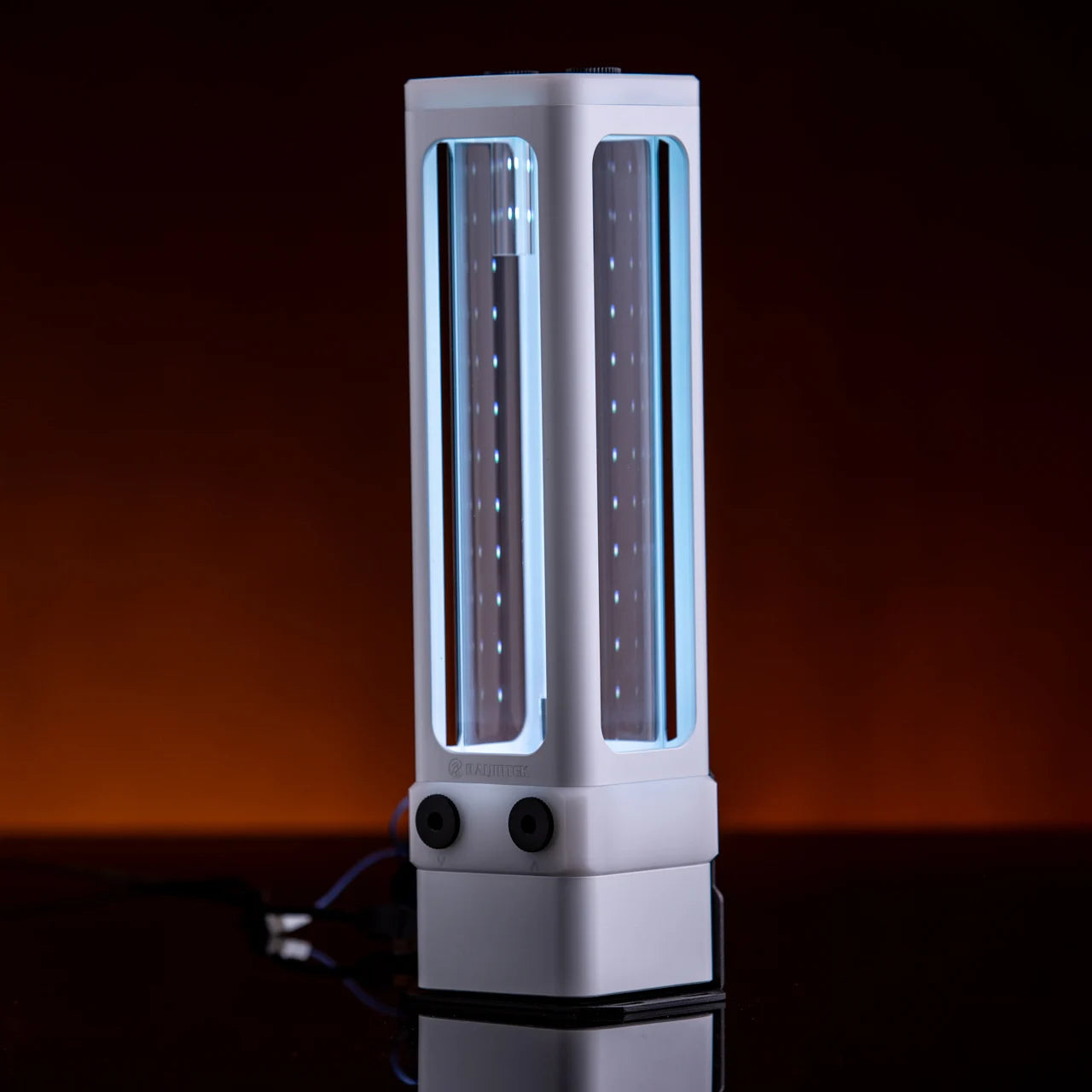

| Addressable LED | 12 LED Rainbow (4pin header, 2510 spec) – Addressable LED |
| LED Control Method | Motherboard control / Remote control (by using Raijintek control hub) |
| LED Input Connector | 4-PIN header (2.5 Crimp) |
| LED Voltage Rating | 5V |
| Lighting Mode | By MB software or 20 Lighting MODE & 7 different static color choices by Raijintek's 5V ADD control hub |
