Singularity Computers 360mm D5 Reservoir Combo Distribution Plate

Singularity Computers 360mm D5 Reservoir Combo Distribution Plate

Regular price $405.00 AUD
Regular price Sale price $405.00 AUD
Sale Coming Soon!
GST included. Shipping calculated at checkout.
Cover Colour/Finish Options
D5 Cover Colour

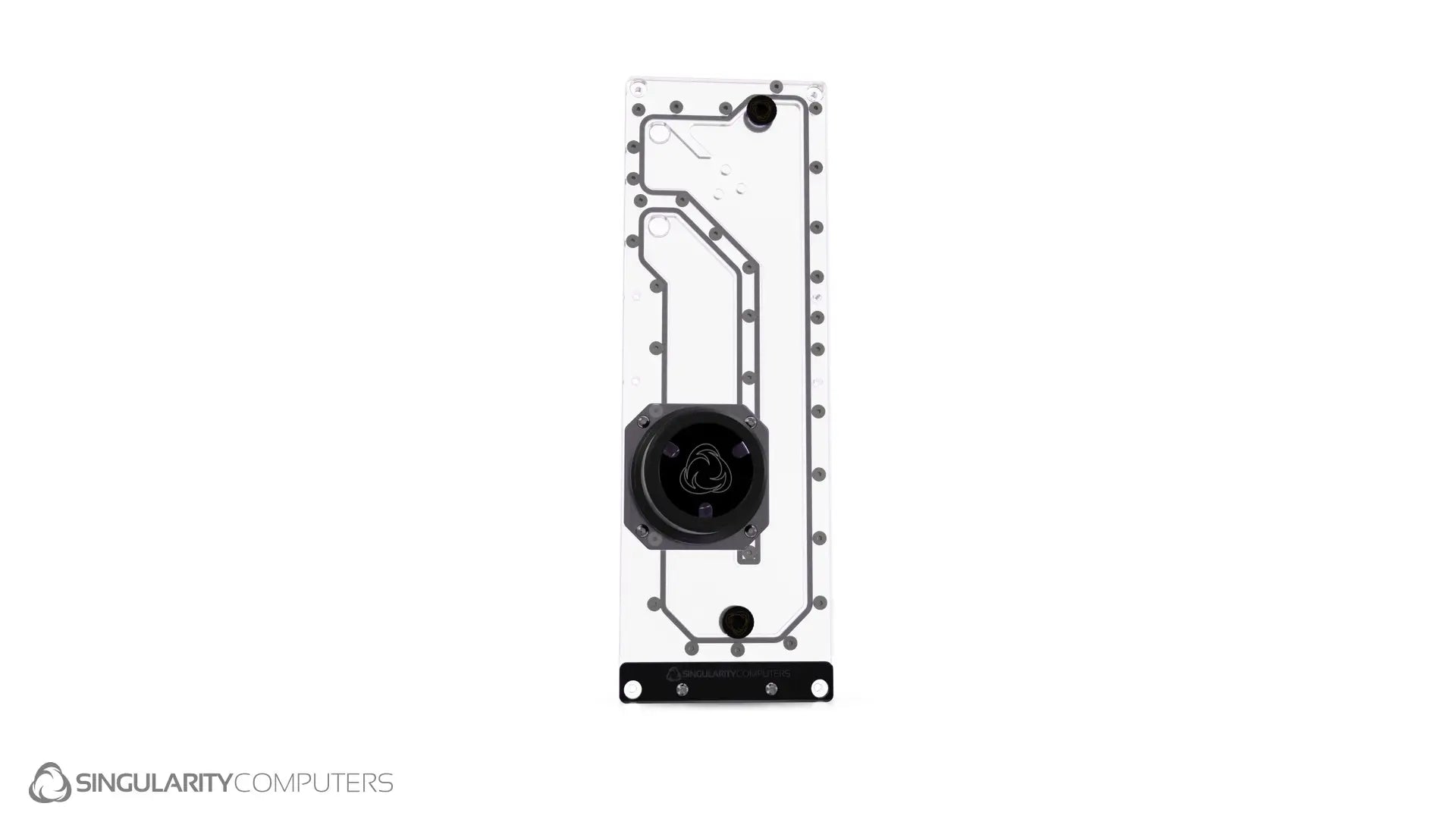

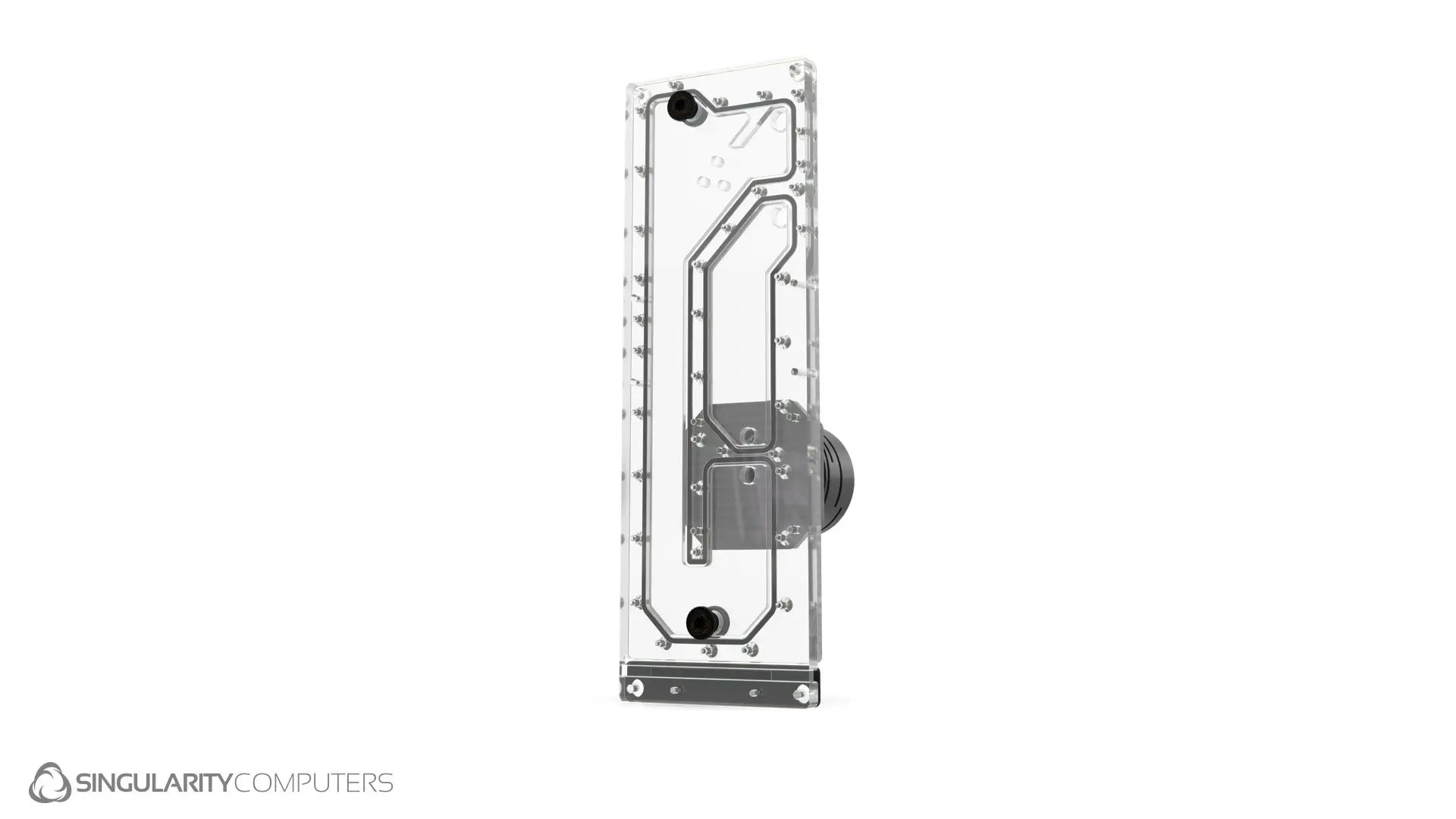

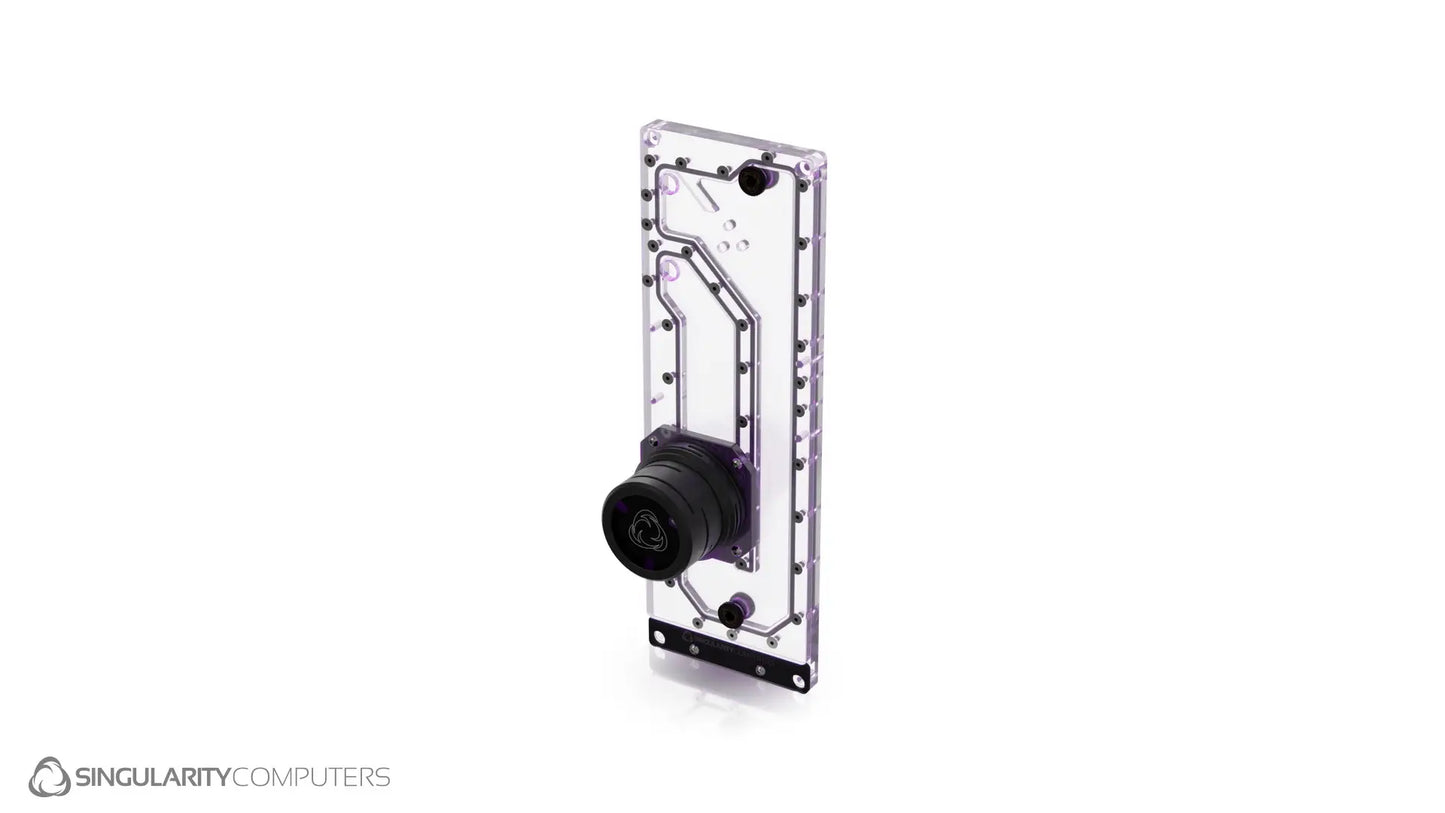

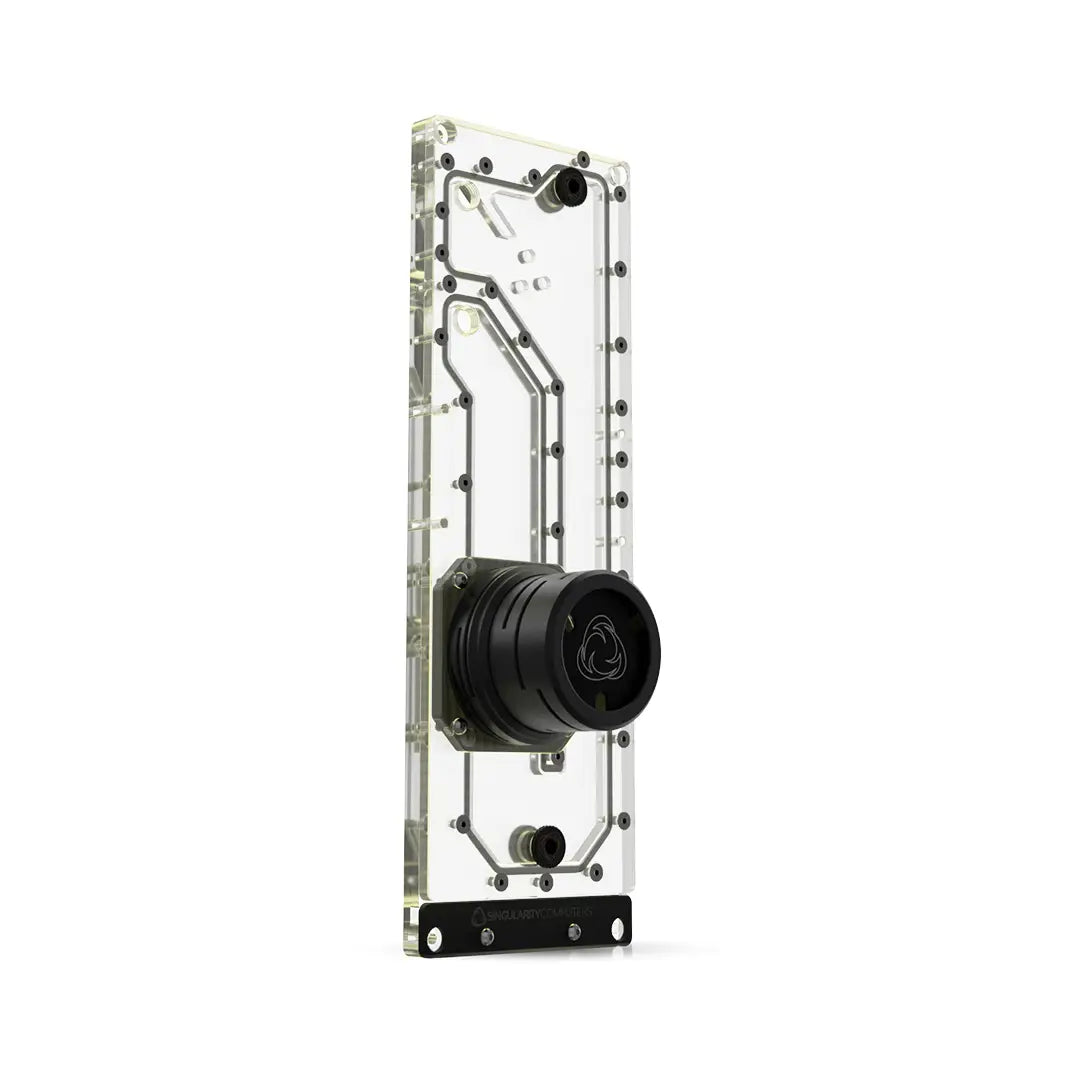

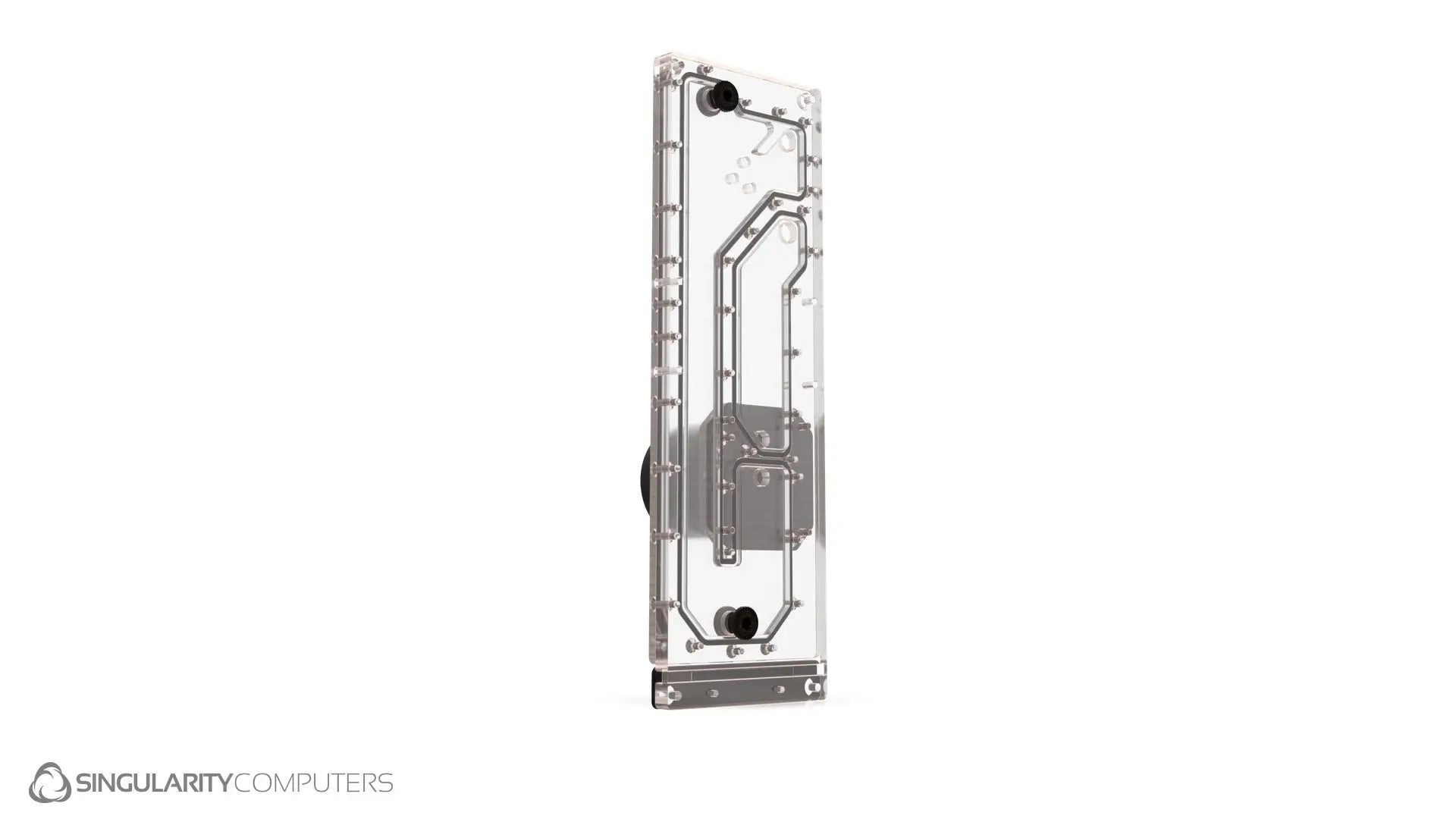

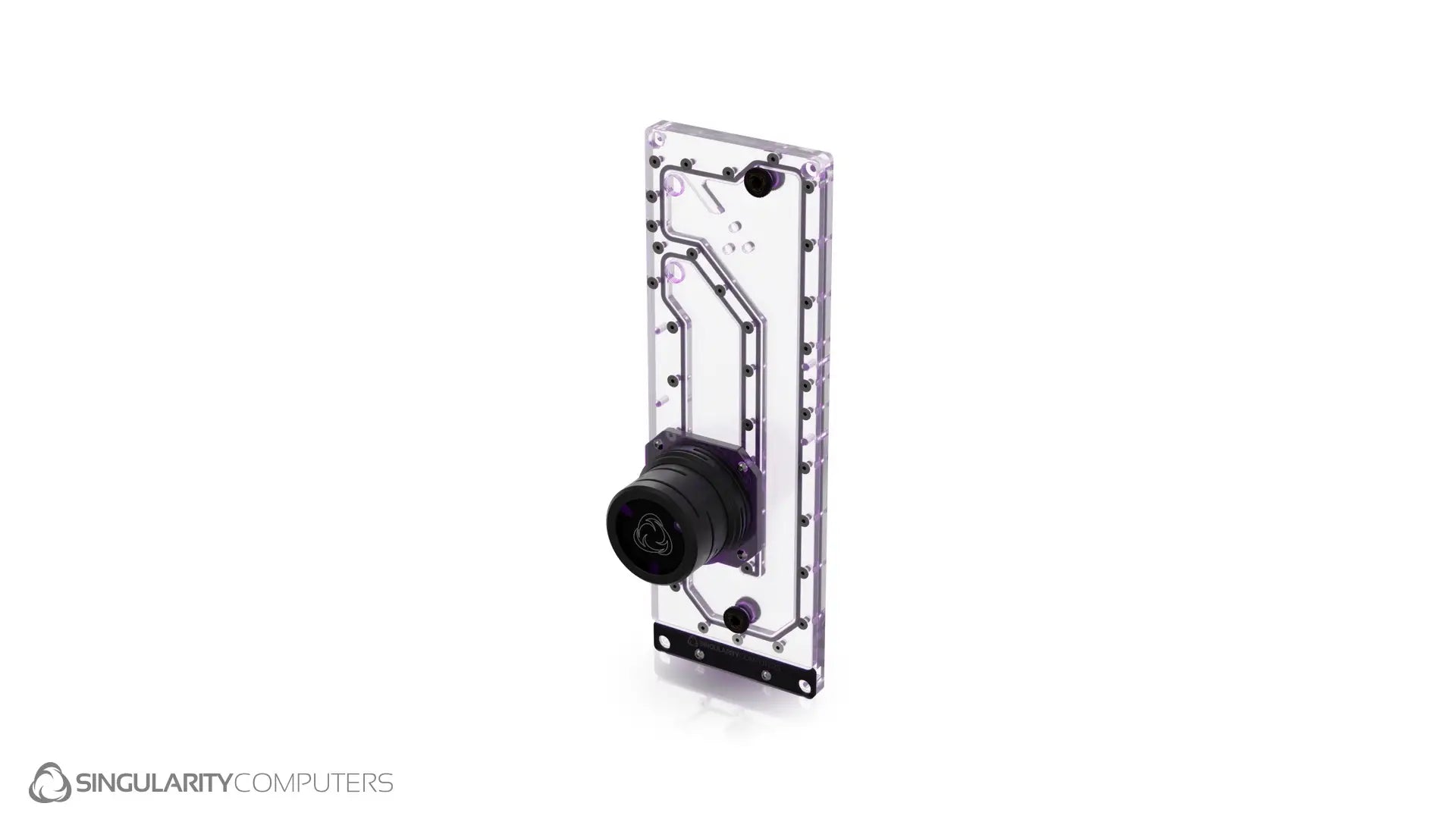

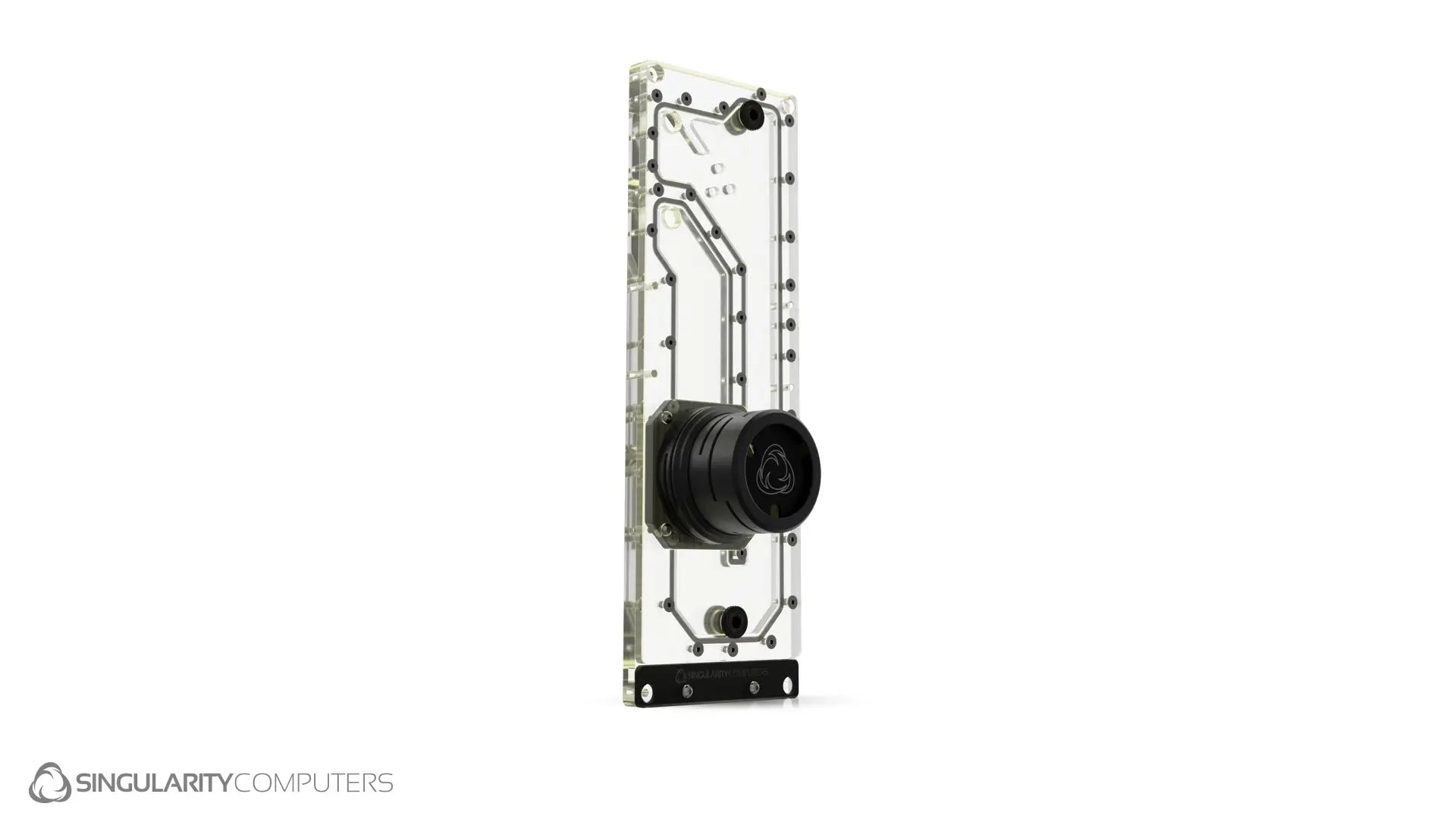

The 360mm D5 Reservoir Distribution Plate fits onto any 360mm radiator mount. It is intended to be used instead of a radiator or fans but it could be used in combination with them if stand offs or spacers were used for airflow. It has an integrated reservoir, D5 Pump Top, D5 Pump Cover, Fill and Drain Ports. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners. It has an integrated ARGB LED strip with a cover, there is also a Back Plate included to cover the rear side of the Rear Distribution Plate, select from the colour options below for the covers.

Pump not included. Compatible with any D5 Pump.

This product will be ordered in from the supplier

Please specify in your order comments if you require either of the following mounts

6-32 Radiator fasteners

M3 Radiator Fasteners

M4 Radiator Fasteners

Standard Mounts (for use with a standard radiator mount)

Specifications:
360mm D5 Reservoir Combo Distribution Plate.
360mm D5 Reservoir Combo Distribution Plate Back Cover (select color/finish above).
D5 Pump Cover CNC Machined Aluminum (select color above).
Integrated D5 Pump Top.
Integrated Reservoir.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 360mm x W: 120mm x H: 110mm.
Weight: 2kg.
Packaged Dimensions: L: 420mm x W: 170mm x H: 150mm.
Packaged Weight: 2.5kg.

Installation:
Installs onto any 360mm radiator mount.
