Singularity Computers Axiom ARGB D5 Reservoir Combo Distribution Plate

This product will be ordered directly from the supplier. Please allow a few extra days for leadtimes.

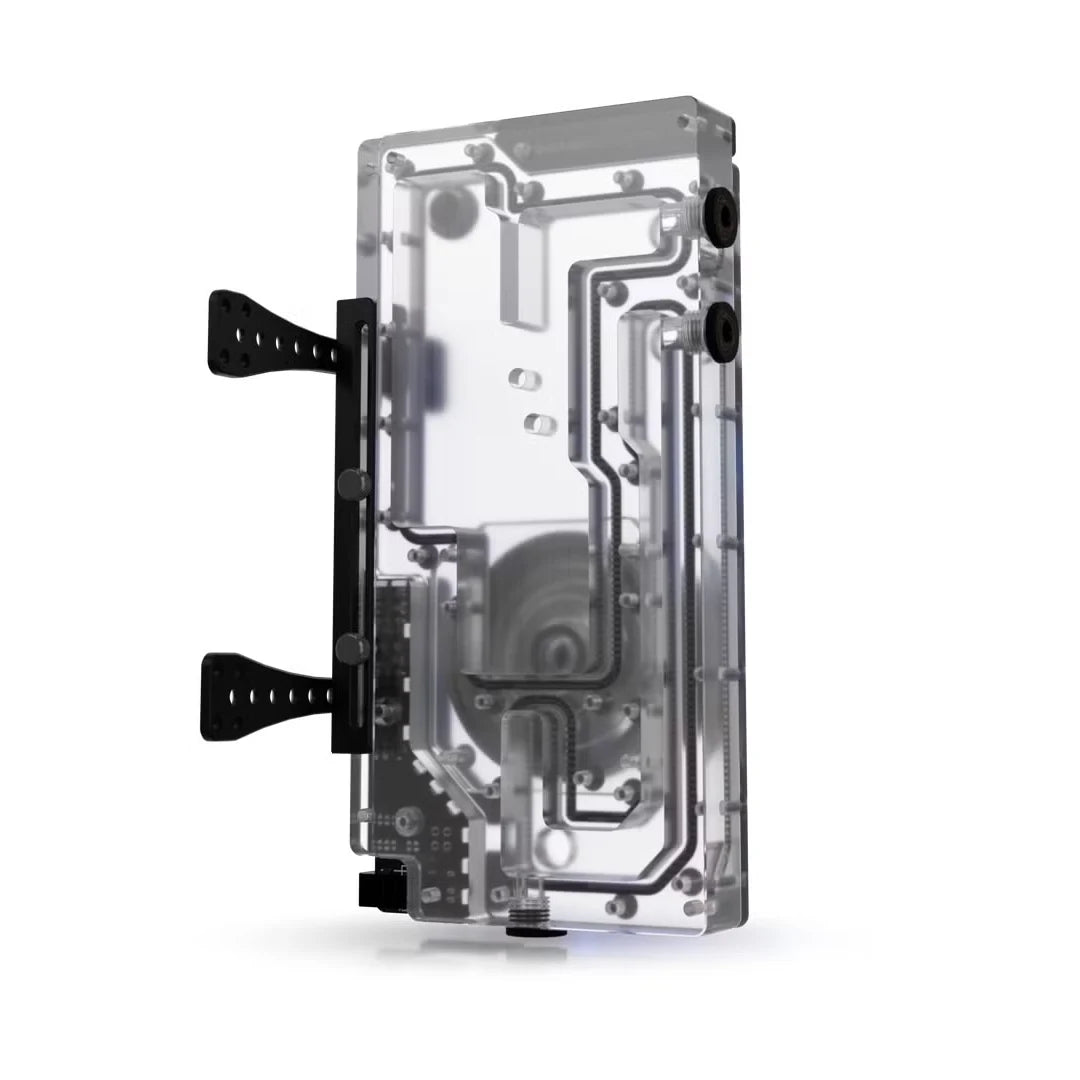

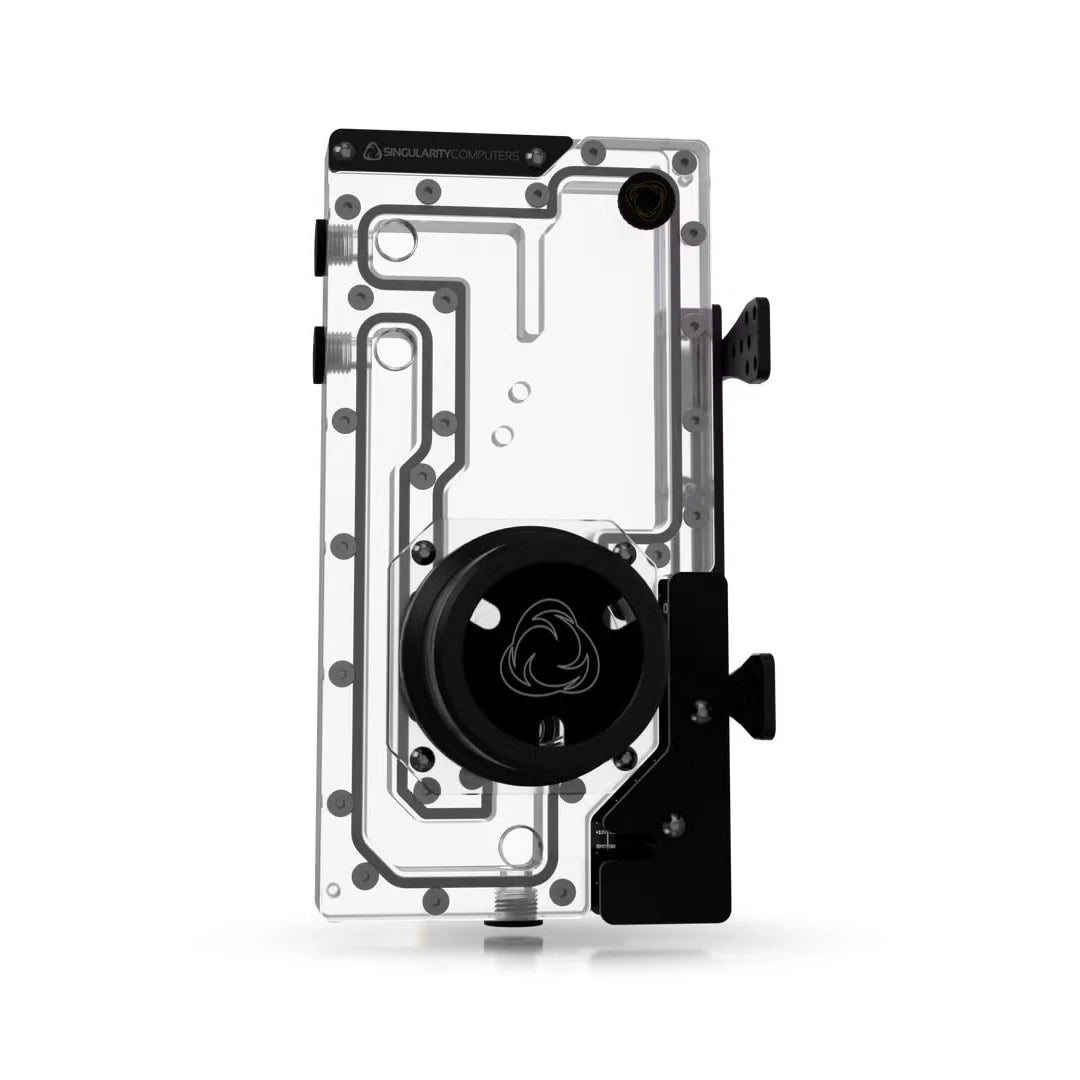

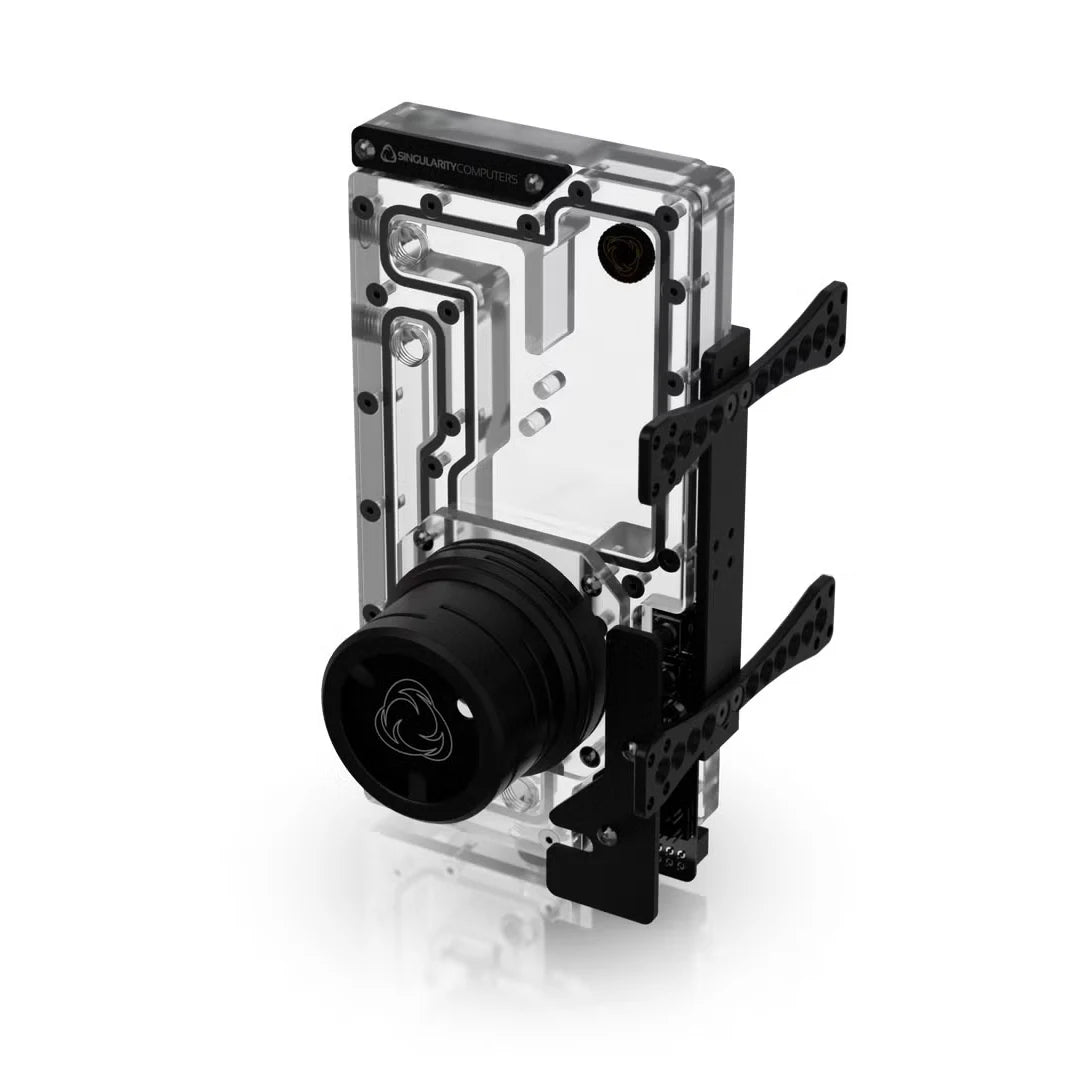

The Axiom ARGB D5 Reservoir Combo Distribution plate is a pump and reservoir combination designed to fit into any water-cooled build. It has maximum versatility with enough inlet and outlet ports for many different loop routes.

The distro plate can be fitted onto 120mm or 140mm wide radiators. It has been designed for maximum fluid volume for easy filling even in large water-cooling systems and has fill and drain ports built in. It has an integrated D5 Pump Top and D5 Pump Cover with ARGB lighting. It has electronics integration which includes integrated ARGB LEDs to light up the distribution plate. It also includes temperature-based RPM control with separately adjustable RPM curves for the pump and fans.

D5 pump not included

Specifications & Included Items:
Axiom ARGB D5 Reservoir Combo Distribution Plate.

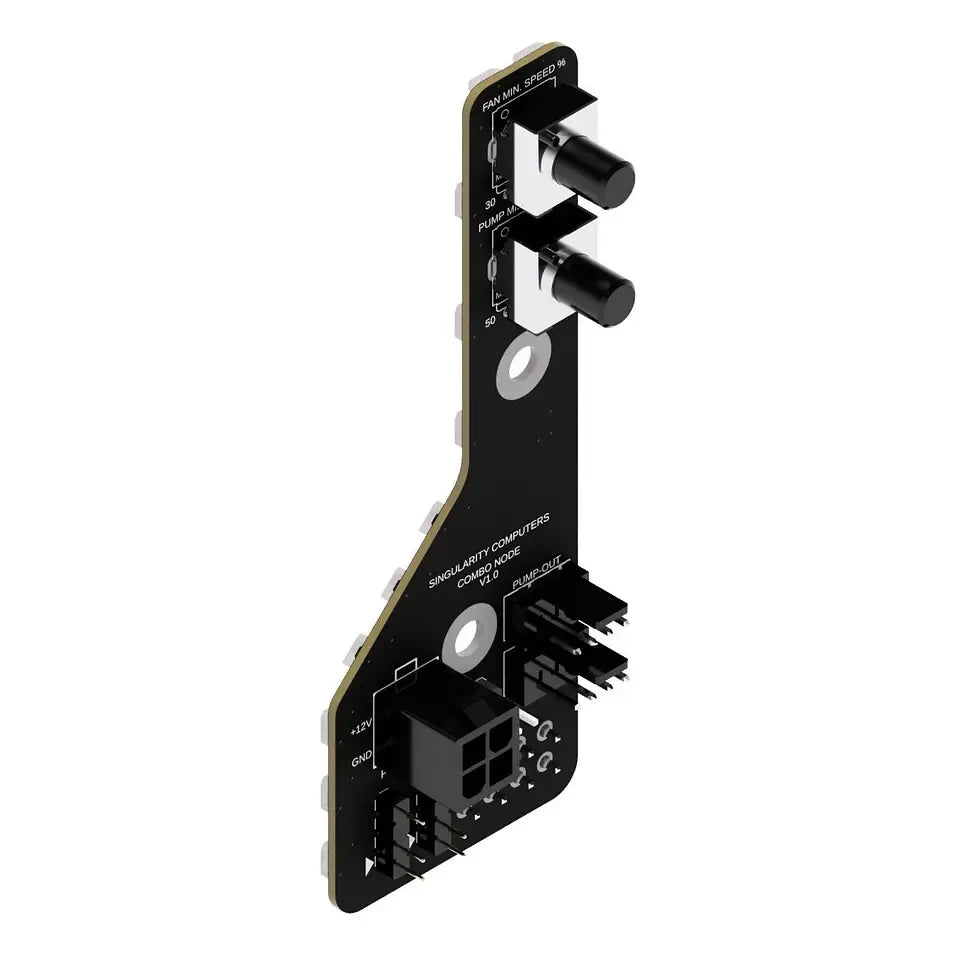

Electronics Integration: PWM outputs x2 with coolant temperature-based RPM control. Each PWM output hub has separate coolant temperature-based RPM control. The built-in RPM control on the is independent of the motherboard and no software is needed. PWM Control: 2x potentiometers to set the minimum PWM speed of the RPM curve.

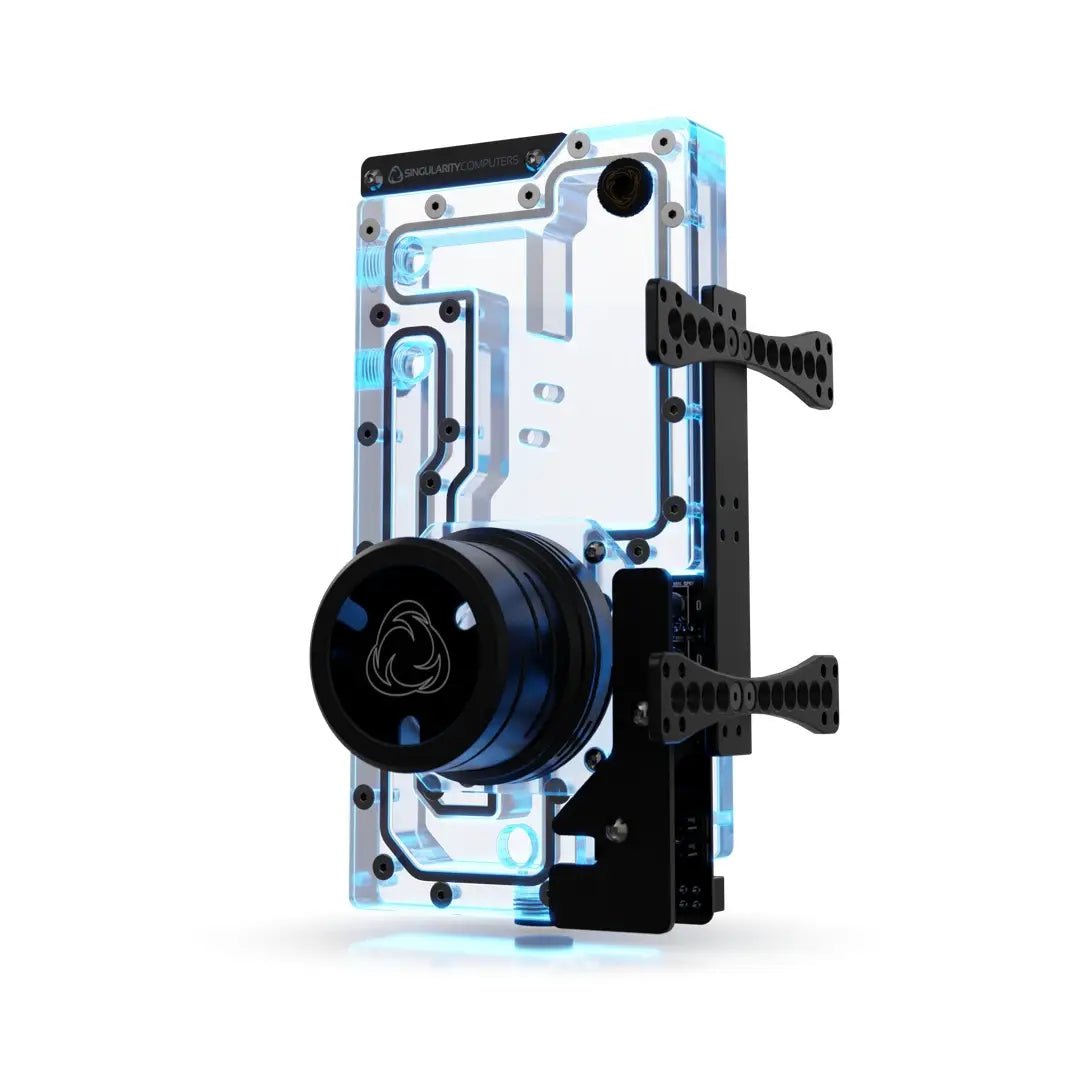

ARGB LEDs: x11.
Pump Power for up to x2 D5 Pumps.
8pin PCIE input.
Cables: 4pin ATX to 2x Molex & 2x SATA Pump Power Adaptor Black.
ARGB Linking Cable 50cm. Black.
Universal Back Plates 120/140: CNC machined 6061 anodized aluminum black.
Mounting Rail: CNC machined 6061 anodized aluminum black.
Fasteners: Stainless Steel.
Gaskets: Silicone.
O-rings: D5, Silicone x2.
Pump Top: D5.
Pump Cover: ARGB D5 Pump Cover: CNC machined 6061 anodized aluminum black.
Stop Fittings: Powdercoated Laser Etched Brass x4.
Dimensions: L: 240mm x W: 100mm x H: 100mm.
Weight: 1.5kg.
Packaged Dimensions: L: 300mm x W: 100mm x H: 100mm.
