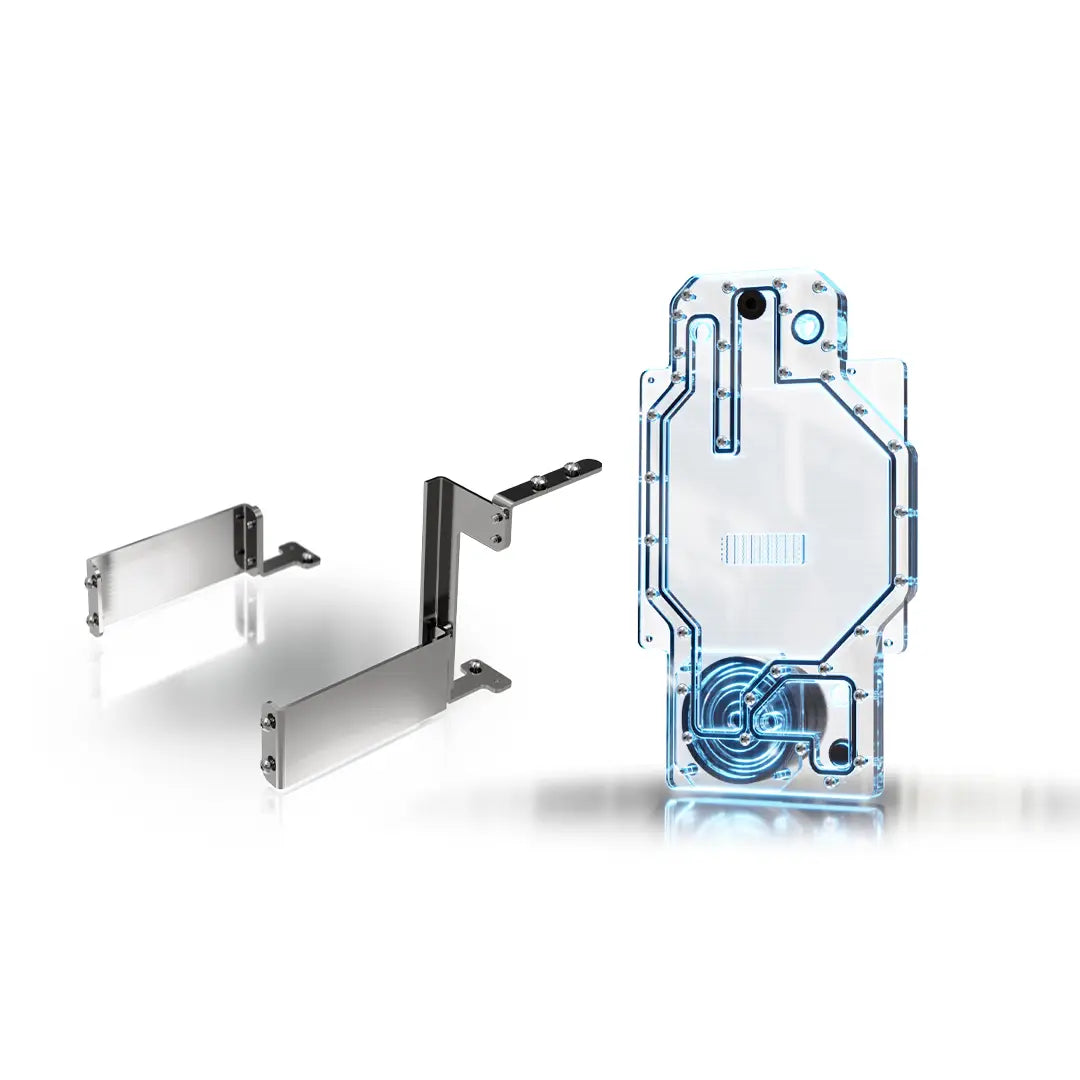

Singularity Computers Phantom 2 D5 Reservoir Distribution Plate & VGPU
Singularity Computers Phantom 2 D5 Reservoir Distribution Plate & VGPU
Singularity Computers have created a D5 Reservoir Distribution Plate for the Phantom 2 which removes all the challenges of adding a traditional Pump Reservoir Combination to the compact and open design of Phantom 2.
This is a consignment item which will be shipped from the local supplier.

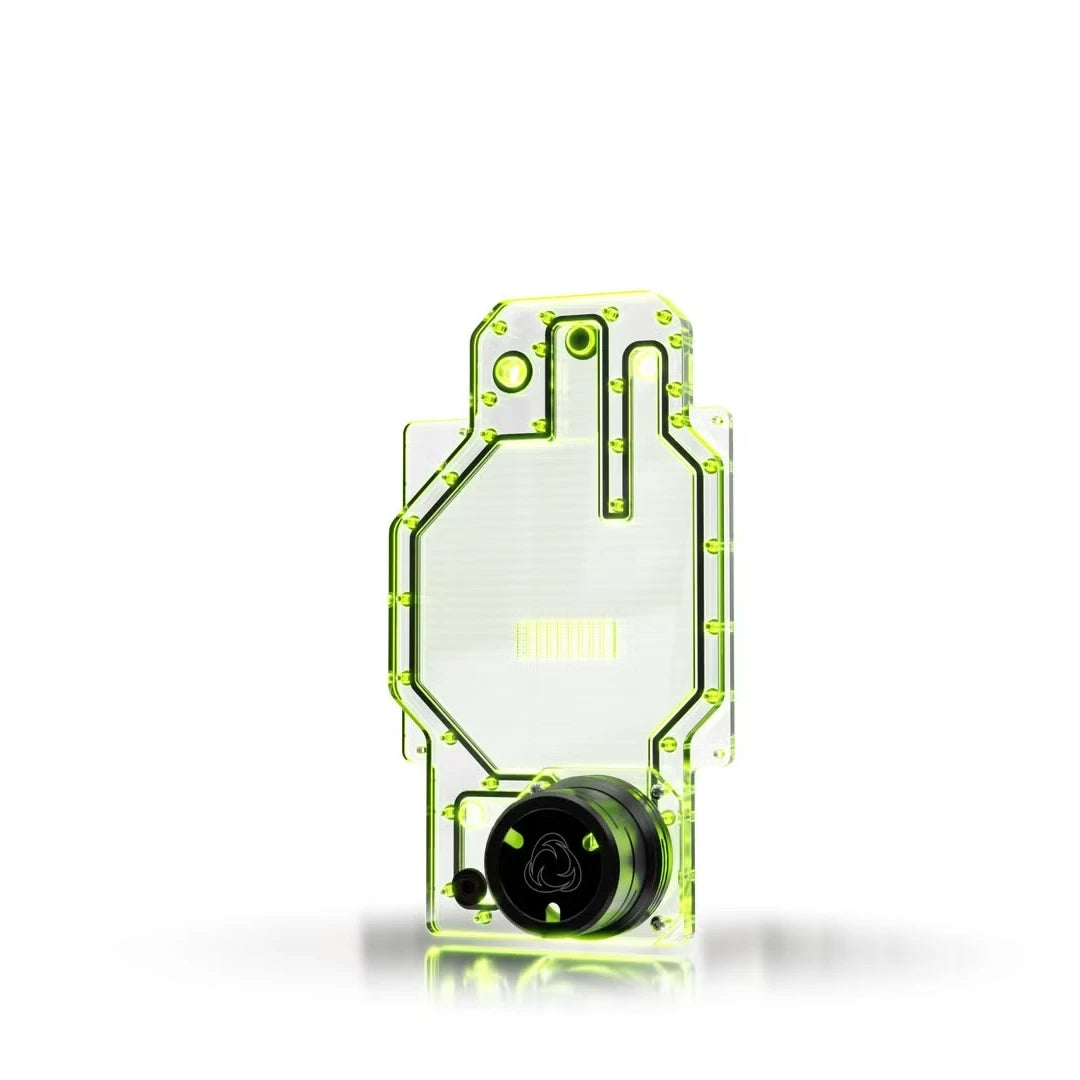

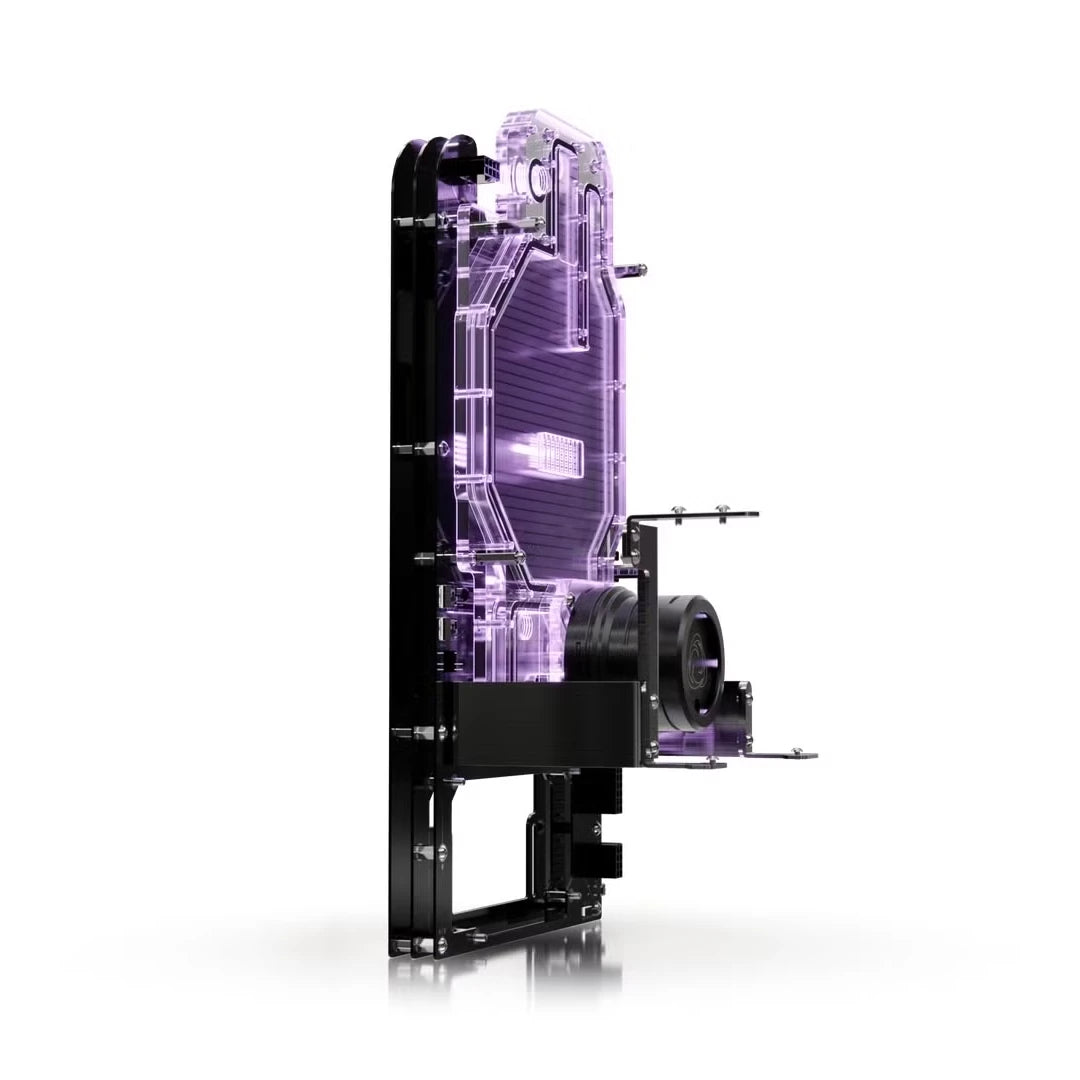

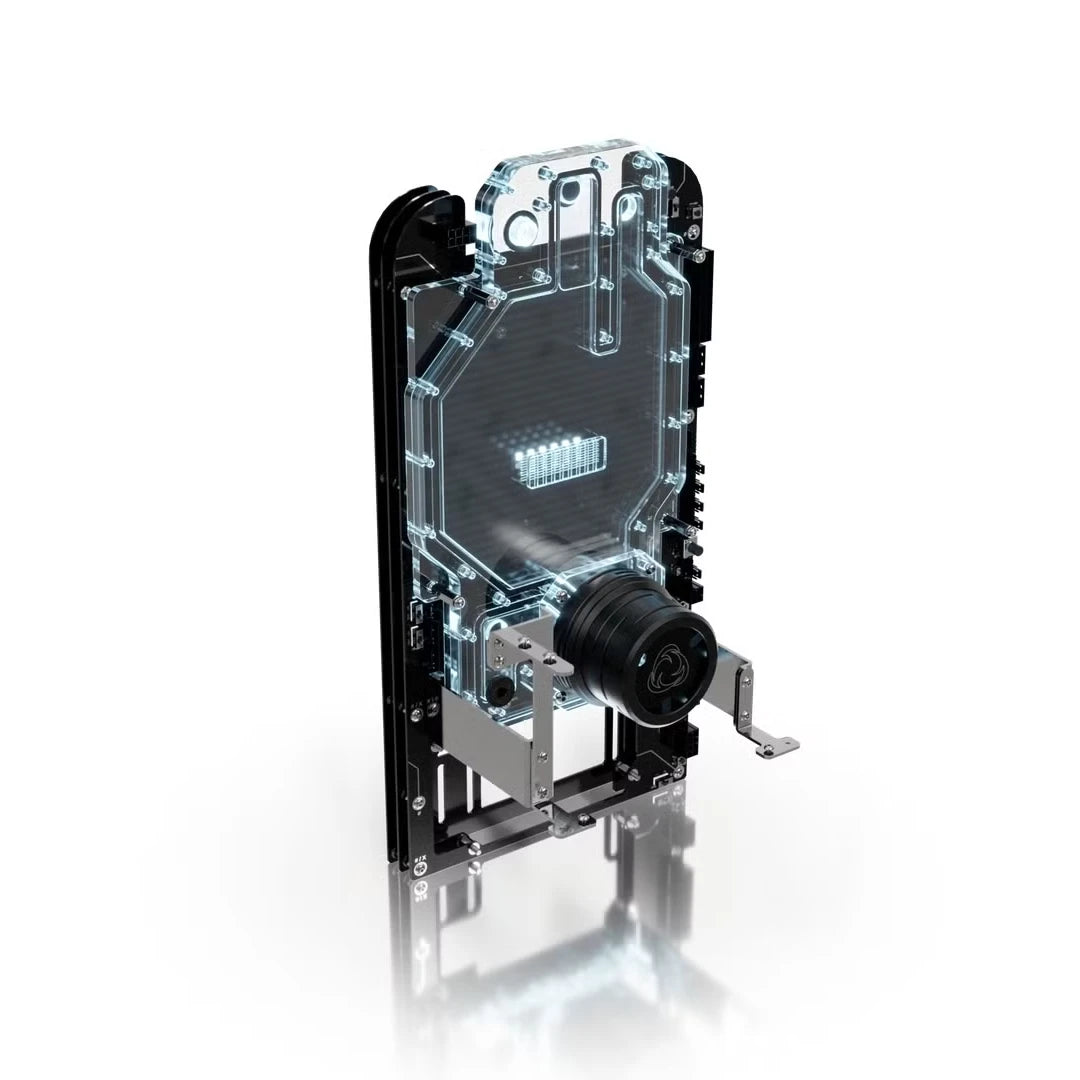

The distribution plate integrates a Reservoir and a D5 pump in a compact and hidden location behind the motherboard. The ports are located to make easy connections to all the components on the case. Parts of the distribution plate are visible and glow from the integrated ARGB lighting to create an aesthetic feature. With this distribution plate Phantom 2 can become the basis for a compact, aesthetically clean, and powerful system.
The Phantom 2 Vertical GPU mount is an important aesthetic addition and improves the layout particularly if you are water-cooling. The mounting components are built from brushed stainless steel and it comes included with a PCIE 4.0 Riser Cable. If you are using the Phantom 2 D5 Reservoir Distribution Plate, then the Phantom 2 Vertical GPU Mount is required due to the location of the integrated D5 pump.
Specifications & Included Items:
Phantom 2 D5 Reservoir Distribution Plate.
Ports: x5 G1/4” BSPP including x1 Fill and Drain Port.
Materials: Cast Acrylic.
Gaskets: Silicone Black.
Fasteners: Stainless Steel Silver.
Manufacturing Process: CNC Mill. CNC Router. Laser Cutter.
Assembly: Assembled by hand.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Phantom 2 Vertical GPU Mount.
Materials: Stainless Steel Brushed.
Fasteners: Stainless Steel Silver.
Manufacturing Process: CNC Mill, Folding.
Riser Cable: PCIE 4.0 25cm 90-degree Riser Cable.
Installation:
The Distribution Plate installs onto Phantom 2 behind the motherboard and the Vertical GPU Mount installs onto the front of Phantom 2 above the PSU.
Phantom 2 Case not included
