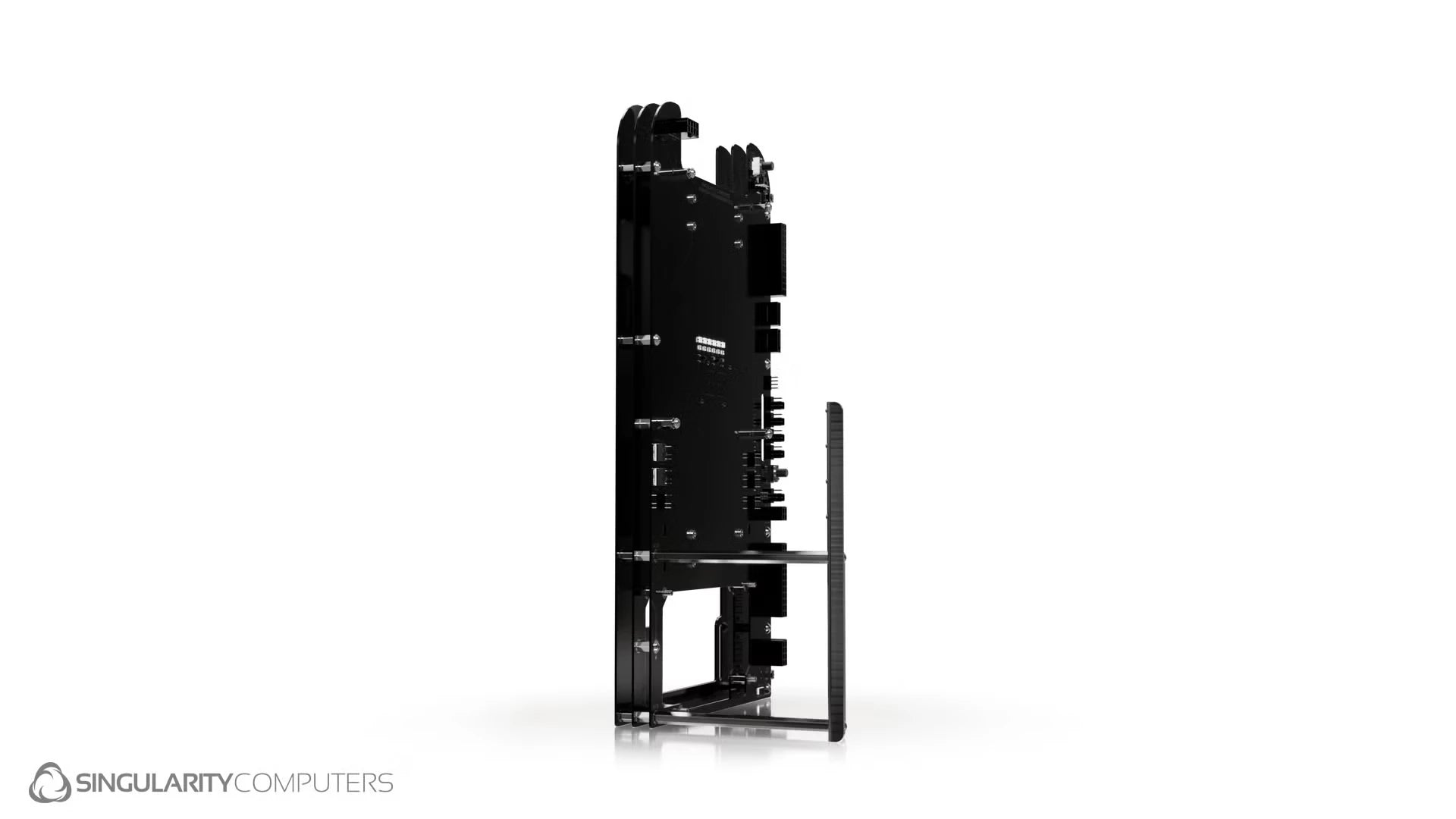

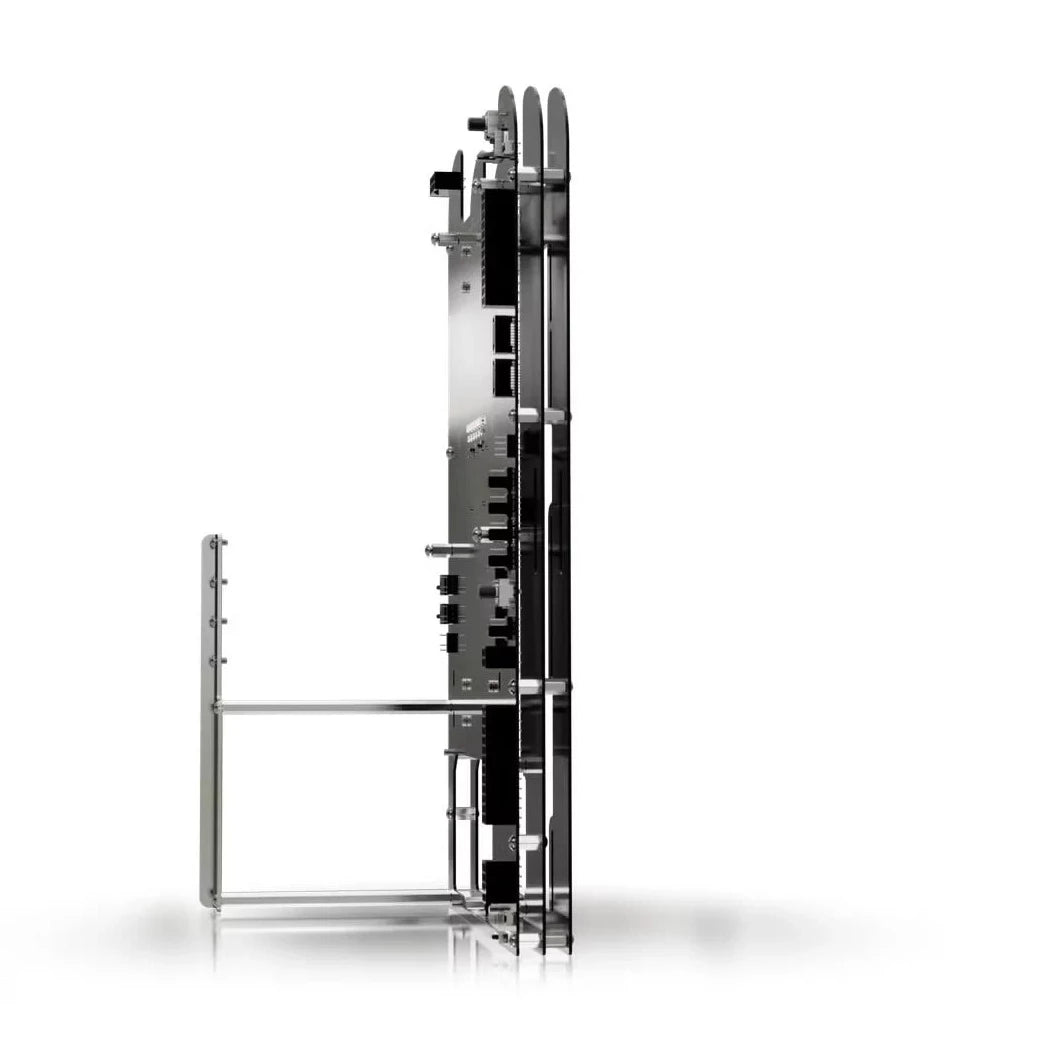

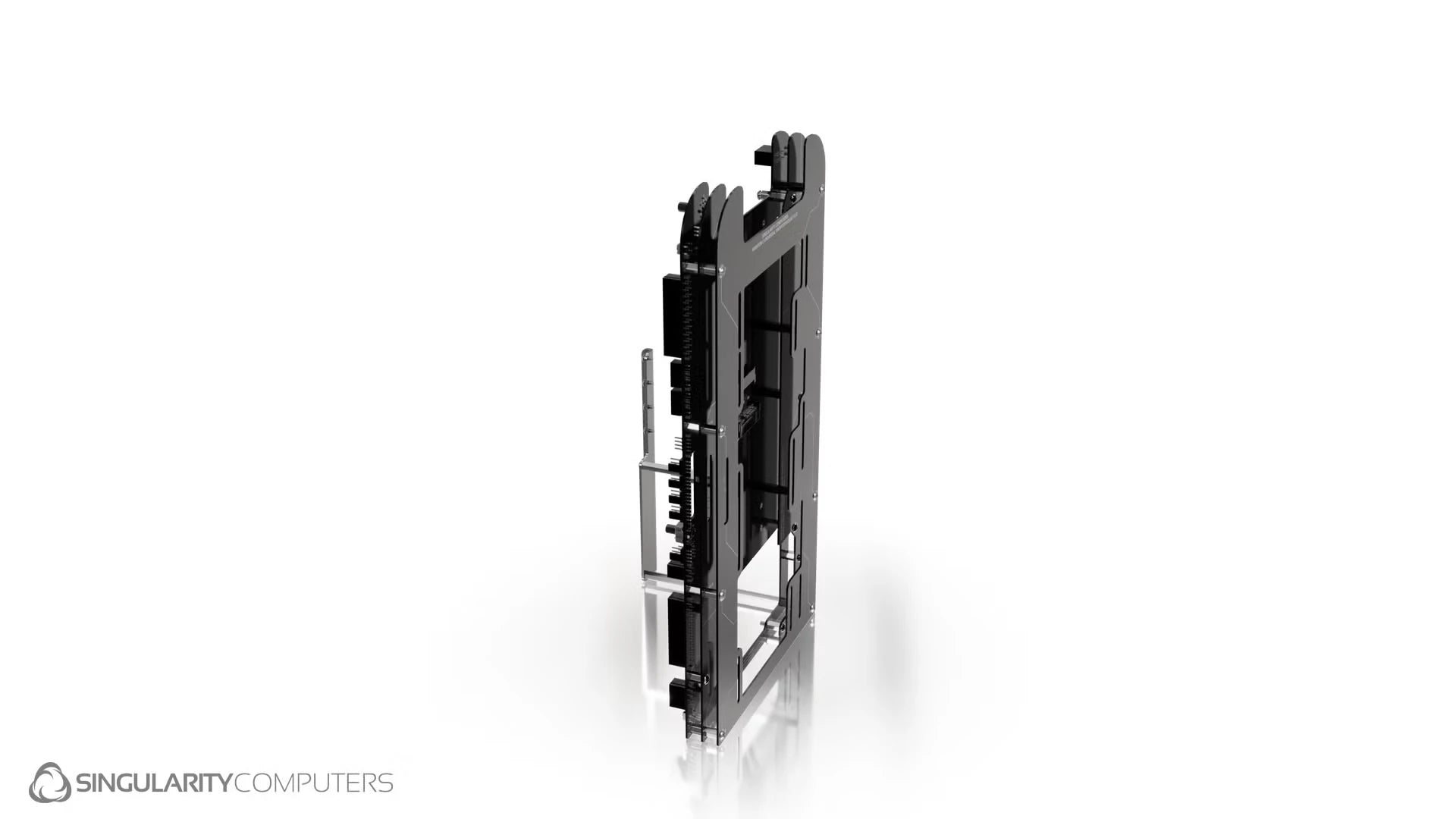

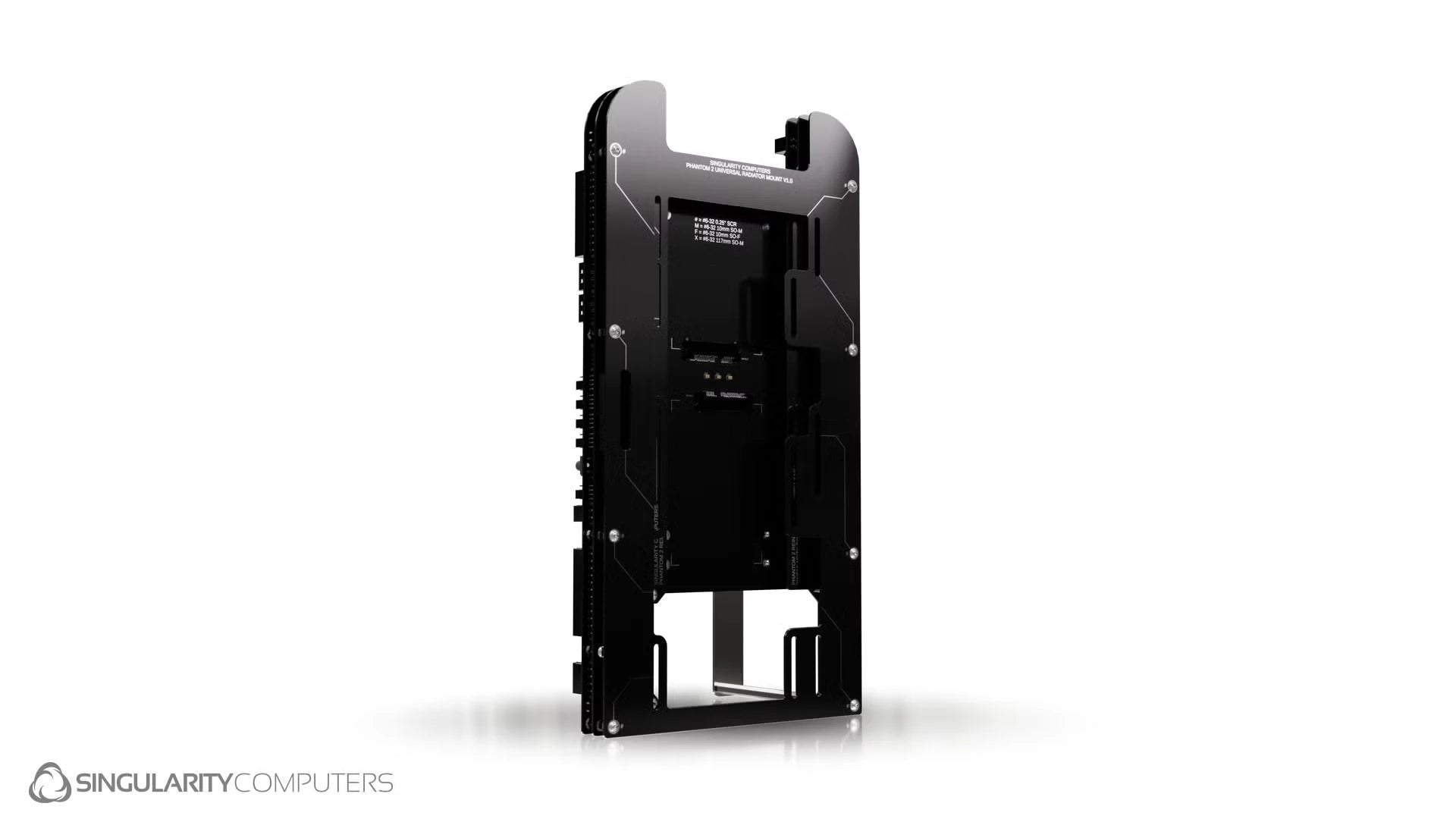

Singularity Computers Phantom 2 ITX/DTX Case

Phantom 2 turns the Singularity Computers PowerBoard into the case itself. The goal was to create the most minimalistic case using PCB components only. Phantom 2 does not aim to be the smallest Mini-ITX case, but to achieve maximum component density with unrestricted airflow.

This is a consignment item which will be shipped from the supplier

Phantom 2 disappears amongst the components mounted to it, it is completely about component selection and will show off the skill of the builder. It fits ITX motherboards, 3+ slot graphics cards, ATX power supplies and 2x 2.5” drives. Water-cooling is possible with the included universal radiator mount which fits anything from a 120mm all the way up to 560mm radiators. There is also no restriction on what thickness radiator you can fit too!

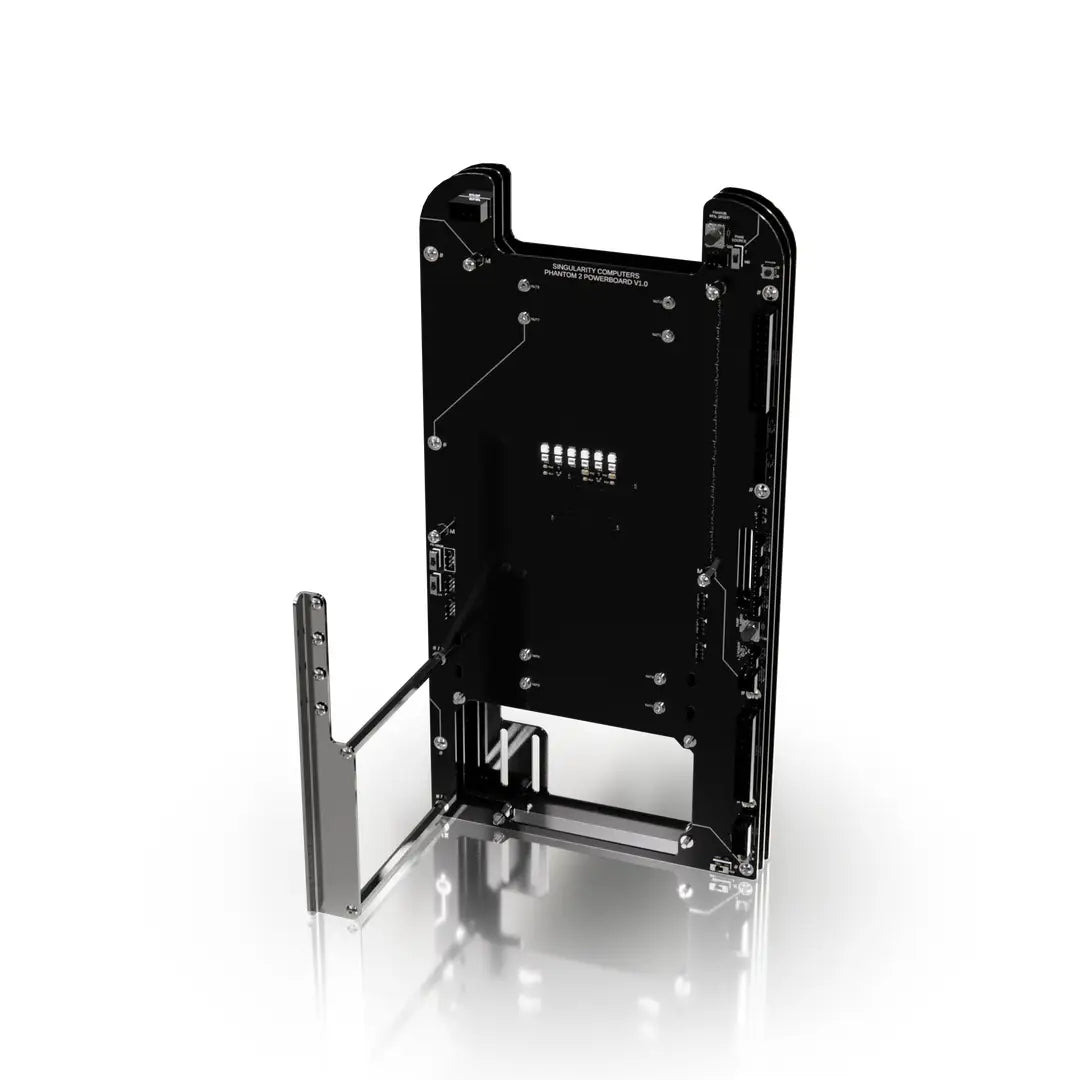

All components are mounted directly onto the PowerBoard which acts as a rack as well as a power distribution plate with the 24pin and EPS power integrated into the PowerBoard, along with Power and Reset buttons, ARGB and FAN hubs. There are integrated direct connect SATA power connections to avoid the need for SATA power cables. Built-in FAN hub, PUMP power and PWM control with local and coolant temperature-based speed control. Built-in ARGB and UV lighting for the distribution plate and built-in ARGB hub. There is no rear access needed to the case for cable management, all cables can be connected from the front with the included black sleeved cables.

The following cables are included with the product: 24pin x1, 8pin EPS x2 with the option to select either 12VHPWR or 8pin PCIE x3.
Shortened custom PSU cables and 90 degree motherboard adapters are available on request.

Singularity Computers PowerBoard:
Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821) a completely new take on computer cables and cable management. The idea first came about during the development of our first case Spectre 1.0. We were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It eliminates the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!

Specifications & Included Items:
Case PowerBoard Components: x4 PCB total. Fasteners, stand offs and vertical graphics card mounting hardware.

Electronics Integration:
Core Component Cables: 24 pin x1 and 8pin ES x1 linking cables. Power and Reset button wires. PWM and ARGB linking cables.
Headers: 1x Fan PWM/RPM input and 4x FAN output. 1x PUMP PWM output. 1x ARGB input and 5x ARGB outputs.
Switches: Enable/disable built-in ARGB and UV lightning for the optional distribution plate. PSU jumpstart switch. FAN hub PWM source switch.
1x temperature sensor header for a 10K NTC thermistor-based probe.
2.5” SATA 3.0 6Gb/s Direct Mount x2.
1x 4pin ATX PUMP power header.
Cables: PowerBoard Linking Cables and PowerBoard PSU Cables available here.
Motherboard Form Factor: Mini-ITX.
PSU Compatibility: ATX.
Expansion Slots: x4.
Case Form Factor: SFF.
Package Dimensions: L: 395mm W: 430mm H: 40mm (Case is flat packed and requires assembly.)
Package Weight: 2kg.
Case Dimensions: L: 152mm H: 386mm W: 215mm.
Case Weight: 1.5kg.
Storage: x2 2.5”.
Radiators: 120mm, 140mm, 240mm, 280mm, 360mm, 420mm, 480mm, 560mm. No limitation on radiator thickness and push pull fans can be used.
Maximum GPU Length: Unlimited.
Maximum GPU thickness: 80mm.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: Unlimited.
Front Panel I/O: Power and Reset buttons, PSU jumpstart switch. 2x PWM speed control potentiometers.
Vertical GPU Mount: Optional addon.
Distribution plate: Optional addon.
Materials: PCB with stainless steel fasteners, stand offs and GPU mounting hardware.
Manufacturing Process: PCB and folded stainless steel.
Assembly: Flat packed and needs to be assembled by the customer.
Accessories: Hex Key: M3 x1.
