Singularity Computers Phantom ITX/DTX Case

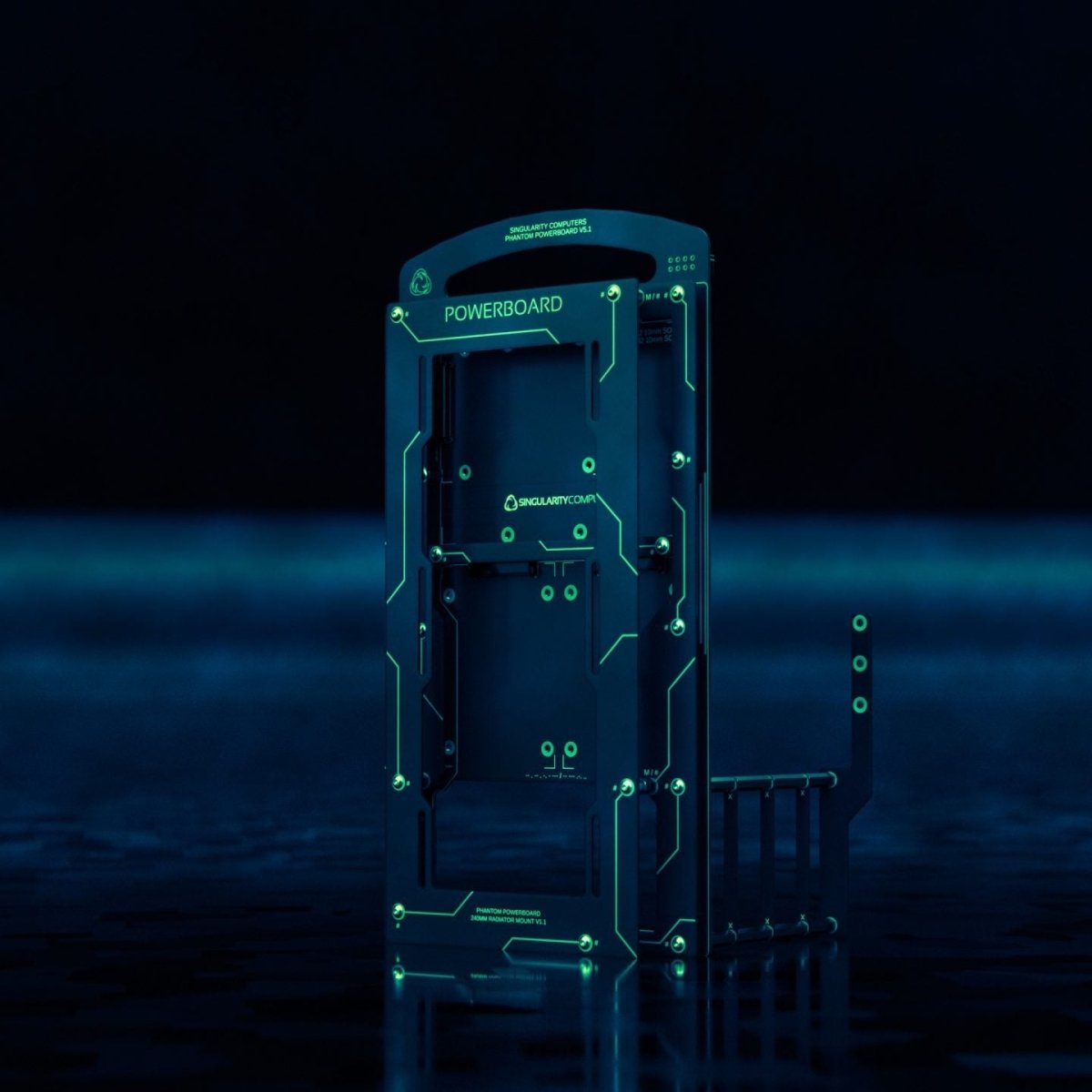

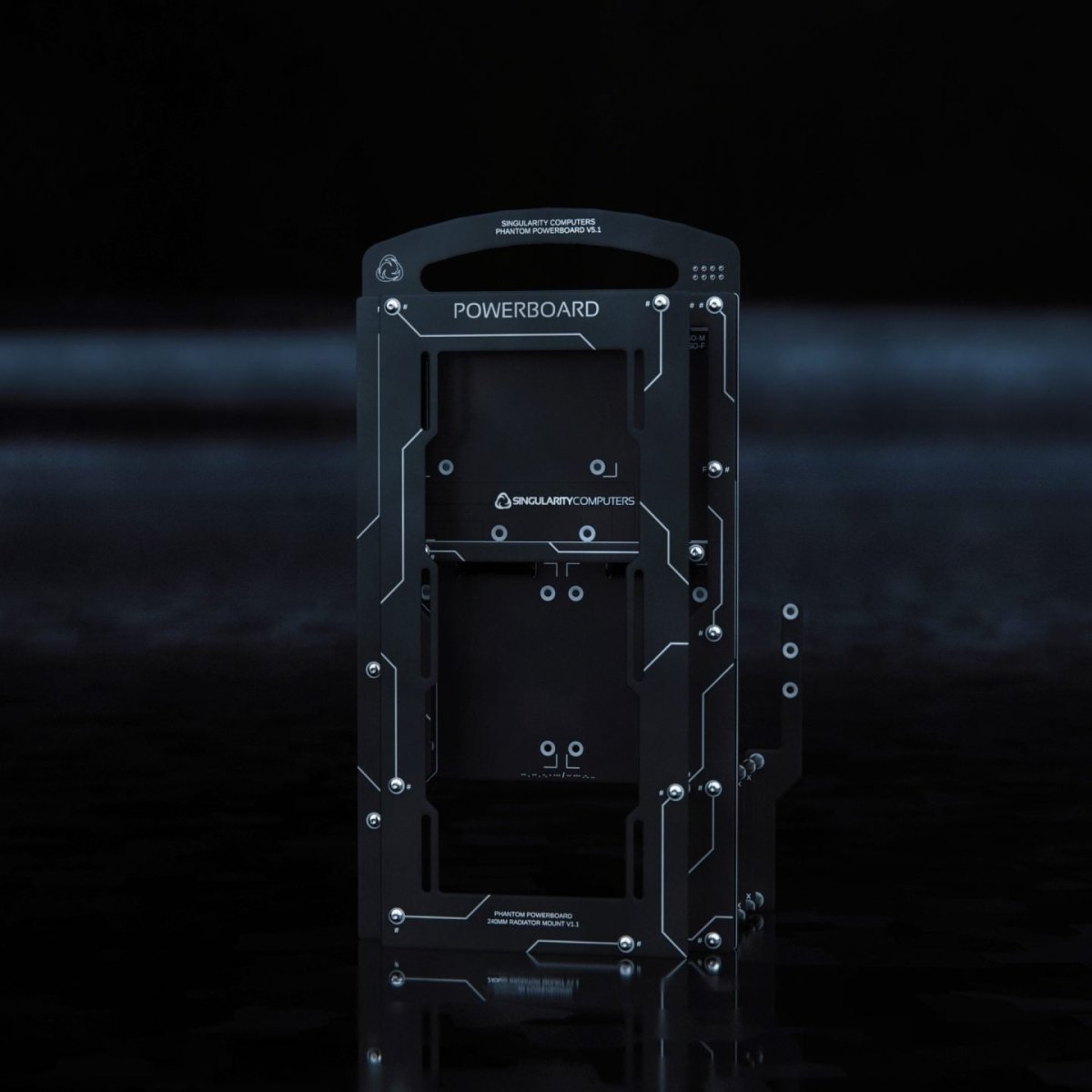

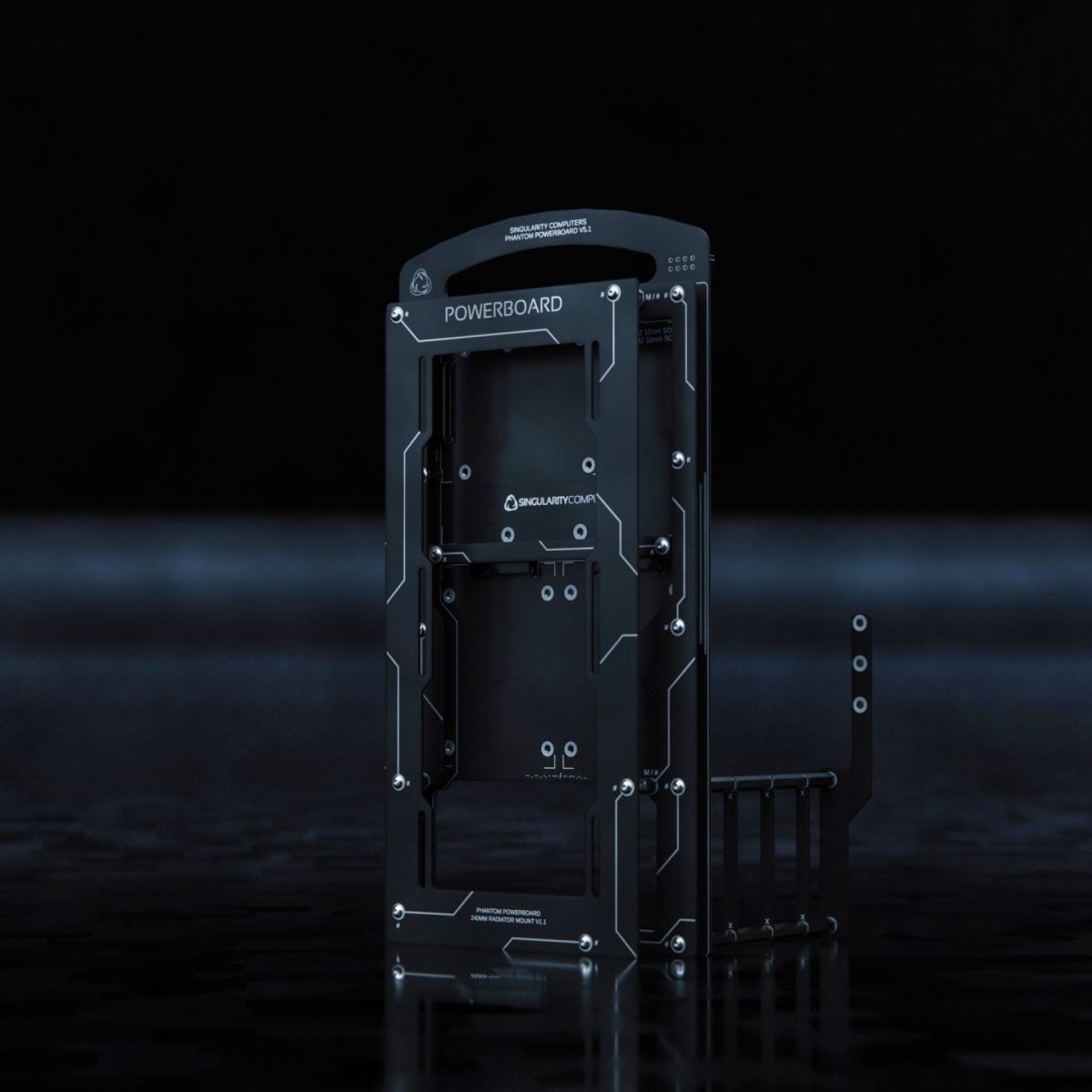

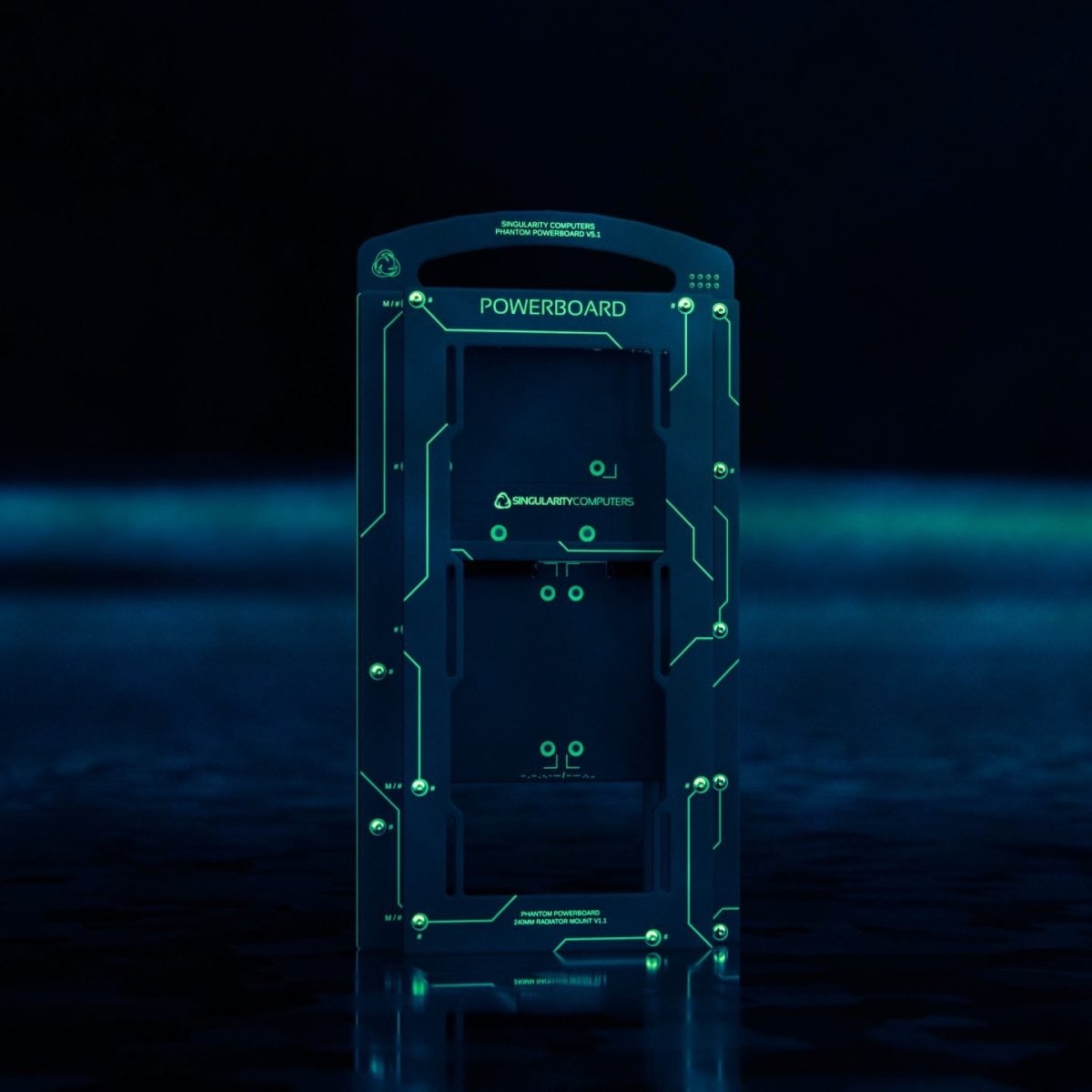

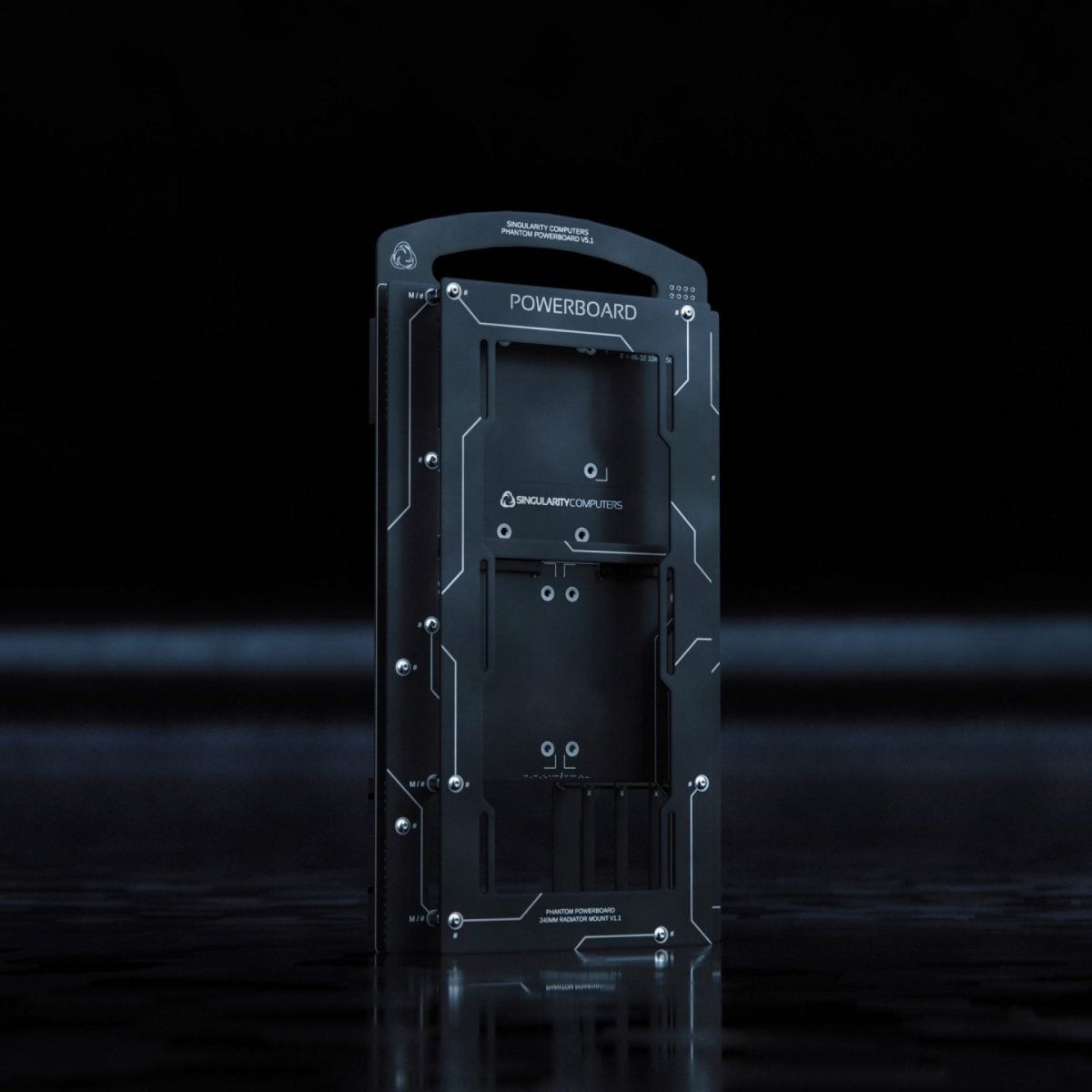

Phantom turns the Singularity Computers PowerBoard into the case itself. The goal was to create the most minimalistic case using PCB components only. Phantom does not aim to be the smallest Mini-ITX case, but to achieve maximum component density with unrestricted airflow. Phantom disappears amongst the components mounted to it, it is completely about component selection and will show off the skill of the builder.

It fits ITX and DTX motherboards, 3+ slot graphics cards, ATX power supplies and 3x 2.5” drives, or 2x 2.5” and a 3.5” drive. Water-cooling is possible with the included universal radiator mount which fits up to 560mm radiators with no thickness limitations.

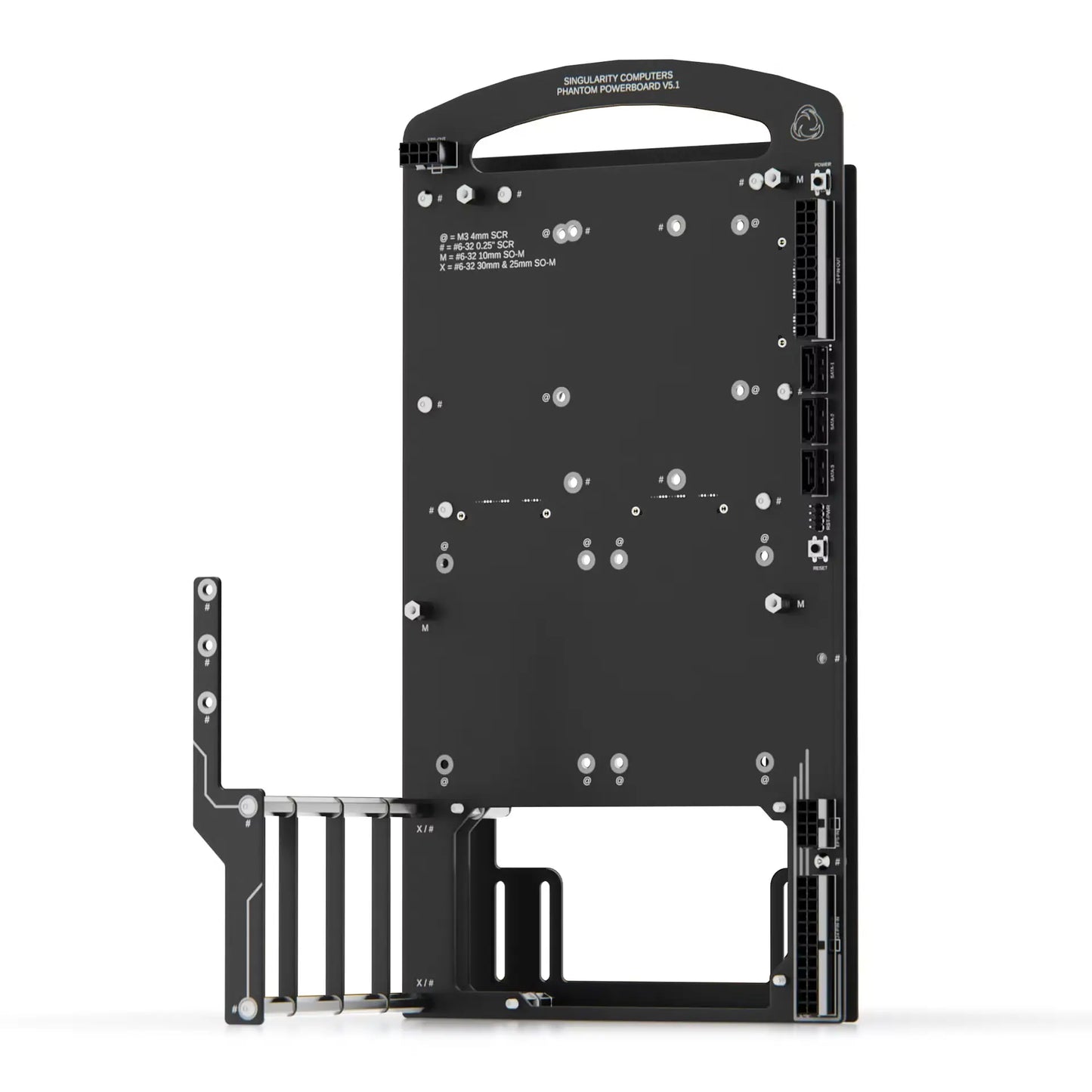

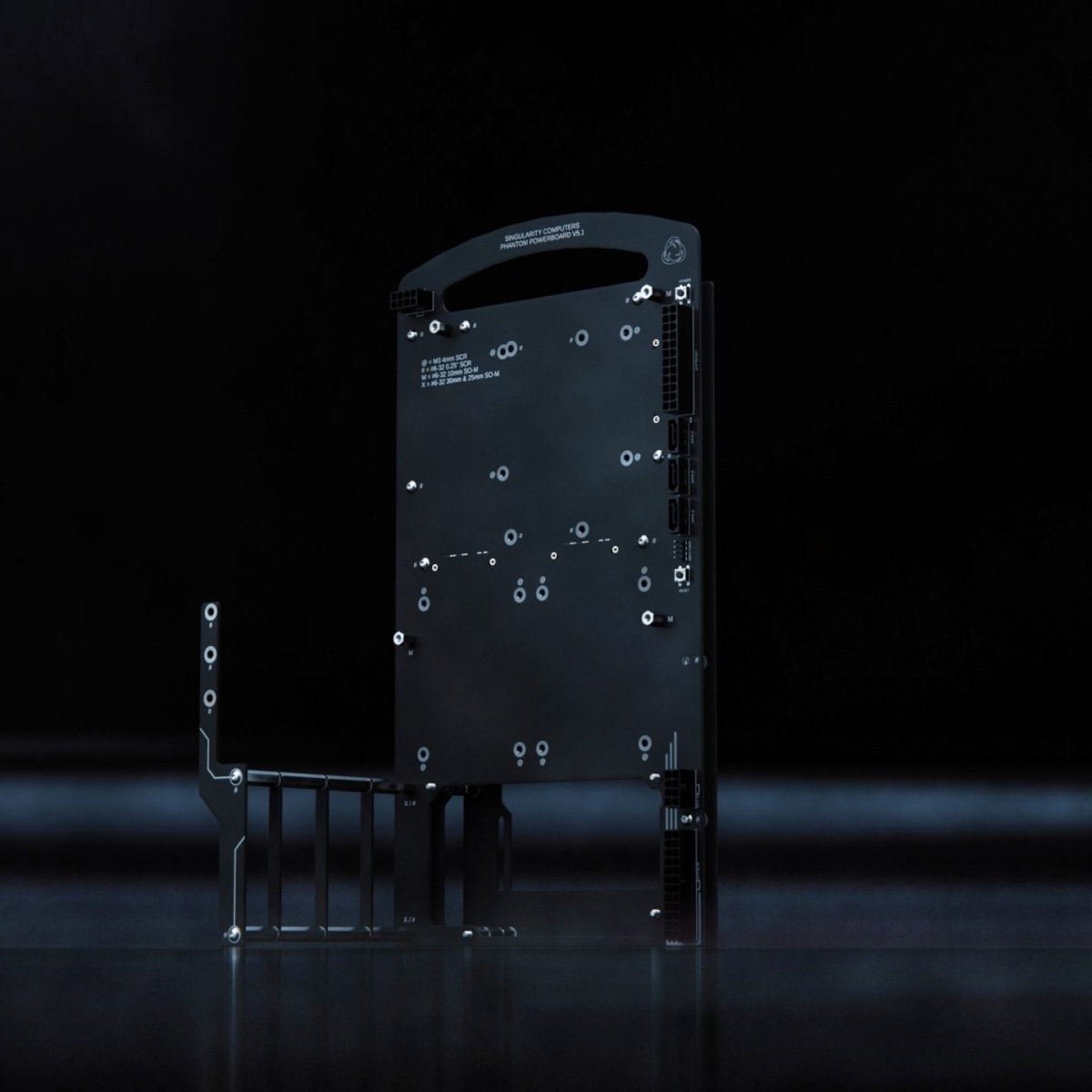

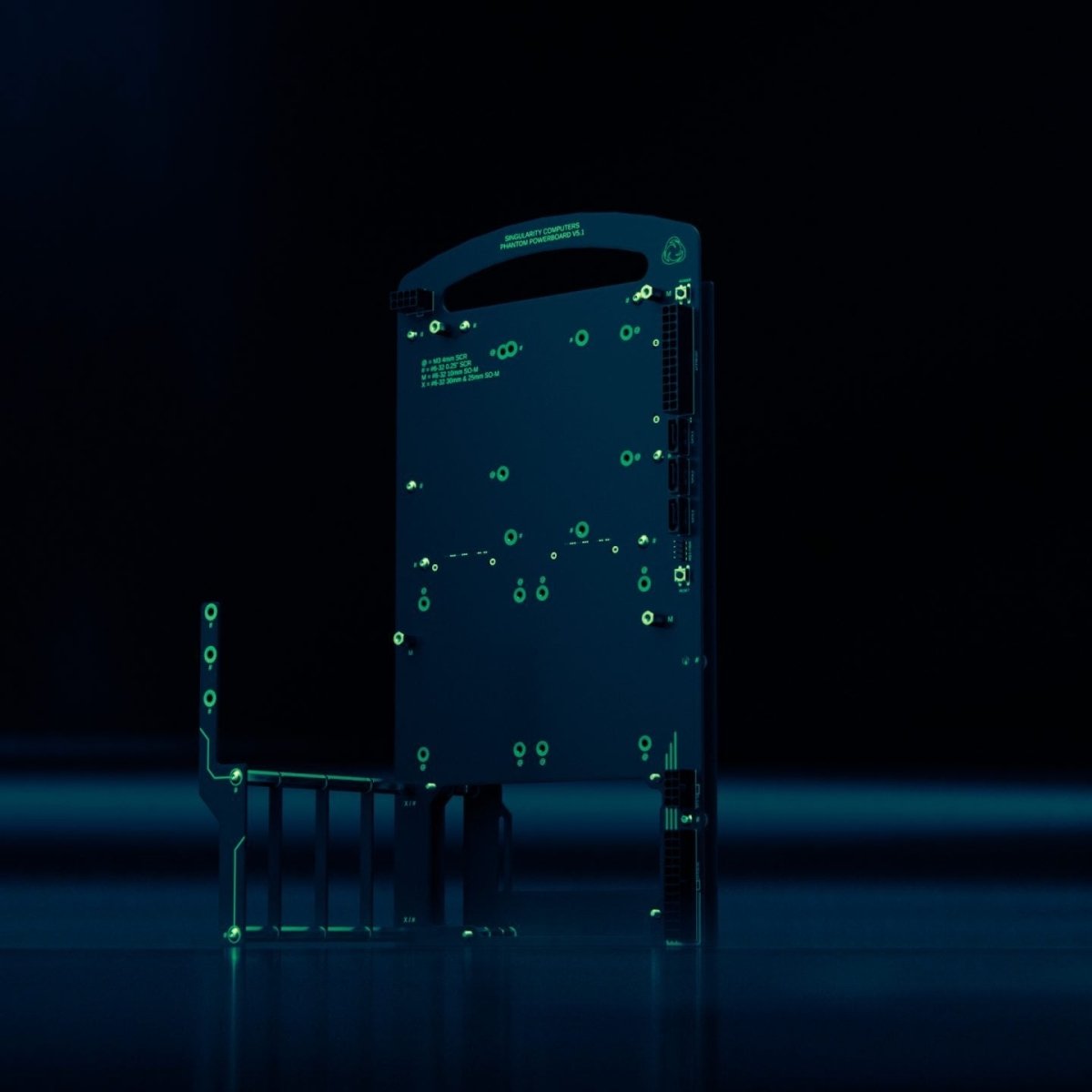

All components are mounted directly onto the PowerBoard which acts as a rack as well as a power distribution plate. Phantom has the MB 24pin, EPS and SATA power integrated into the PowerBoard, along with Power and Reset buttons. Black sleeved power cables are also included with the case.

Singularity Computers PowerBoard:
The PowerBoard is essentially a distribution plate for cables. It eliminates the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!

Specifications & Included Items:
Case PowerBoard Components: x10 total. Stainless steel fasteners and stand offs.
Electronics Integration: Core Component Cables: 24pin x1. 8pin EPS x1. Power and Reset Buttons. 2.5”/ 3.5” SATA 3.0 6Gb/s Direct Mount x1. 2.5” SATA 3.0 6Gb/s Direct Mount x2
Cables: PowerBoard Linking Cables. Custom PSU to powerboard cables available on request
Motherboard Form Factor: Mini-ITX & DTX.
PSU Compatibility: ATX.
Package Dimensions: L: 395mmmm W: 430mm H: 40mm (Case is flat packed and requires assembly).
Package Weight: 2kg.
Case Dimensions: L: 135mm H: 360mm W: 190mm.
Case Weight: 1.5kg.
Storage: 3x 2.5” or x2 2.5” and 1x 3.5”.
Radiators: Up to 560mm. Radiator width is limited to 145mm width so Hardwarelabs radiators will not fit. No limitation on radiator thickness and push pull fans can be used.
Maximum GPU Length: Unlimited.
Maximum GPU thickness: 75mm.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: Unlimited.
Front Panel I/O: Power and Reset buttons.
Materials: PCB with stainless steel fasteners and stand offs.
Manufacturing Process: PCB.
Assembly: Flat packed and needs to be assembled by the customer.
Accessories: Hex Key: M3: x1.
