Singularity Computers PowerBoard & Distribution Plate PC-O11D Case

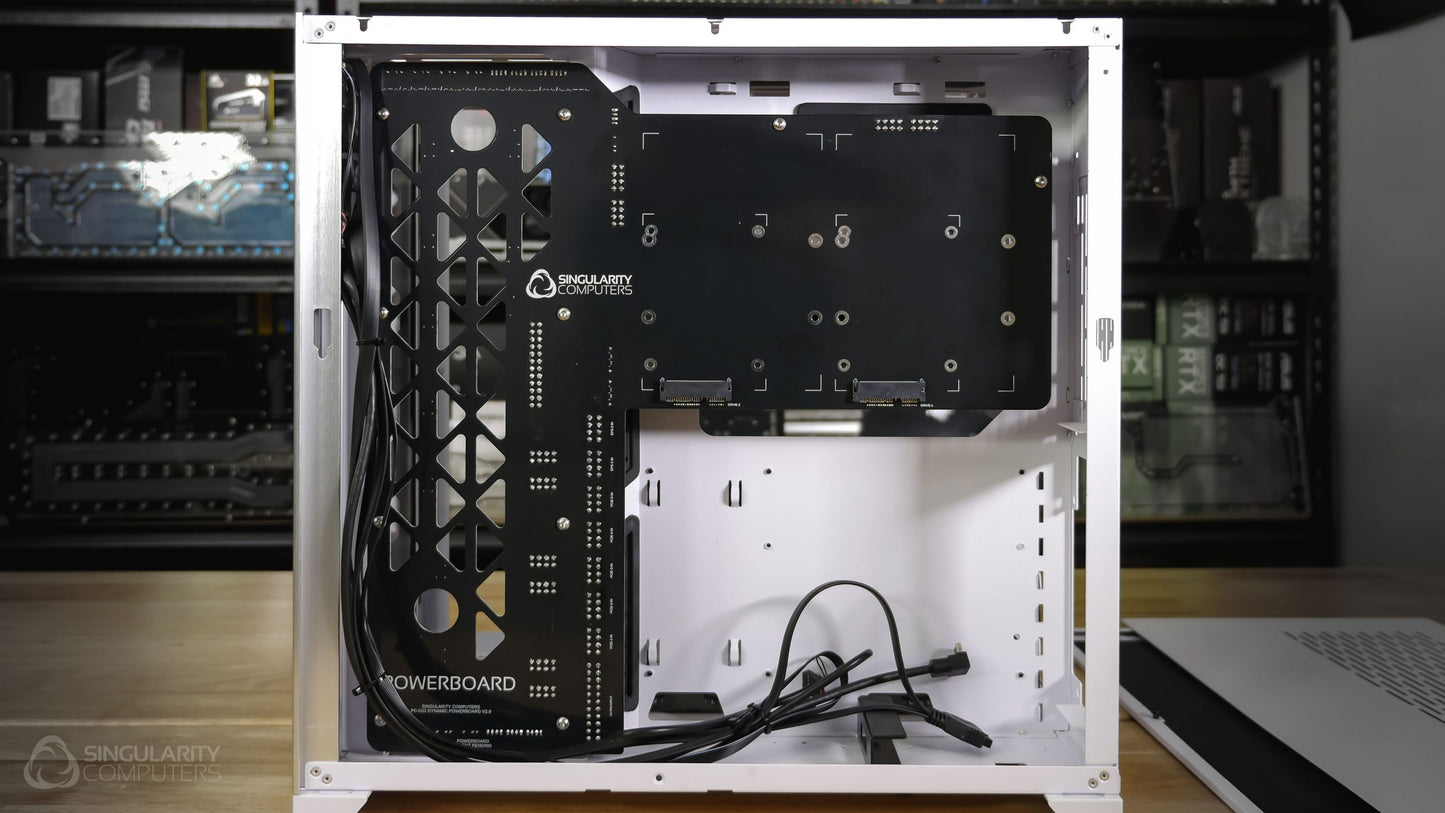

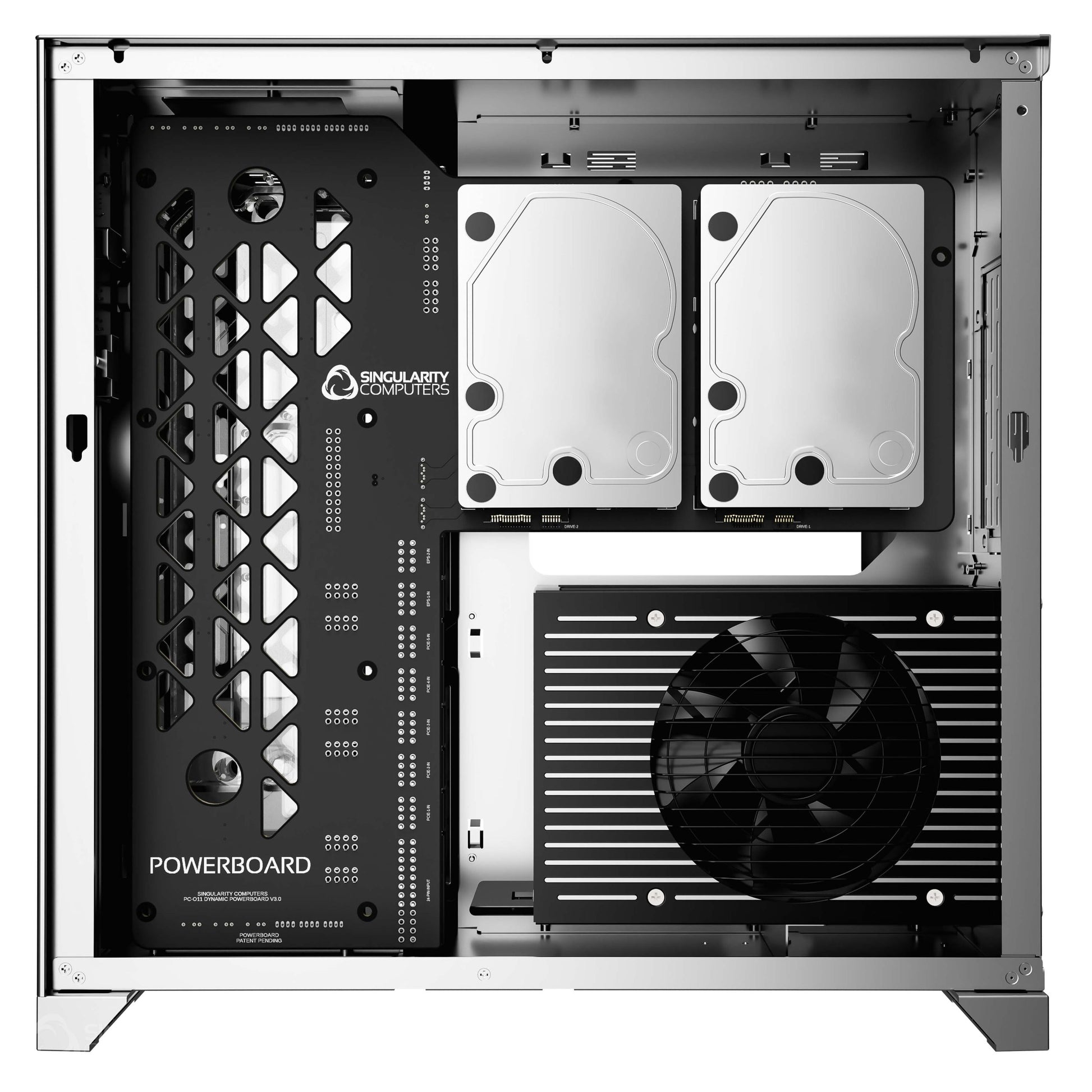

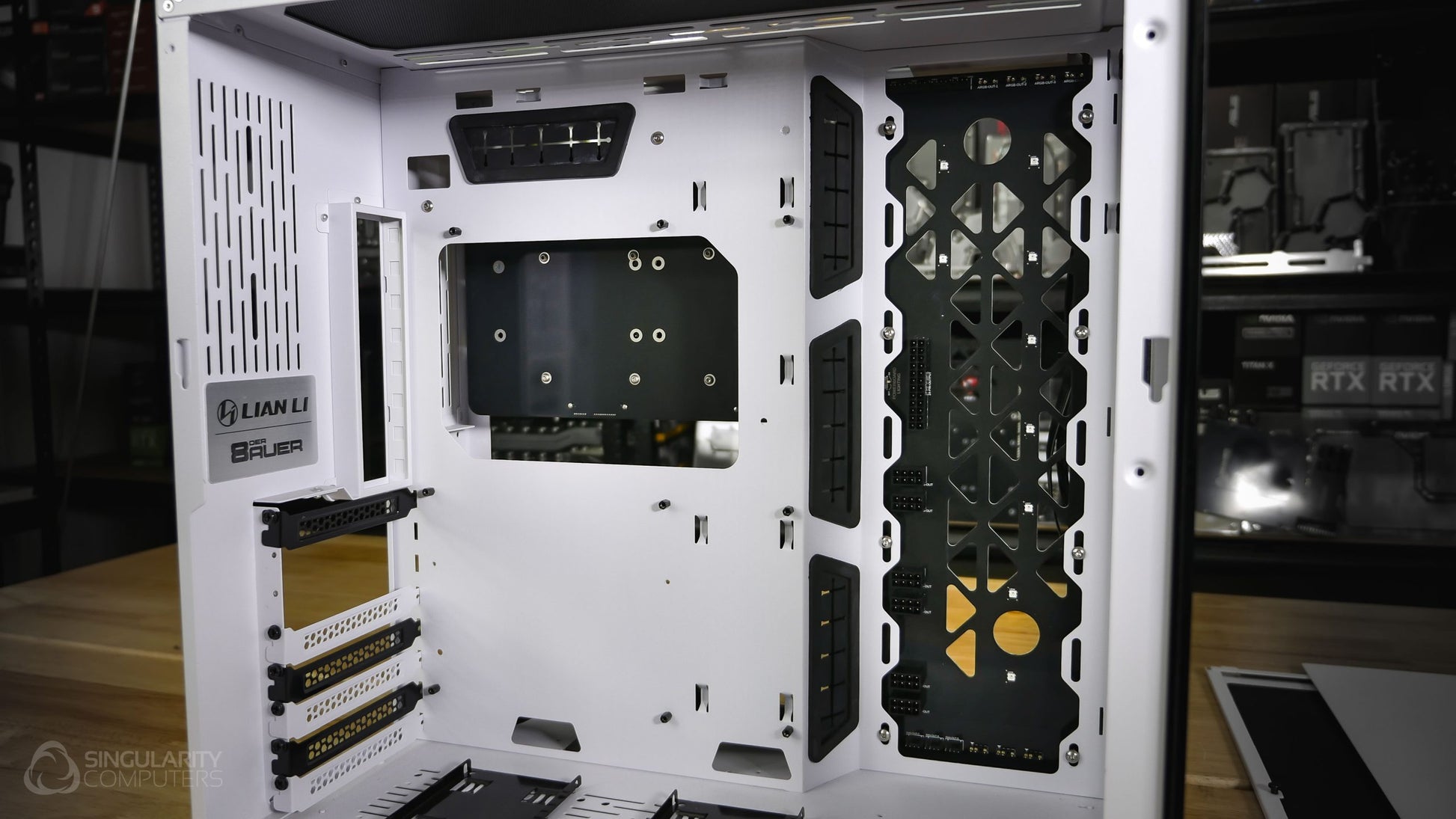

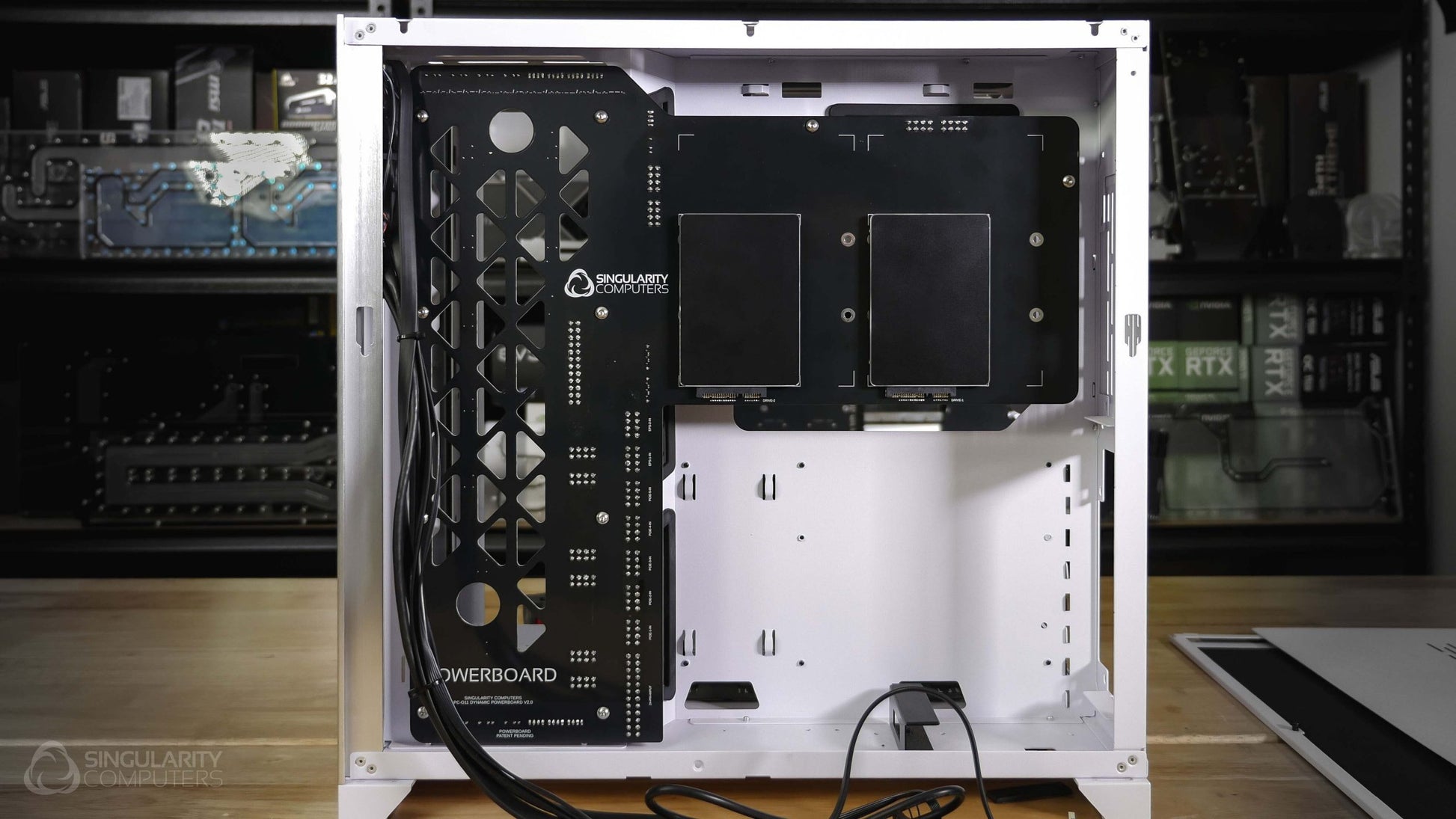

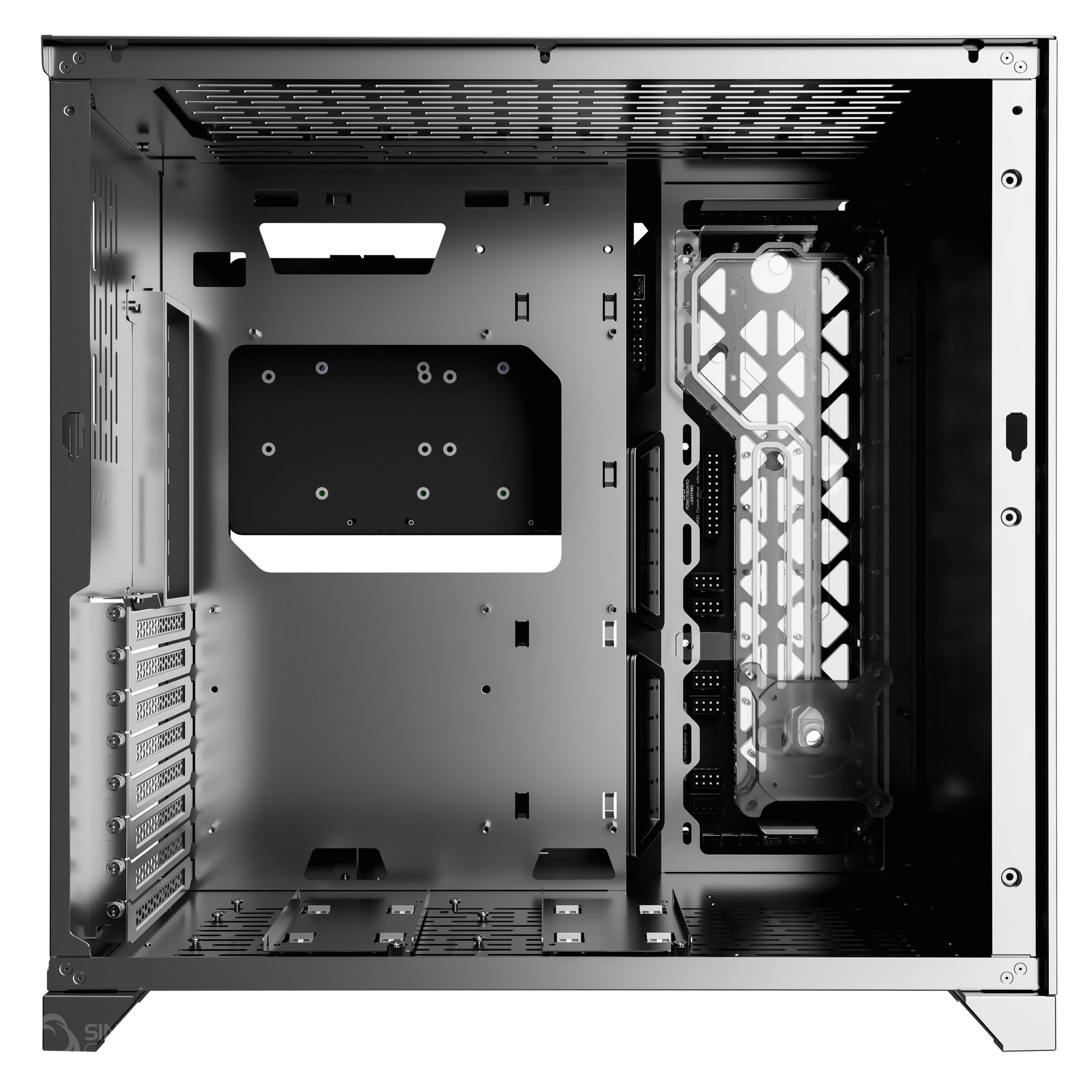

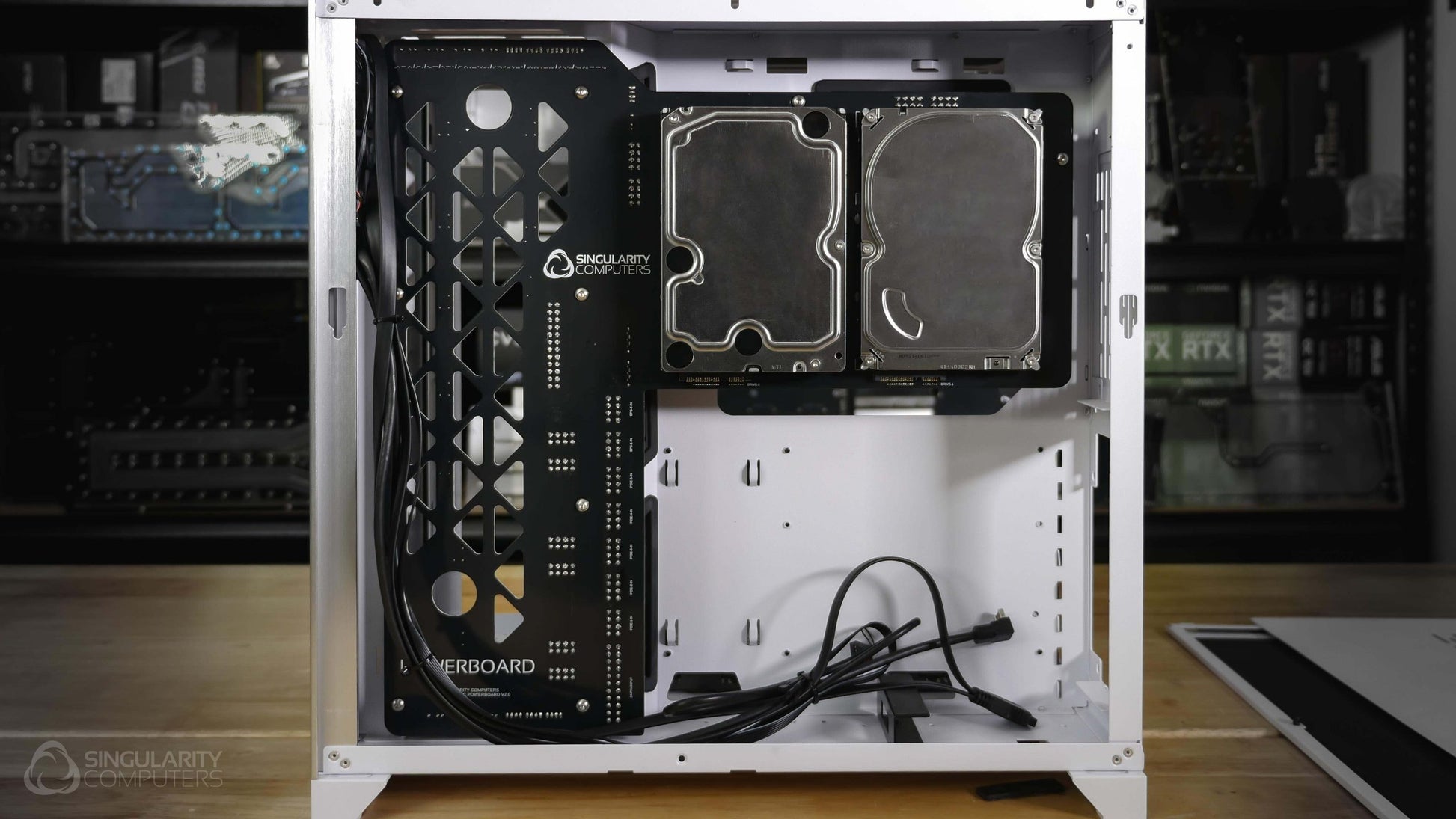

The PowerBoard PC-O11D fits onto the rear side of the motherboard tray in the Lian Li PC-O11D. It integrates 2x 2.5” or 3.5” drive mounting positions, ARGB and PWM hubs. The Distribution Plate is a Reservoir Combination which comes included with a DDC Pump Top. The DDC Pump Top can be changed optionally to a D5 Pump Top available separately, but this will block the lower radiator mounting position.

Note: Motherboards with 90 degree 24pin, EPS and/or 6pin Supplementary connections will require PowerBoard Adaptors available upon request.

Please note that this is a consignment item and will be shipped from the local supplier.

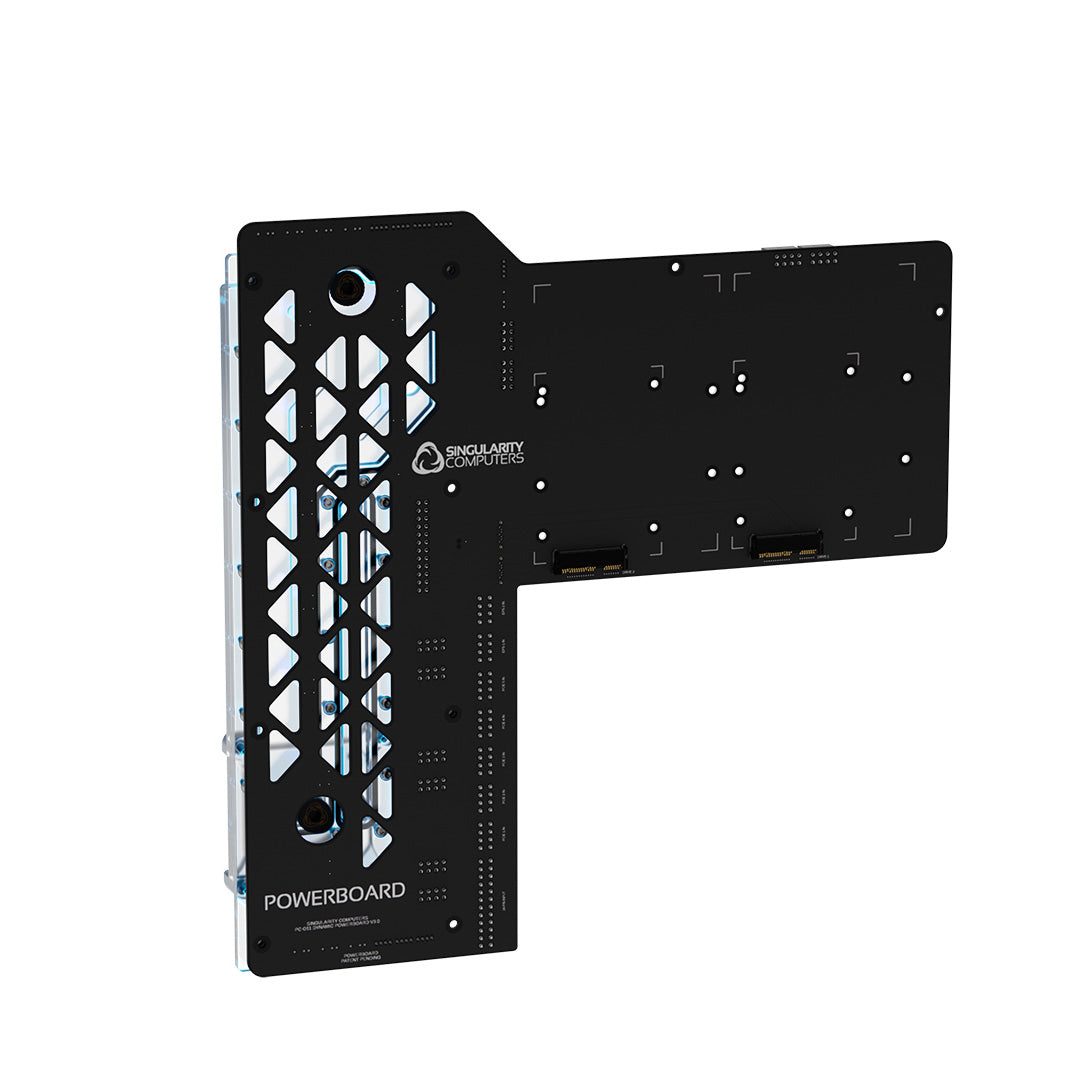

Singularity Computers PowerBoard:
The PowerBoard is essentially a distribution plate for cables. It integrates and routes the 24pin, EPS and PCIE cables very close to the components so that standardized short cables can be used. This means that cable management is no longer necessary. It integrates ARGB and PWM hubs and on some PowerBoards SATA. The PowerBoard also has integrated ARGB LEDs placed to light up the PowerBoard and/or surrounding components.

Specifications

Connections:
24pin Input & Output.
8pin EPS Inputs x2 Outputs x4. (A total of 7 EPS and PCIE outputs can be used at the same time).
8pin PCIE Inputs x5 Outputs x6. (A total of 7 EPS and PCIE outputs can be used at the same time).
PWM Inputs x1 Outputs x7.
ARGB Inputs x1 Outputs x7.
SATA Data Inputs x2 Outputs x2.

Specifications & Included Items:
Singularity Computers PowerBoard PC-O11D.
Product Weight: 0.5kg.
Product Dimensions: H: 395mm x W: 391.5mm x Thickness: 16mm.
Packaged Dimensions: W: 395mm x L: 430mm x H: 40mm.
Packaged Weight: 1kg.
Fasteners:
6-32 x 0.25” Button Head Hex Black Steel: x8.
M3 x 4mm Button Head Hex Stainless Steel: x8.
M4 x 12mm Button Head Hex Stainless Steel: x4.
M4 x 6mm Button Head Hex Stainless Steel: x20.
M4 Female Stand Off Brass 10mm x 8.
M4 Female Stand Off Brass 50mm x 2.
M4 Male Threaded Standoff Brass 6.5mm (F) 10mm: x4.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3. 18AWG Black Headshrinkless Sleeve.
PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1.

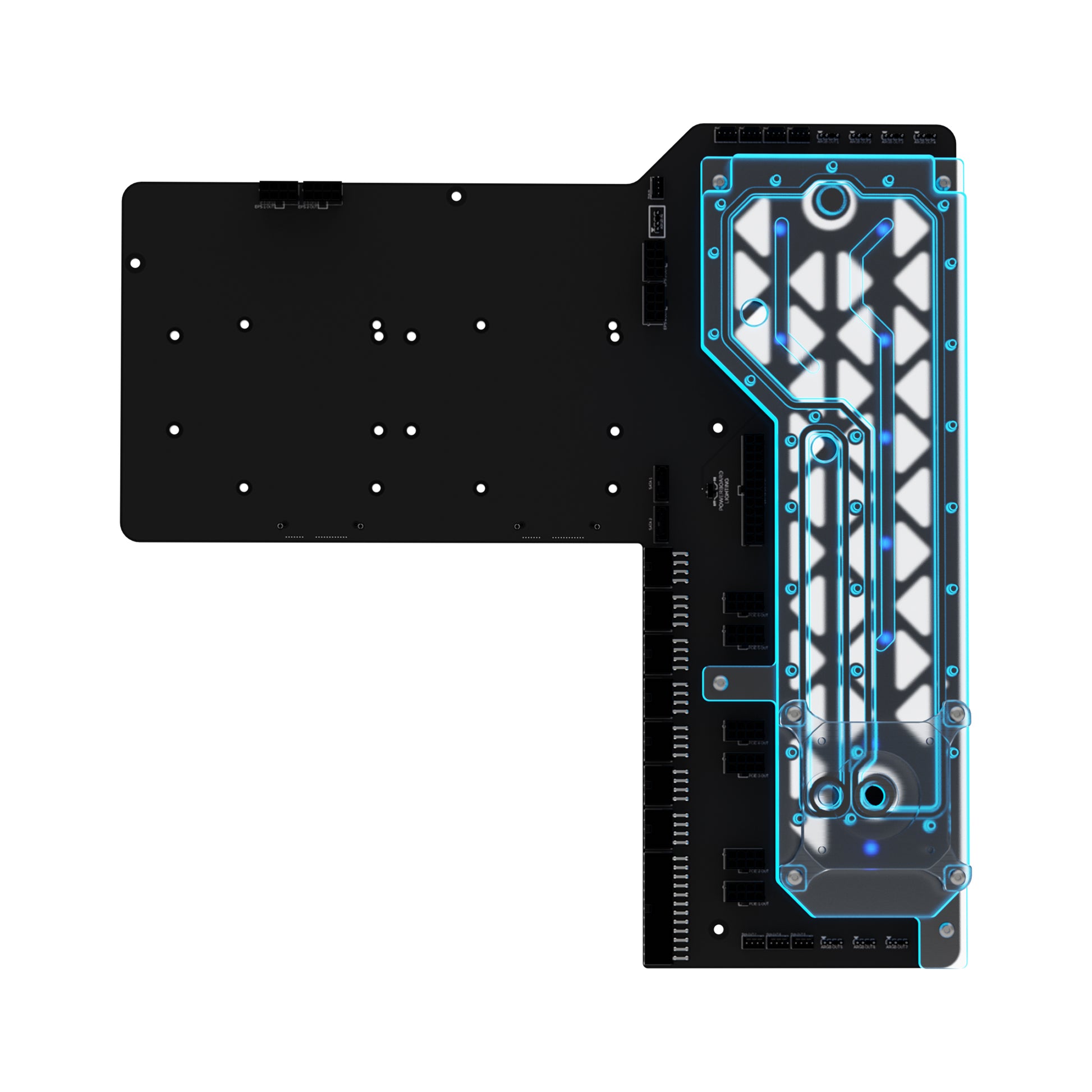

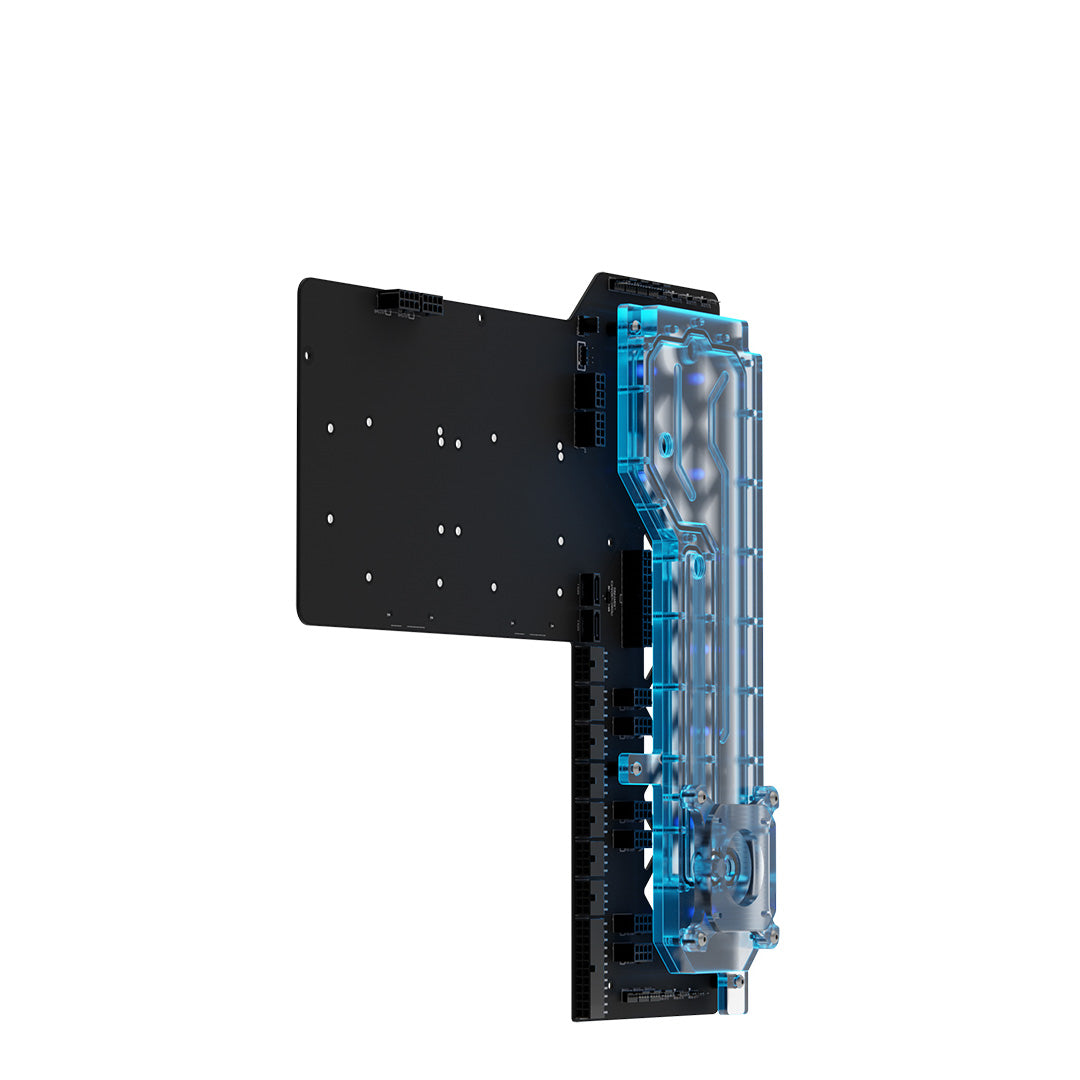

Singularity Computers PowerBoard PC-O11D Distribution Plate. CNC Machined Clear Cast Acrylic.
Integrated DDC Pump Top Included. Can be changed optionally to a D5 Pump Top available separately.
Product Weight: 2kg.
Packaged Dimensions: H: 300mm x W: 300mm x D: 100mm.
Packaged Weight: 2.5kg.

Installation:
Installs onto the rear side of the motherboard tray, please refer to user manual and documentation.

This is a consignment item which will be shipped directly from Singularity Computers
