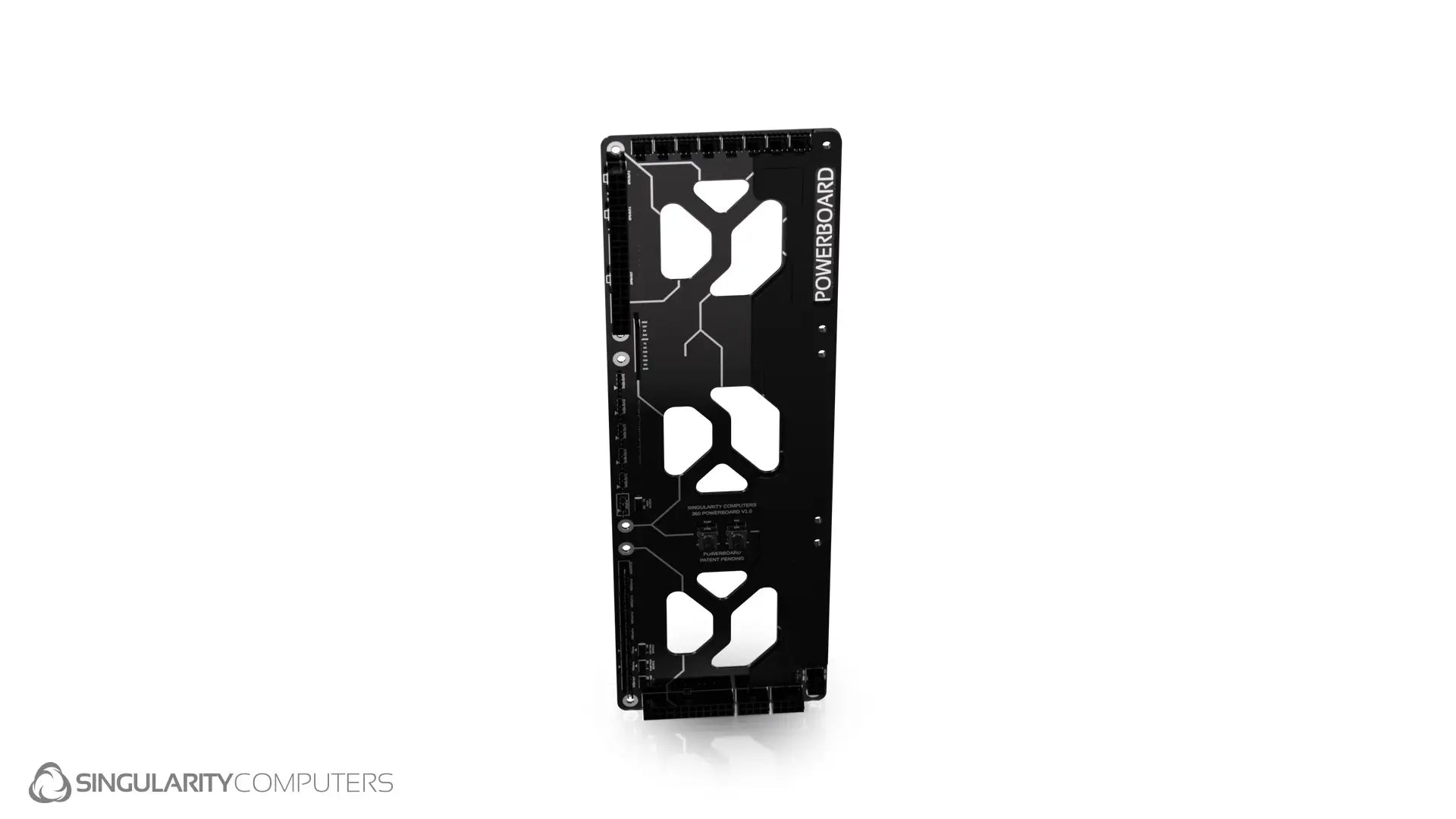

Singularity Computers PowerBoard Distroplate Universal 360mm
Singularity Computers PowerBoard Distroplate Universal 360mm
Couldn't load pickup availability
Installs onto any 360mm radiator mount or radiator. It is designed for cases which have a 360mm radiator mount to the right of the motherboard including Lian Li O11 (most versions), Hyte Y60 and Y70, NZXT H5, H6 and H9, Antec Constellation, Corsair 3500X and 6500 series, Thermaltake Core series and many more.
This product will be ordered in from the supplier
Please specify in your order comments if you require either of the following mounts
6-32 Radiator fasteners
M3 Radiator Fasteners
M4 Radiator Fasteners
Standard Mounts (for use with a standard radiator mount)

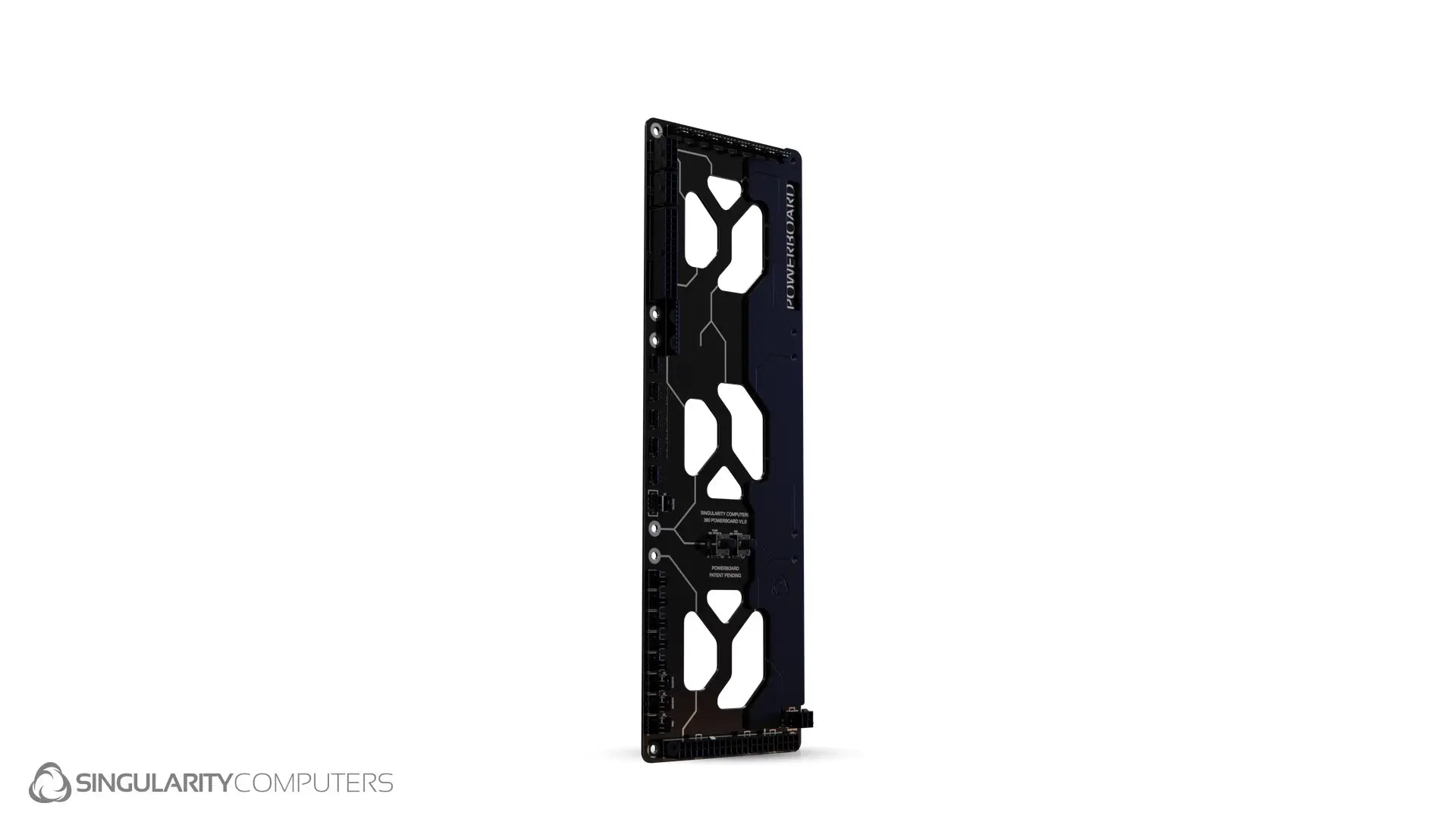

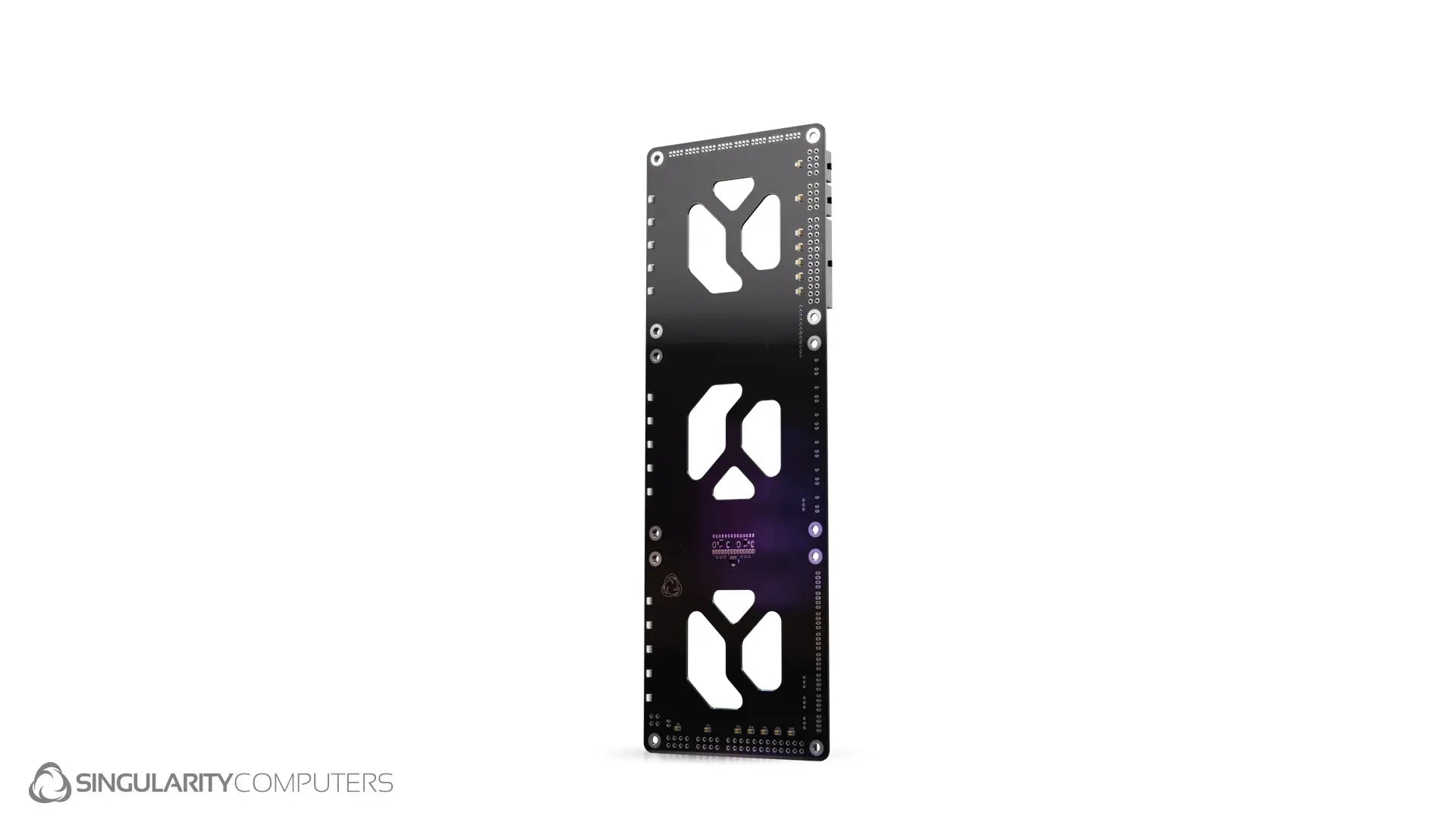

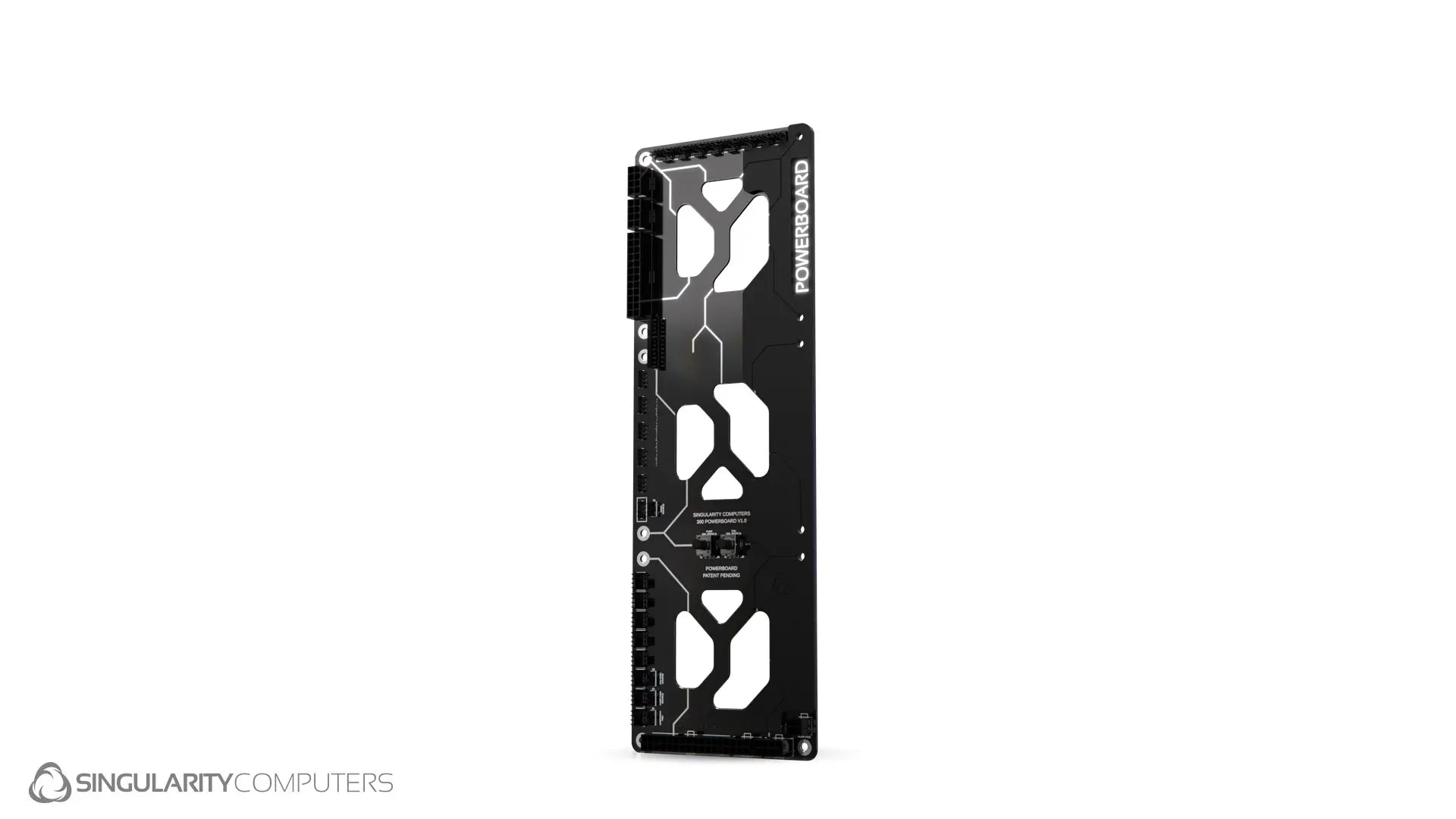

The PowerBoard Universal 360mm has the 24pin and 2x 8pin EPS connections integrated and comes included with cables. It has an inbuilt PWM hub with one zone for the fans with 13 outputs and one zone for the pump with one output. It has adjustable RPM curves based on coolant temperature. It also has an ARGB hub with x5 output connections with 15 ARGB LEDs built in to light up the right side of the PowerBoard. It can be installed onto a 360mm radiator mount or radiator.
Introducing the Singularity Computers PowerBoard (US Patent Pending #547249821), a completely new take on computer cables and cable management. The idea first came about during the development of Singularity Computer's first case Spectre 1.0. Singularity Computer were looking for a far more advanced method of integrating cables and cable management. The PowerBoard is essentially a distribution plate for cables. It eliminates the need for cable management, to integrate components into a single clean unit reducing clutter, to create something different which will contribute to a unique build!
Specifications
PowerBoard Universal 360mm (selectable above on its own or with the PowerBoard)
Cables: PowerBoard Linking Cables: 18AWG wire black sleeved: 24pin x1. 8pin EPS x2. PWM Fan Linking Cable Black Sleeved 50cm x2. RGB Linking Cable Black 50cm x1.
Electronics Integration:
Inputs: 24pin x1. 8pin EPS x2. PWM x2. ARGB x1.
Outputs: 24pin x1. 8pin EPS x2. 4pin ATX PUMP x1. PWM x13. ARGB x5. ARGB built in LEDs x15. 12Pin header. PSU jumpstart switch. Control source switch x3. Potentiometers x2.
Fasteners: Stainless steel.
Manufacturing Process: PCB. Laser.
Materials: PCB. Satin Black Acrylic.
PowerBoard Universal 360mm Distribution Plate (selectable above on its own or with the PowerBoard)
Lighting: Integrated ARGB PCB with 30cm black cable.
Fasteners: Stainless Steel.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Product Weight & Dimensions:
PowerBoard Universal 360mm: L: 360mm x W: 120mm x H: 20mm. 0.3kg.
Packaged: L: 400mm x W: 150mm x H: 50mm. 0.5kg.
PowerBoard Universal 360mm & DDC Distribution Plate: L: 360mm x W: 120mm x H: 26mm. 1.2kg.
Packaged: L: 400mm x W: 150mm x H: 50mm. 1.5kg.

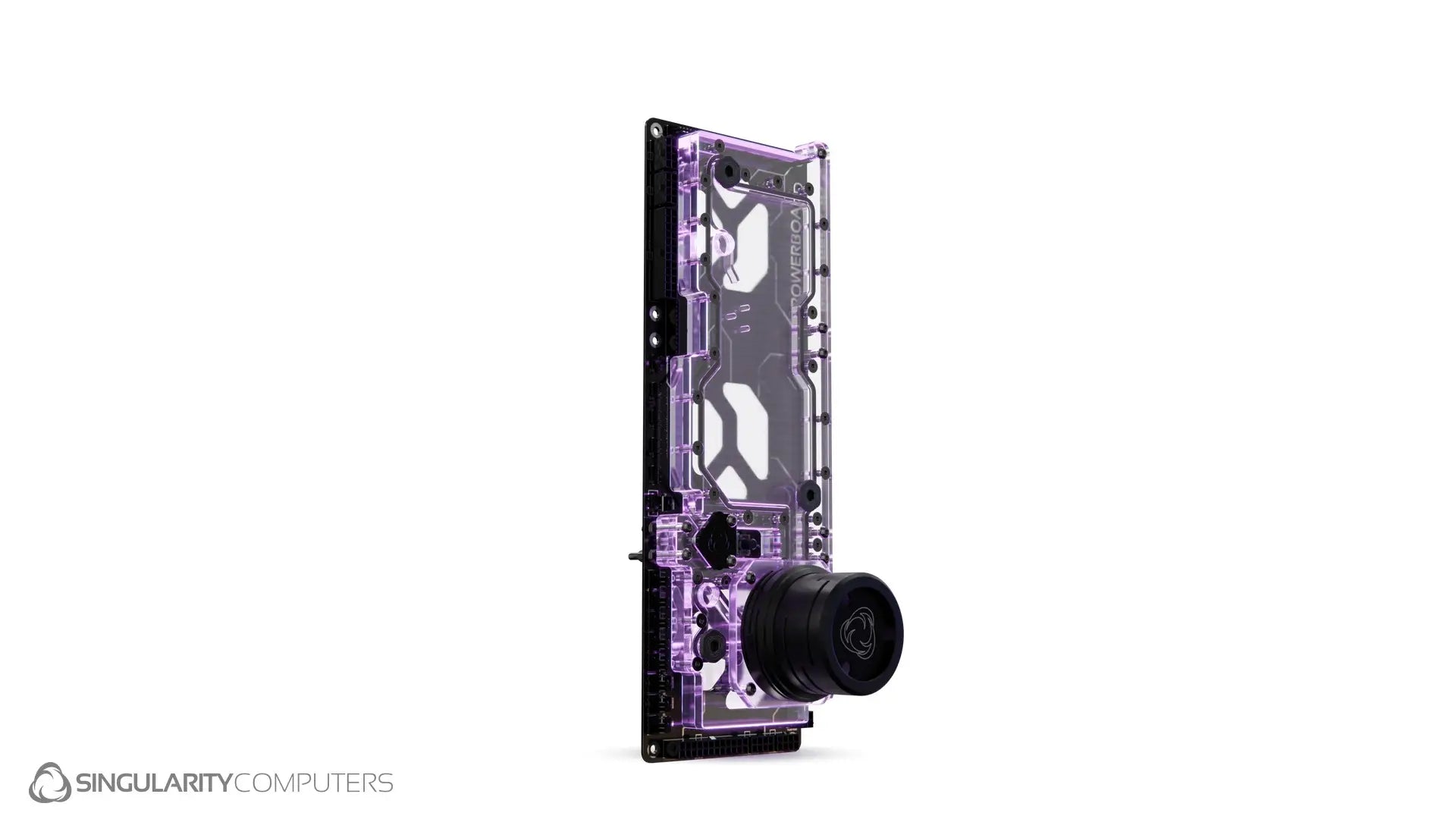

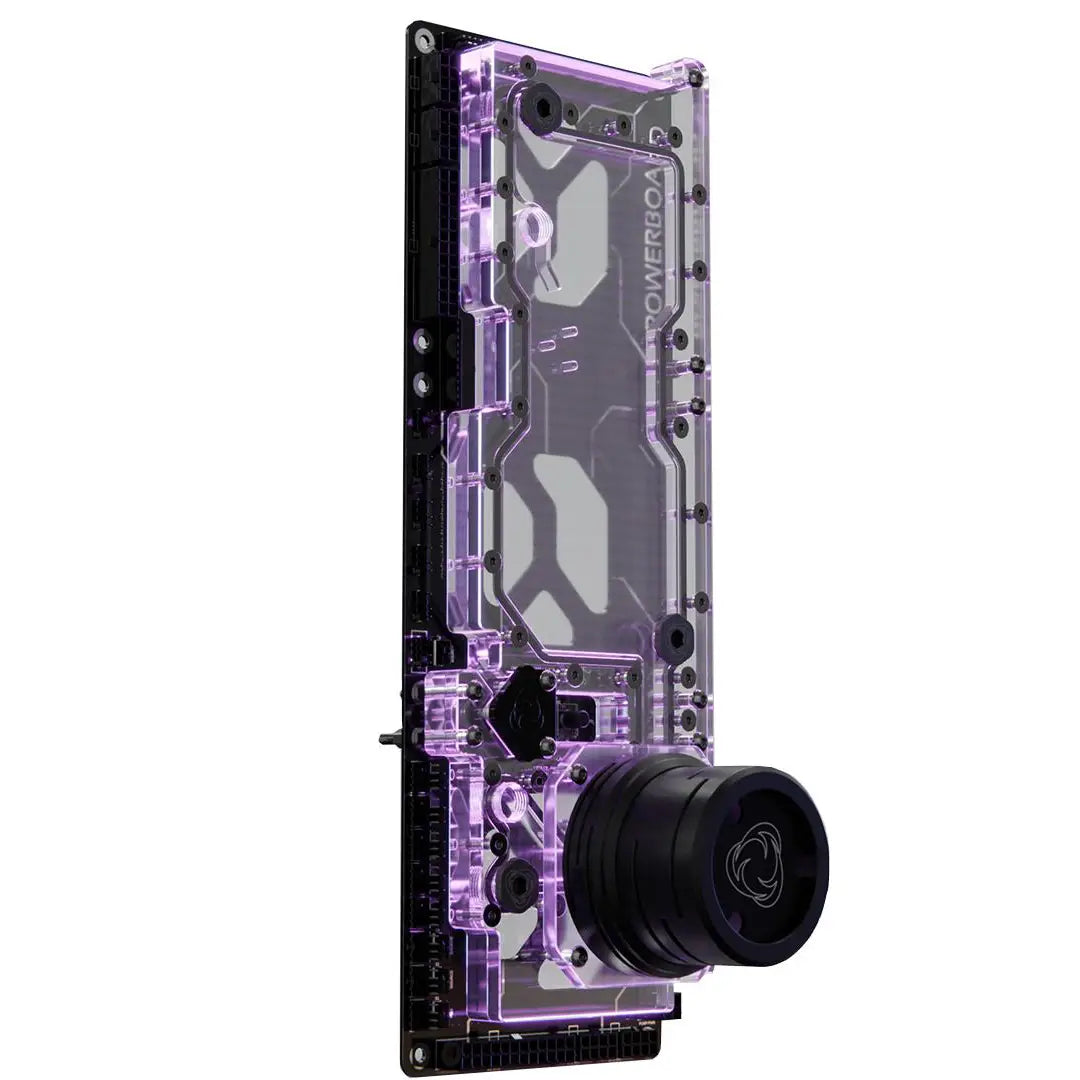

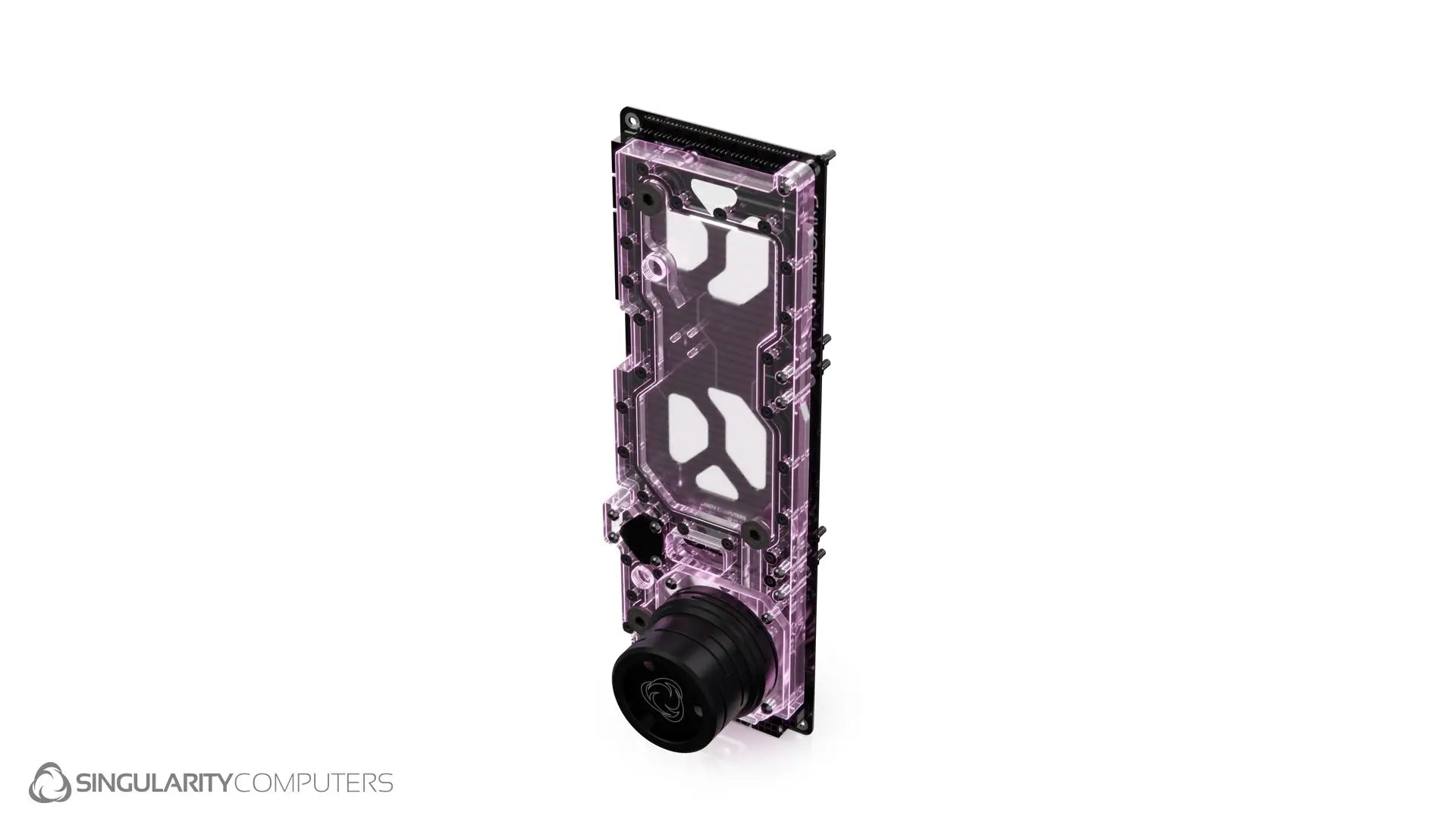

PowerBoard Universal 360mm & D5 Distribution Plate: L: 360mm x W: 120mm x H: 38mm. 1.5kg.
Packaged: L: 400mm x W: 150mm x H: 50mm. 1.8kg.
Features
The PowerBoard is a PCB integrating 24pin, EPS, PWM and ARGB Hubs, Fan and Pump speed control, 12pin header for a FanGuardian, switches and a dedicated header for powering a pump. The PowerBoard has x15 ARGB LEDs positioned under the right side of the PCB. The PSU Jumpstart switch allows to turn on the power supply and the pump without booting the motherboard, this way the loop can be filled easier, especially when the pump speed is lowered with the potentiometer. There is a source switch for fan, pump and ARGB headers which allows for an easy choice between motherboard and PowerBoard built-in PWM control.
Hubs: PWM Fan Hubs x1 with 13x outputs. Pump input x1 and output x1. The fan and pump output have coolant temperature-based PWM control or can be switched to motherboard PWM control. The built-in PWM control on the PowerBoard is independent of the motherboard and no software is needed.
PWM Control: 2x potentiometers to set the minimum PWM speed.
Temperature sensor inputs: x1. Compatible with any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
Essentially the PowerBoard is a distribution plate for cables also integrating other features and functions. It is a new method for cables allowing standardization of cable lengths and making cable management almost unnecessary.

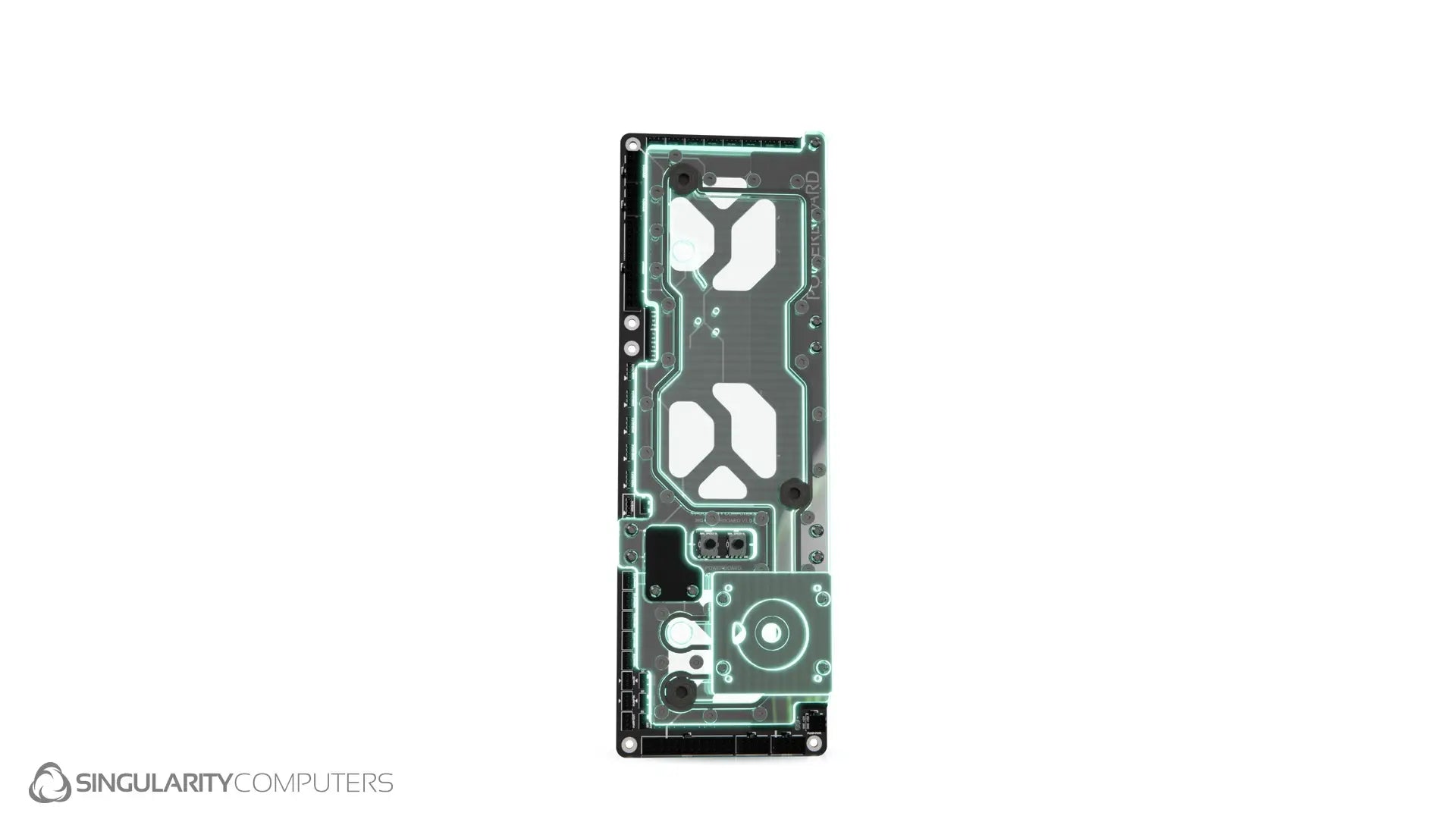

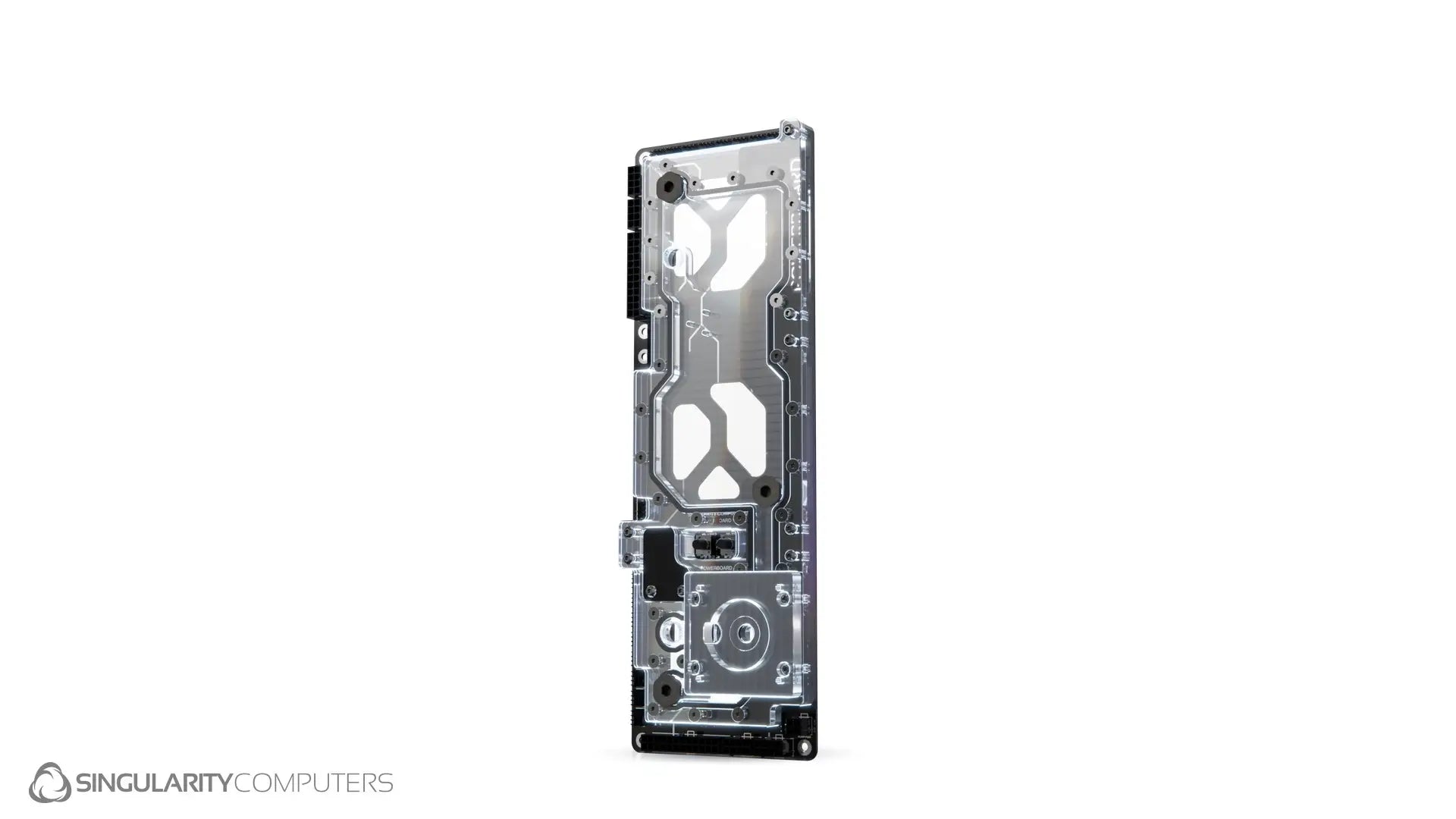

The distribution plate adds a DDC reservoir combination to the PowerBoard and has an inlet, outlet, fill and drain port. The reservoir is designed to make filling and draining as easy as possible.
Installation:
Installs onto any 360mm radiator mount or radiator (select radiator fastener options above). The distribution plate installs onto the PowerBoard. It is designed for the Lian Li O11 cases which have a radiator mount to the right of the motherboard and cases with a similar layout such as the Hyte Y60 and Y70, NZXT H9 etc. please refer to user manual and documentation.
