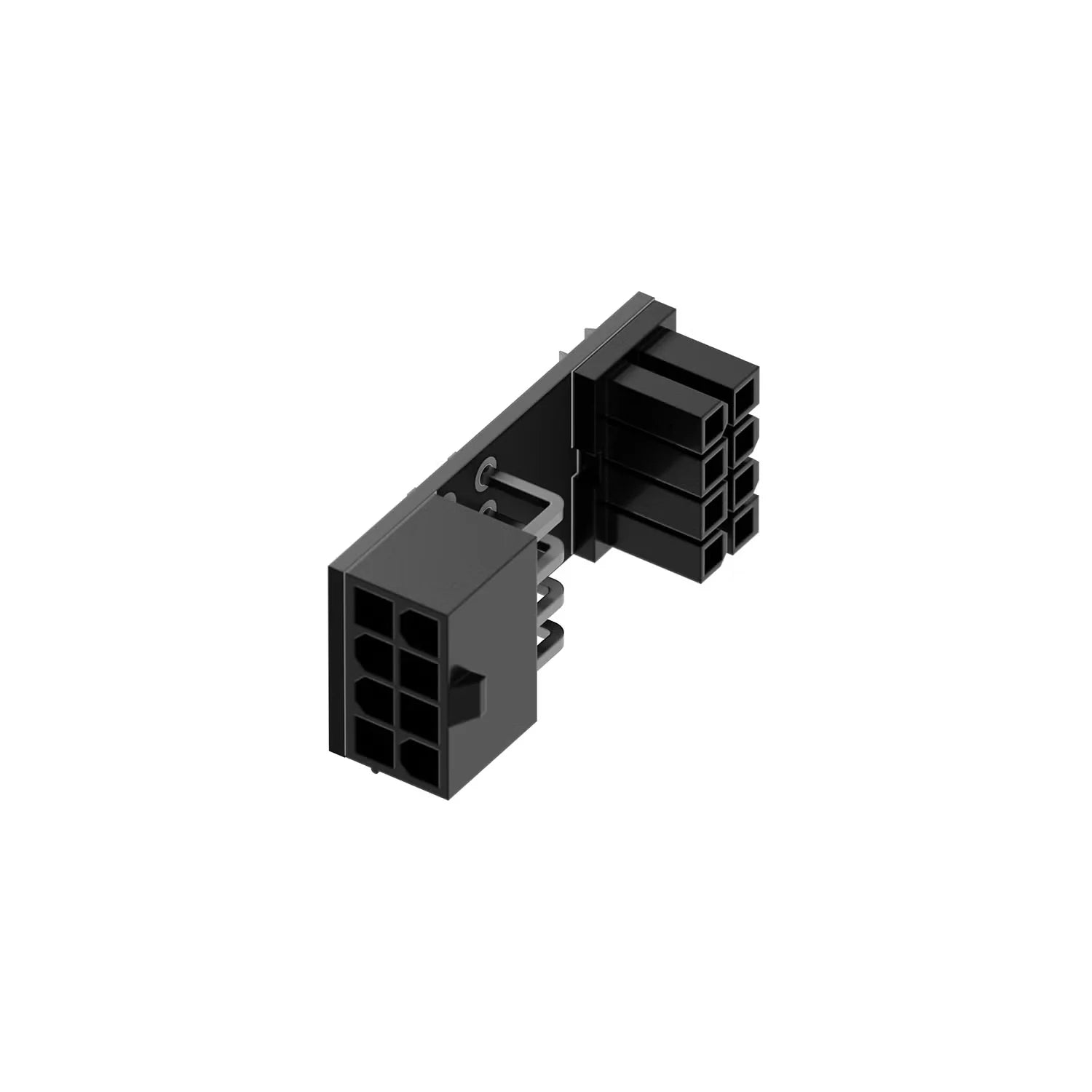

Singularity Computers Shift Motherboard 8pin EPS 90 Degree Adaptor

Singularity Computers Shift adaptors are designed for use with the PowerBoard, but can be used with any components or cables. The PCBs are custom designed with high quality components and a dual layer PCB. The PCB and connectors are black, and the PCBs have white logos and labelling. SC Shift Adaptors provide a range of options for cleanly routing your cables.
Shift 180 Degree PCIE adaptors are designed to be used on your GPU to achieve cleaner cable runs. Shift 90 Degree adaptors are designed to be used with the PowerBoard and motherboards with 90-degree 24pin, 8pin EPS and 6pin PCIE connections. They solve the problem of the connectors being too close together to make a clean connection with sleeved cables, and the problem of the 180-degree flipped pin out.

Specifications & Included Items:
Shift Motherboard 8pin EPS 90 Degree Adaptor. Black PCB and Connectors with white logos and printing.
Dimensions: H: 15mm x W: 19mm x L: 34mm.
Weight: 0.01kg.
Packaged Dimensions: H: 15mm x W: 45mm x L: 90mm.
Packaged Weight: 0.01kg.

Installation:
Install onto your motherboard 90-degree 8pin EPS connector to improve cable routing from the PowerBoard to your motherboard.

This is a consignment item which will be shipped directly from Singularity Computers
