Watercool
Watercool Heatkiller Tube D5 Standard Top with Xylem D5 Pump Combo
Watercool Heatkiller Tube D5 Standard Top with Xylem D5 Pump Combo
Couldn't load pickup availability
Now available as a bundle to simplify your selection when adding a pump and reservoir to your rig. Also compatible with our universal 120mm mount

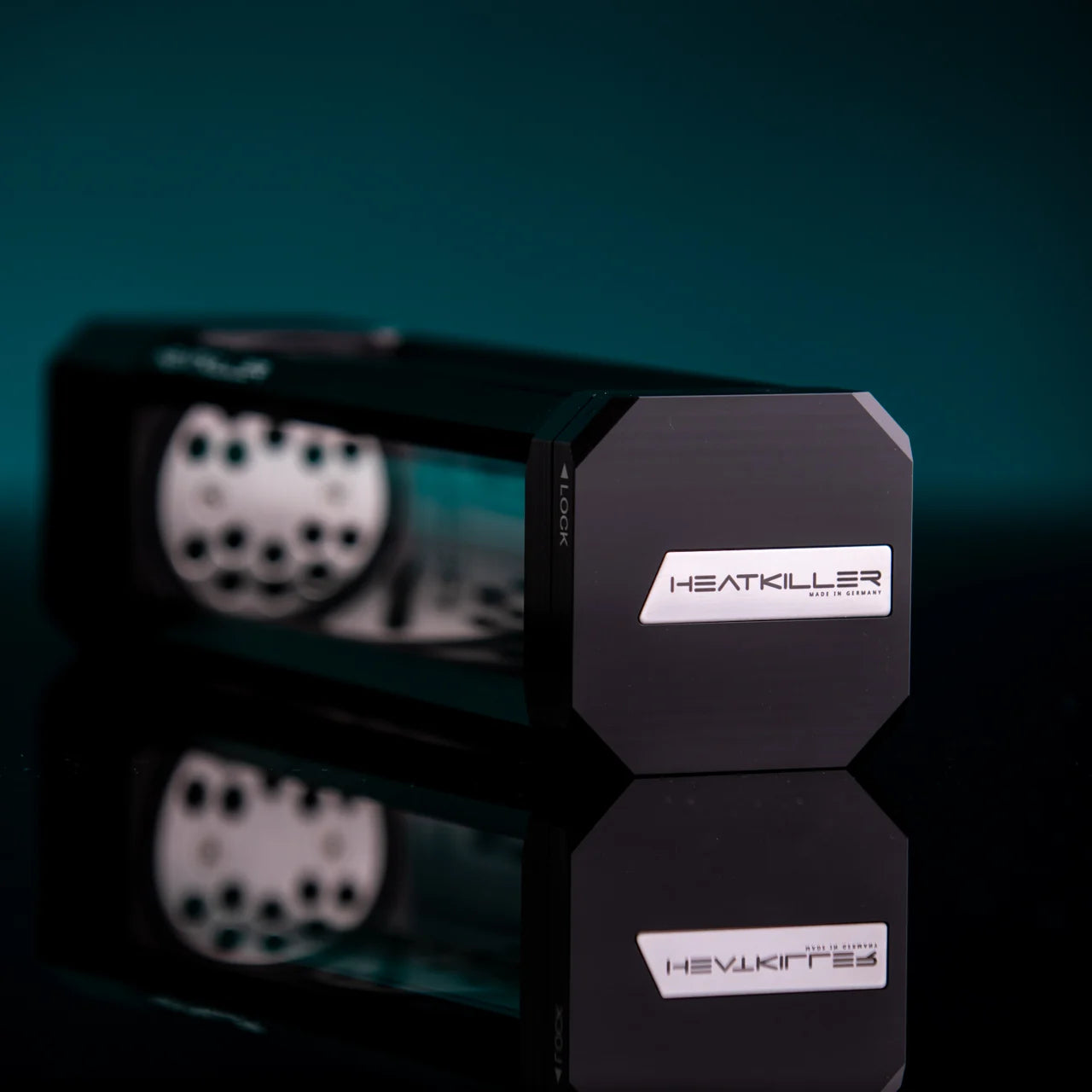

Images pictured with the Heatkiller Tube 150 and 200 with the Aquacomputer D5 NEXT as an example. The tall profile shots have the Multiport lids for reference.
Borosilicate glass tube
With borosilicate glass, Watercool rely on the best material currently available for the construction of expansion tanks. It offers high chemical and thermal resistance, low thermal expansion and scratch-resistant properties.
Different filling volumes and flow-optimized for the D5 pump
Watercool have manufactured Heatkiller® Tube in different sizes. This offers the possibility of being visually perfectly staged for all applications. The sizes 150mm and 200mm cover everything from mini-ITX to the towering rigs.
As these Heatkiller Tubes are optimized versions for the popular D5 pumps from Xylem or Laing, you can attach your favourite D5 pump directly to these reservoirs. The pump is then able to draw water directly out of the expansion tank, which ensures higher flow rates and less noise thanks to the flow-optimized design.
Anti-cyclone effect
With Watercool's newly developed inlay, the anti-cyclone effect has been eliminated. In other reservoirs, a "whirlpool" is sometimes created which can reduce the performance of your cooling loop and increase noise.
Made in Germany
The production takes place with the greatest care on Watercool's ultra-modern CNC machine park in Waren-Müritz. Many work steps are carried out by hand and each product is brought to perfection according to the four-eyes principle. Made in Germany as you would imagine.
Reservoir Specifications:
| Tube 150 | Tube 200 | Tube 100 | |
| Material upper part | POM | ||
| Material struts | Aluminium Black Anodised | ||
| Material tube | Borosilicate Glass | ||
| Material lower part | POM | ||
| Material inlay | Stainless Steel | ||
| Dimensions (L x W x H) incl standard D5 pump | 70x70x243 | 70x70x293 | 70x70x193 |
| Tube length (mm) | 150 | 200 | 100 |
| Tube diameter (mm) | 65 | 65 | 65 |
| Capacity: approx. (ml) | 375 | 500 | 250 |
| Weight: approx. (gm) | 790 | 960 | 650 |
| Seals: NBR, VMQ | NBR, VMQ | ||
| Connection thread: | 2x G ¼ inch (DIN ISO 228-1) | ||
Pump Specifications
| Xylem Vario | Xylem PWM | D5 Next | |
| Dimensions (L x W x H) | 65x65x57 | 65x65x57 | 66x65x78mm (without decouplings) |
| Rated voltage | 12V DC | 12V DC | 12v |
| Power consumption | 35 | 30 | 65 (inc fan and RGBpx Output) |
| Pressure head at 12 V | 3.7 | 3.7 | 3.7 |
| Max. flow rate | 1500 | 1500 | 1500 |
| Max. system temperature | 60°C | 60°C | 60°C |
| Max. system pressure | 1.5 | 1.5 | 1.5 |
| Power supply: 4Pin Molex | 4 Pin Molex | 4 Pin Molex | SATA |
| Rotational speed monitoring | Yes via 3 pin | Yes via 4pin PWM | Yes, via internal USB |
| PWM | No | Yes | No |
| OLED Display | No | No | Yes |
| Fan control | No | No | Yes |
| Temperature monitoring | No | No | Yes |
| Flow meter | No | No | Yes (digital) |
Scope of delivery:
Choice of HEATKILLER® Tube D5 in 100, 150mm or 200mm heights
Choice of D5 pump in Vario, PWM or Aquacomputer Next Flavours
1 set of Watercool Basic Mount arms
Assembly instructions
Note: images only show assembly as an example, final appearance may vary depending on choice of pump or assembly. Images are pictured with the Aquacomputer D5 NEXT
